頻率：26MHZ
尺寸：2.00x1.60mm
6G轉換器晶振 FC1BAEBEI26.0-T1 美國福克斯石英晶體，尺寸2.00x1.60mm，頻率26MHZ，尺寸2.00x1.60mm，頻率26MHZ，FOX無源晶振，歐美進口晶振，美國貼片晶振，2016mm高品質晶振，石英晶振，石英SMD晶振，無源貼片晶振，無線晶體，貼片晶振，通信晶振，石英無源晶體，輕薄型晶體，水晶振動子，綠色環保晶振，可穿戴設備晶振，便攜式設備晶振，小型設備晶振，儀器設備專用晶體，藍牙音響專用晶振，四腳貼片晶振，無線網絡晶振，6G轉換器晶振，通信模塊石英晶振，具有超高的可靠性能以及穩定性能。
無源晶體產品被廣泛用于各個領域之中，尤其適合用于可穿戴設備，便攜式設備，小型設備，儀器設備，藍牙音響，無線網絡，6G轉換器，通信應用等領域.6G轉換器晶振 FC1BAEBEI26.0-T1 美國福克斯石英晶體.
6G轉換器晶振 FC1BAEBEI26.0-T1 美國福克斯石英晶體，尺寸2.00x1.60mm，頻率26MHZ，尺寸2.00x1.60mm，頻率26MHZ，FOX無源晶振，歐美進口晶振，美國貼片晶振，2016mm高品質晶振，石英晶振，石英SMD晶振，無源貼片晶振，無線晶體，貼片晶振，通信晶振，石英無源晶體，輕薄型晶體，水晶振動子，綠色環保晶振，可穿戴設備晶振，便攜式設備晶振，小型設備晶振，儀器設備專用晶體，藍牙音響專用晶振，四腳貼片晶振，無線網絡晶振，6G轉換器晶振，通信模塊石英晶振，具有超高的可靠性能以及穩定性能。
無源晶體產品被廣泛用于各個領域之中，尤其適合用于可穿戴設備，便攜式設備，小型設備，儀器設備，藍牙音響，無線網絡，6G轉換器，通信應用等領域.6G轉換器晶振 FC1BAEBEI26.0-T1 美國?？怂故⒕w.

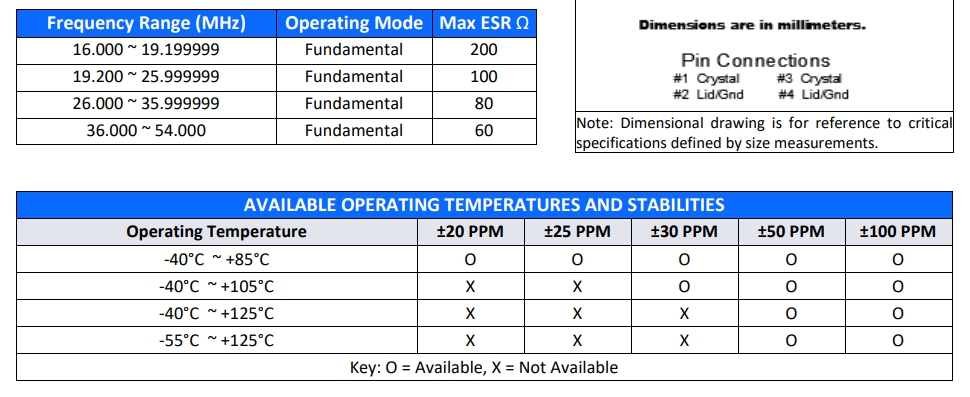

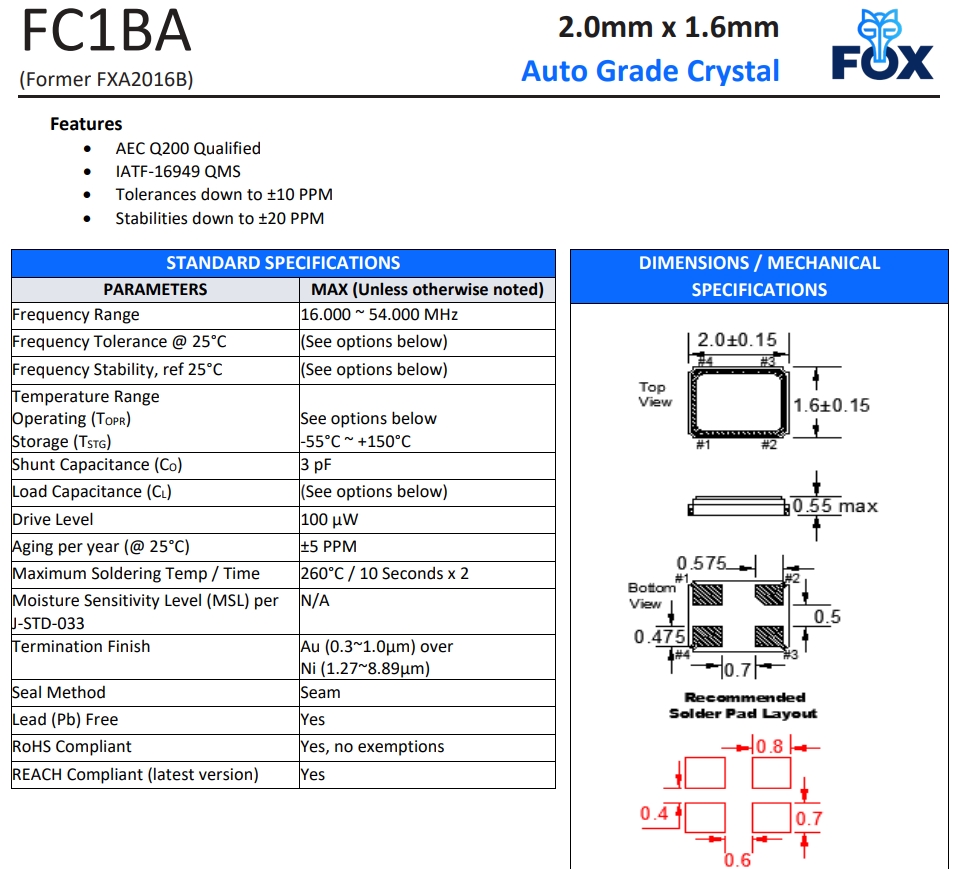

6G轉換器晶振 FC1BAEBEI26.0-T1 美國福克斯石英晶體 參數表
| STANDARD SPECIFICATIONS | |||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||
| Frequency Range | 16.000 ~ 54.000 MHz | ||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
See options below -55°C ~ +150°C |
||||||||||||
| Shunt Capacitance (CO) | 3 pF | ||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||
| Drive Level | 100 µW | ||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | ||||||||||||
| Termination Finish |
Au (0.3~1.0µm) over Ni (1.27~8.89µm) |
||||||||||||
| Seal Method | Seam | ||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||
| RoHS Compliant | Yes, no exemptions | ||||||||||||
| REACH Compliant (latest version) | Yes | ||||||||||||

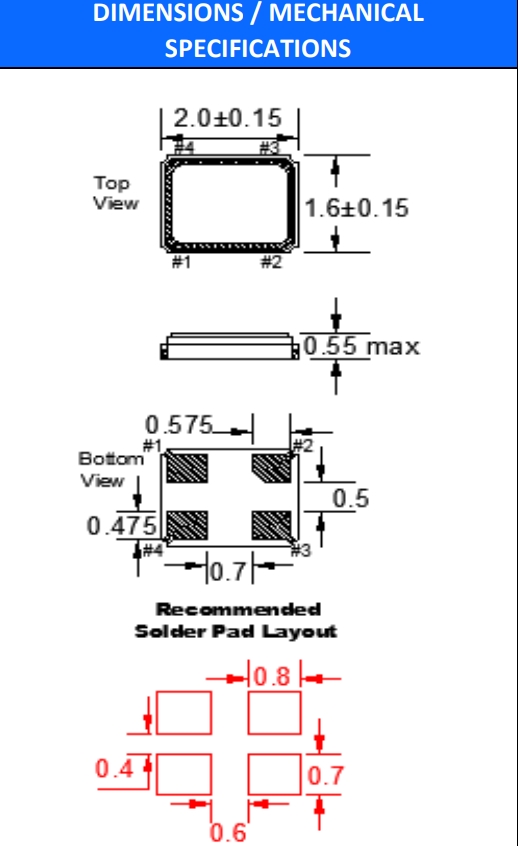

6G轉換器晶振 FC1BAEBEI26.0-T1 美國?？怂故⒕w 尺寸圖
石英晶振產品特征:
符合AEC Q200標準
IATF-16949質量管理系統
公差低至10PPM
穩定性低至20PPM
更多相關福克斯FOX晶振型號
| 原廠編碼 | 廠家 | 型號 | 頻率 | 頻率穩定度 |
| FOXSDLF/160R-20/TR | ?？怂咕д? | HC49SDLF | 16MHz | ±50ppm |
| FOXSDLF/200R-20/TR | 福克斯晶振 | HC49SDLF | 20MHz | ±50ppm |
| FOXSDLF/245FR-20/TR | ?？怂咕д? | HC49SDLF | 24.576MHz | ±50ppm |
| FQ5032B-24.576 | 福克斯晶振 | C5BQ | 24.576MHz | ±30ppm |
| FQ5032B-24.000 | ?？怂咕д? | C5BQ | 24MHz | ±30ppm |
| FQ5032B-16.000 | ?？怂咕д? | C5BQ | 16MHz | ±30ppm |
| FQ5032BR-25.000 | 福克斯晶振 | C5BQ | 25MHz | ±50ppm |
| FQ5032BR-12.000 | ?？怂咕д? | C5BQ | 12MHz | ±50ppm |
| FQ5032BR-20.000 | ?？怂咕д? | C5BQ | 20MHz | ±50ppm |
| FQ5032BR-24.000 | ?？怂咕д? | C5BQ | 24MHz | ±50ppm |
| FQ7050B-10.000 | ?？怂咕д? | C7BQ | 10MHz | ±30ppm |
| FQ7050BR-8.000 | ?？怂咕д? | C7BQ | 8MHz | ±50ppm |
| FQ7050BR-6.000 | ?？怂咕д? | C7BQ | 6MHz | ±50ppm |
| FQ3225B-16.000 | ?？怂咕д? | FQ3225B | 16MHz | ±50ppm |
| FQ3225B-27.000 | ?？怂咕д? | FQ3225B | 27MHz | ±50ppm |
| FQ3225BR-25.000 | ?？怂咕д? | FQ3225B | 25MHz | ±50ppm |
| FQ3225BR-24.000 | ?？怂咕д? | FQ3225B | 24MHz | ±50ppm |
| FQ3225BR-12.000 | 福克斯晶振 | FQ3225B | 12MHz | ±50ppm |
| FQ1045AR-6.000 | 福克斯晶振 | FQ1045A | 6MHz | ±30ppm |
| FQ1045AR-4.000 | ?？怂咕д? | FQ1045A | 4MHz | ±30ppm |
| FQ1045AR-3.6864 | ?？怂咕д? | FQ1045A | 3.6864MHz | ±30ppm |
| FOXSLF/0368S | 福克斯晶振 | HC49SLF | 3.6864MHz | ±50ppm |
| FOXLF120 | 福克斯晶振 | HC49ULF | 12MHz | ±50ppm |
| FOXSDLF/128-20 | 福克斯晶振 | HC49SDLF | 12.288MHz | ±50ppm |
| FOXSDLF/081-20 | ?？怂咕д? | HC49SDLF | 8.192MHz | ±50ppm |
| FOXSDLF/098-20 | 福克斯晶振 | HC49SDLF | 9.8304MHz | ±50ppm |
| FOXSDLF/196-20 | 福克斯晶振 | HC49SDLF | 19.6608MHz | ±50ppm |
| FOXSLF/115 | ?？怂咕д? | HC49SLF | 11.0592MHz | ±50ppm |
| FOXSLF/200 | ?？怂咕д? | HC49SLF | 20MHz | ±50ppm |
| FOXSDLF/0368R-20/TR | ?？怂咕д? | HC49SDLF | 3.6864MHz | ±50ppm |
| FOXSDLF/040R/TR | 福克斯晶振 | HC49SDLF | 4MHz | ±50ppm |
| FOXSDLF/060R-20/TR | 福克斯晶振 | HC49SDLF | 6MHz | ±50ppm |
| FOXSDLF/073R-20/TR | ?？怂咕д? | HC49SDLF | 7.3728MHz | ±50ppm |
| FOXSDLF/100R-20/TR | ?？怂咕д? | HC49SDLF | 10MHz | ±50ppm |
| FOXSDLF/115R-20/TR | ?？怂咕д? | HC49SDLF | 11.0592MHz | ±50ppm |
| FOXSDLF/143R-20/TR | ?？怂咕д? | HC49SDLF | 14.31818MHz | ±50ppm |
| FOXSDLF/240FR-20/TR | ?？怂咕д? | HC49SDLF | 24MHz | ±50ppm |
| FOXSDLF250F-20 | 福克斯晶振 | HC49SDLF | 25MHz | ±50ppm |
| FX252BS-20.000 | 福克斯晶振 | FX252B | 20MHz | ±50ppm |
| FQ5032BR-10.000 | ?？怂咕д? | C5BQ | 10MHz | ±30ppm |
| FQ5032BR-16.000 | ?？怂咕д? | C5BQ | 16MHz | ±50ppm |
| FX532B-10.000 | 福克斯晶振 | FX532B | 10MHz | ±50ppm |
| FQ7050B-11.0592 | 福克斯晶振 | C7BQ | 11.0592MHz | ±30ppm |
| FX425B-16.000 | ?？怂咕д? | FX425B | 16MHz | ±50ppm |
| FQ5032B-19.6608 | ?？怂咕д? | C5BQ | 19.6608MHz | ±30ppm |
| FQ5032B-14.7456 | ?？怂咕д? | C5BQ | 14.7456MHz | ±30ppm |
| FQ5032B-10.000 | ?？怂咕д? | C5BQ | 10MHz | ±30ppm |
| FQ3225B-20.000 | 福克斯晶振 | FQ3225B | 20MHz | ±50ppm |
| FQ3225BR-16.000 | 福克斯晶振 | FQ3225B | 16MHz | ±50ppm |
| FQ3225BR-20.000 | 福克斯晶振 | FQ3225B | 20MHz | ±50ppm |
| FQ1045A-4.9152 | 福克斯晶振 | FQ1045A | 4.9152MHz | ±30ppm |
| 603-12-67 | 福克斯晶振 | FX325BS | 12MHz | ±50ppm |
| 617-24.572675-1 | ?？怂咕д? | FX216B | 24.572675MHZ | ±50ppm |
| FX532B-11.0592 | 福克斯晶振 | FX532B | 11.0592MHz | ±50ppm |
| FX532B-12.000 | 福克斯晶振 | FX532B | 12MHz | ±50ppm |
| FX532B-16.000 | ?？怂咕д? | FX532B | 16MHz | ±50ppm |
| FX532B-20.000 | ?？怂咕д? | FX532B | 20MHz | ±50ppm |
| FX532B-24.000 | ?？怂咕д? | FX532B | 24MHz | ±50ppm |
| FX532B-24.576 | 福克斯晶振 | FX532B | 24.576MHz | ±50ppm |
| FX425B-20.000 | ?？怂咕д? | FX425B | 20MHz | ±50ppm |
| FX425B-24.000 | 福克斯晶振 | FX425B | 24MHz | ±50ppm |
| FX425B-24.576 | ?？怂咕д? | FX425B | 24.576MHz | ±50ppm |
| 217-3.579545-12 | ?？怂?a href="http://www.yancaiwang.com.cn/FOXcrystal.html" title="FOX Crystal" target="_blank">FOX Crystal | FC | 3.579545MHz | ±50ppm |
| 603-25-203 | ?？怂咕д? | FX325BS | 25MHz | ±50ppm |
| FPXLF0368-20 | 福克斯晶振 | FPXLF | 3.6864MHz | ±50ppm |
| FPXLF0368S | ?？怂咕д? | FPXLF | 3.6864MHz | ±50ppm |
| FPXLF036S | ?？怂咕д? | FPXLF | 3.579545MHz | ±50ppm |
| FPXLF040 | 福克斯晶振 | FPXLF | 4MHz | ±50ppm |
| FPXLF049-20 | ?？怂咕д? | FPXLF | 4.9152MHz | ±50ppm |
| FPXLF073-20 | ?？怂咕д? | FPXLF | 7.3728MHz | ±50ppm |
| FPXLF080 | ?？怂咕д? | FPXLF | 8MHz | ±50ppm |
| FPXLF080-20 | ?？怂咕д? | FPXLF | 8MHz | ±50ppm |
| FPXLF100-20 | ?？怂咕д? | FPXLF | 10MHz | ±50ppm |
