QTC7A娛樂設備晶振,QTC7A16.0000FDT1I20M,夸克四腳貼片晶振

頻率：16MHZ

尺寸：7.0×5.0mm

QTC7A娛樂設備晶振,QTC7A16.0000FDT1I20M,夸克四腳貼片晶振，尺寸7.0×5.0mm，頻率16MHZ，德國進口晶振，Quarztechnik石英晶振，無源貼片晶振，SMD晶振，無源石英晶振，石英貼片晶振，水晶振動子，無源晶振，7050mm石英晶振，高質量晶振，貼片無源晶振，高精度晶振，低損耗晶振，低成本晶振，低功耗晶振，低耗能晶振，高密度應用晶振，無線通信晶振，測試設備晶振，汽車應用晶振，便攜式設備晶振，娛樂設備晶振，儀器設備晶振，具有高精度低功耗的特點。

SMD晶振產品可廣泛用于各大應用場景，尤其適合用于娛樂設備，儀器設備，高密度應用，調制解調器、通信和測試設備，PMCIA，無線應用，汽車應用等領域.QTC7A娛樂設備晶振,QTC7A16.0000FDT1I20M,夸克四腳貼片晶振.

訂購熱線：0755-27876201

QTC7A娛樂設備晶振,QTC7A16.0000FDT1I20M,夸克四腳貼片晶振 參數表

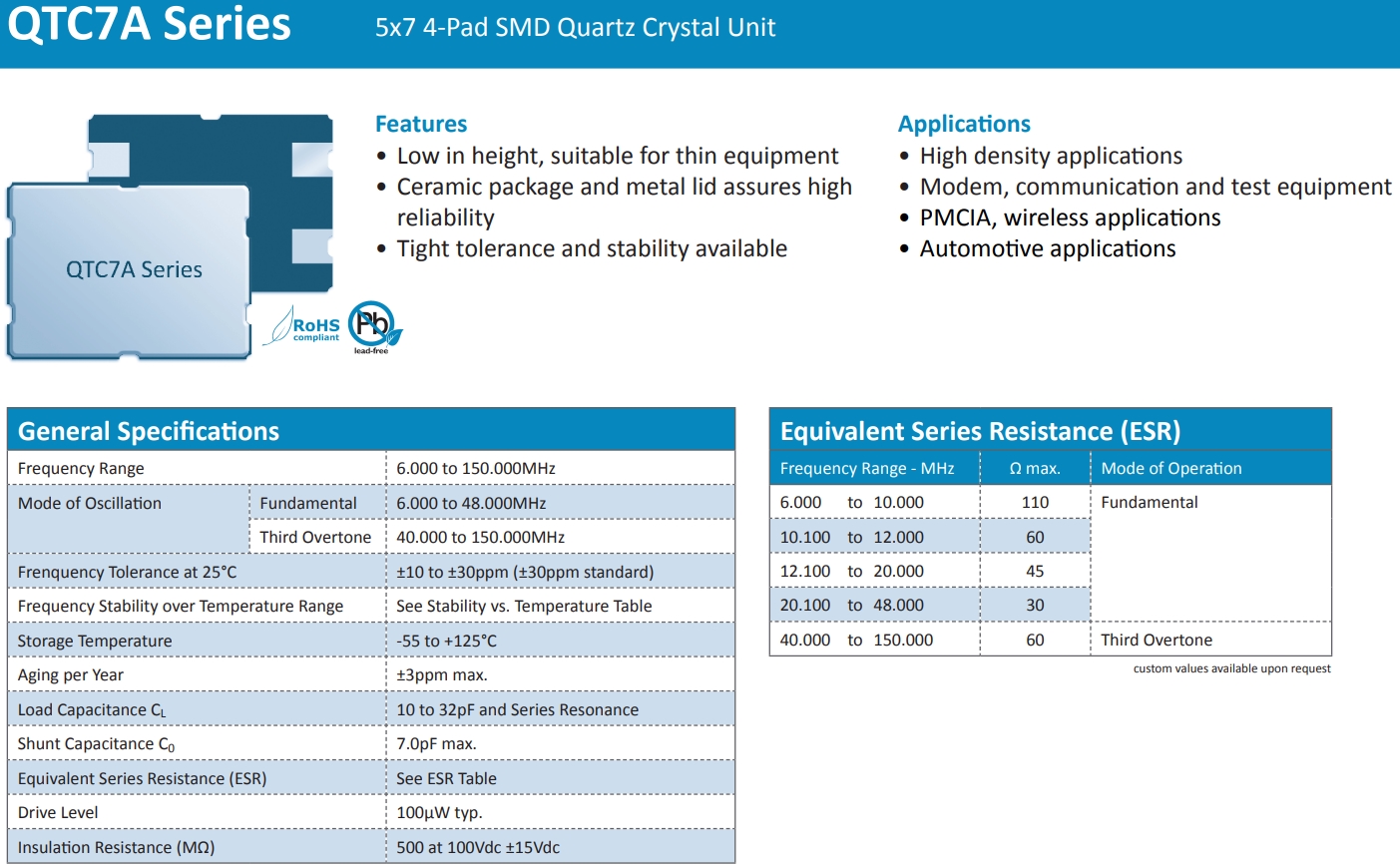

General Specifications

Frequency Range

16.000MHz

Mode of Oscillation

Fundamental

6.000 to 48.000MHz

Third Overtone

40.000 to 150.000MHz

Frenquency Tolerance at 25°C

±10 to ±30ppm (±30ppm standard)

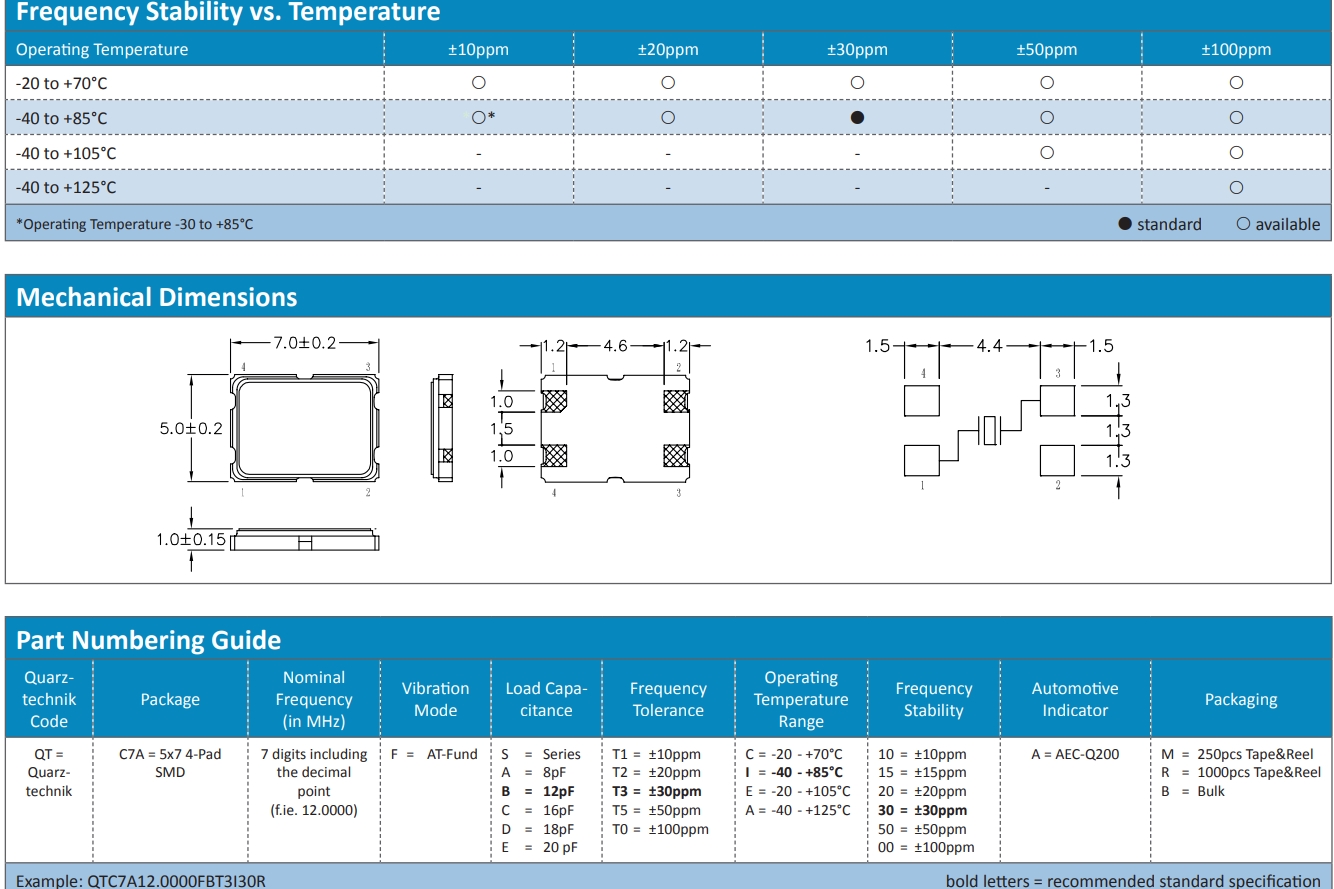

Frequency Stability over Temperature Range

See Stability vs. Temperature Table

Storage Temperature

-55 to +125°C

Aging per Year

±3ppm max.

Load Capacitance CL

10 to 32pF and Series Resonance

Shunt Capacitance C0

7.0pF max.

Equivalent Series Resistance (ESR)

See ESR Table

Drive Level

100μW typ.

Insulation Resistance (MΩ)

500 at 100Vdc ±15Vdc

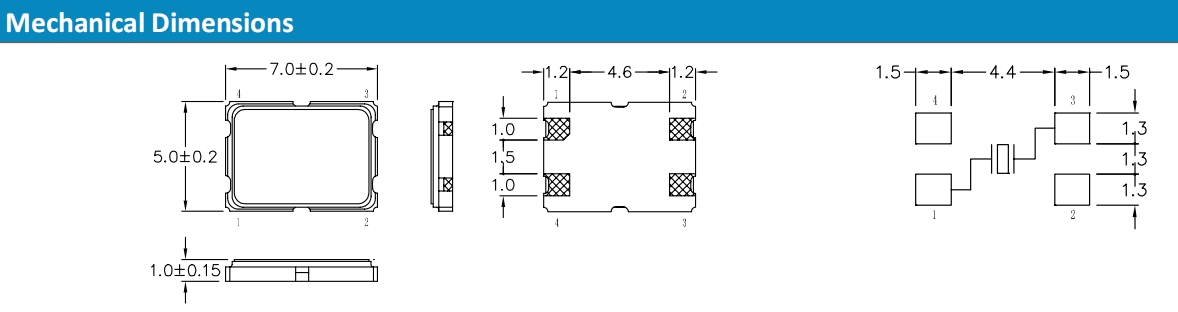

QTC7A娛樂設備晶振,QTC7A16.0000FDT1I20M,夸克四腳貼片晶振 尺寸圖

QTC7A娛樂設備晶振,QTC7A16.0000FDT1I20M,夸克四腳貼片晶振

石英晶振產品特性：

高度低，適用于薄型設備

陶瓷包裝和金屬蓋確保可靠性

具有緊密的公差和穩定性

Frequency	CL	Tolerance	Stability	Temp. Range	Part number	廠家
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A8.00000FDT1I20M	Quarztechnik夸克晶振
10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A10.0000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A12.0000FDT1I20M	Quarztechnik夸克晶振
14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.31818FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.7456FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A16.0000FDT1I20M	Quarztechnik夸克晶振
19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A19.6608FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A8.00000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A12.0000FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A14.7456FDT1I20M	Quarztechnik Crystal
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A16.0000FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A20.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A8.00000FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.0000FDT1I20M	Quarztechnik夸克晶振
12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.2880FDT1I20M	Quarztechnik夸克晶振
15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A15.3600FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A16.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A18.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A20.0000FDT1I20M	Quarztechnik夸克晶振
24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A24.5760FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A27.0000FDT1I20M	Quarztechnik夸克晶振
30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A30.0000FDT1I20M	Quarztechnik夸克晶振
40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A40.0000FDT1I20M	Quarztechnik夸克晶振
48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A48.0000FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3216.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3218.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3220.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3224.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3225.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3227.0000FDT1I20M	Quarztechnik夸克晶振
