QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M

頻率：14.7456MHZ

尺寸：6.0x3.5mm

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M，尺寸6.0x3.5mm，頻率14.7456MHZ，Quarztechnik晶振，德國夸克晶振，德國無源晶振，6035mm石英晶振，輕薄型晶體，石英晶體，石英貼片晶振，石英水晶振子，無源石英晶振，無源晶振，無源貼片晶振，無源晶振，SMD晶振，低功耗晶振，低耗能晶振，高品質晶振，高性能晶振，無線應用晶振，汽車應用晶振，通信設備晶振，測試設備晶振，小型設備晶振，數字視頻晶振，高密度應用晶振，調制解調器專用晶振，具有高品質高性能的特點。

無源晶振產品主要應用于高密度應用，調制解調器、通信和測試設備，PMCIA，無線應用，汽車應用，小型設備，數字視頻等領域.QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M.


訂購熱線：0755-27876201
QQ咨詢 點擊這里給我發消息

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M，尺寸6.0x3.5mm，頻率14.7456MHZ，Quarztechnik晶振，德國夸克晶振，德國無源晶振，6035mm石英晶振，輕薄型晶體，石英晶體，石英貼片晶振，石英水晶振子，無源石英晶振，無源晶振，無源貼片晶振，無源晶振，SMD晶振，低功耗晶振，低耗能晶振，高品質晶振，高性能晶振，無線應用晶振，汽車應用晶振，通信設備晶振，測試設備晶振，小型設備晶振，數字視頻晶振，高密度應用晶振，調制解調器專用晶振，具有高品質高性能的特點。

無源晶振產品主要應用于高密度應用，調制解調器、通信和測試設備，PMCIA，無線應用，汽車應用，小型設備，數字視頻等領域.QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M.

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M        參數表

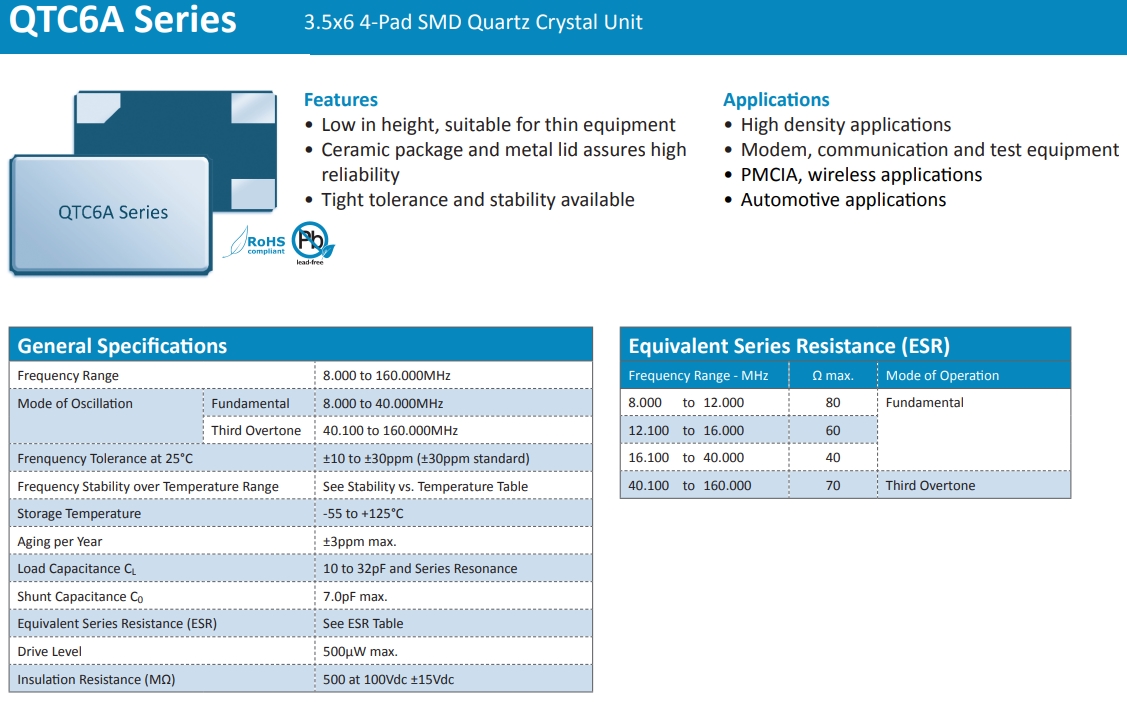

General Specifications
Frequency Range 14.74560MHz
Mode of Oscillation Fundamental 8.000 to 40.000MHz
Third Overtone 40.100 to 160.000MHz
Frenquency Tolerance at 25°C ±10 to ±30ppm (±30ppm standard)

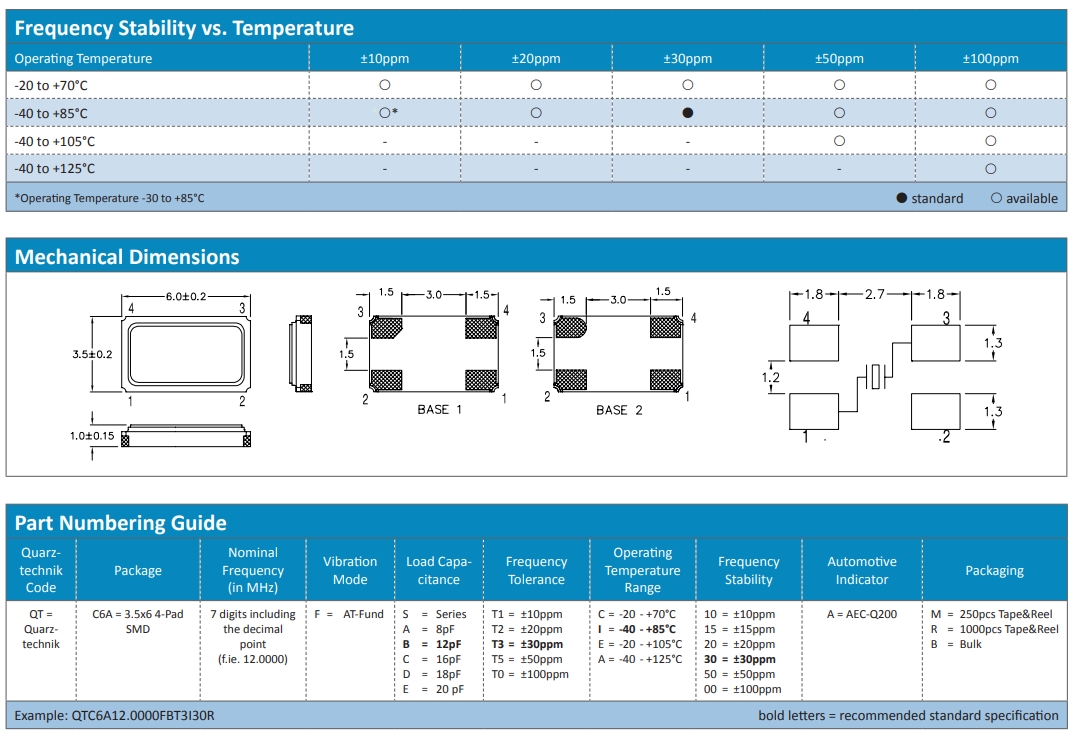

Frequency Stability over Temperature Range See Stability vs. Temperature Table
Storage Temperature -55 to +125°C
Aging per Year ±3ppm max.
Load Capacitance CL 10 to 32pF and Series Resonance
Shunt Capacitance C0 7.0pF max.
Equivalent Series Resistance (ESR) See ESR Table
Drive Level 500μW max.
Insulation Resistance (MΩ) 500 at 100Vdc ±15Vdc

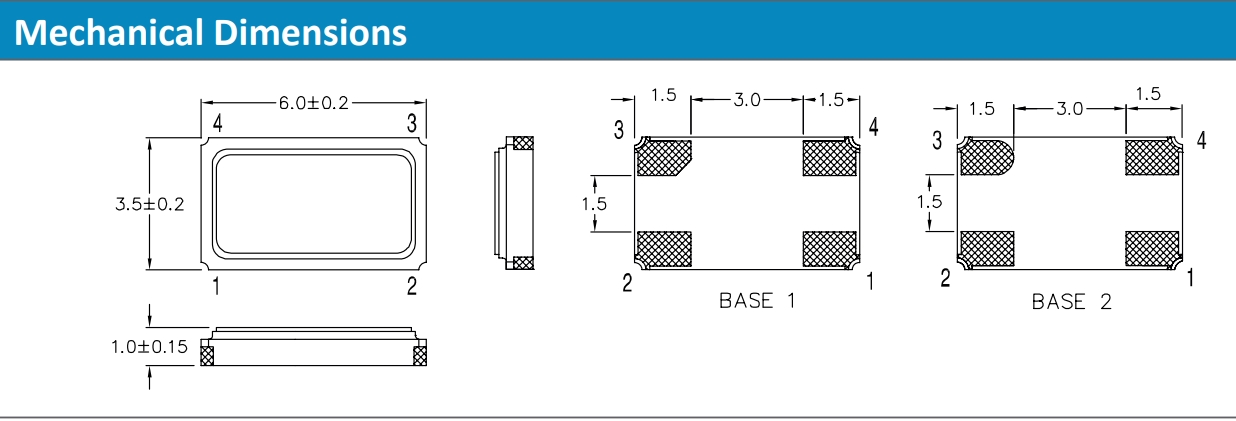

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M        尺寸圖

QTC6A

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M

貼片石英晶振產品特性：

高度低，適用于薄型設備

陶瓷包裝和金屬蓋確保可靠性

具有緊密的公差和穩定性

QTC6A 1

QTC6A 2

Frequency CL Tolerance Stability Temp. Range Part number 廠家
8.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A8.00000FDT1I20M Quarztechnik夸克晶振
10.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A10.0000FDT1I20M Quarztechnik夸克晶振
11.0592 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A11.0592FDT1I20M Quarztechnik夸克晶振
12.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A12.0000FDT1I20M Quarztechnik夸克晶振
14.31818 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A14.31818FDT1I20M Quarztechnik夸克晶振
14.7456 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A14.7456FDT1I20M Quarztechnik夸克晶振
16.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A16.0000FDT1I20M Quarztechnik夸克晶振
19.6608 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A19.6608FDT1I20M Quarztechnik夸克晶振
24.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A24.0000FDT1I20M Quarztechnik夸克晶振
25.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A25.0000FDT1I20M Quarztechnik夸克晶振
27.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A27.0000FDT1I20M Quarztechnik夸克晶振
32.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC7A32.0000FDT1I20M Quarztechnik夸克晶振
8.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A8.00000FDT1I20M Quarztechnik夸克晶振
11.0592 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A11.0592FDT1I20M Quarztechnik夸克晶振
12.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A12.0000FDT1I20M Quarztechnik夸克晶振
14.7456 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A14.7456FDT1I20M Quarztechnik晶振
16.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A16.0000FDT1I20M Quarztechnik夸克晶振
20.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A20.0000FDT1I20M Quarztechnik夸克晶振
24.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A24.0000FDT1I20M Quarztechnik夸克晶振
25.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A25.0000FDT1I20M Quarztechnik夸克晶振
27.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A27.0000FDT1I20M Quarztechnik夸克晶振
32.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC6A32.0000FDT1I20M Quarztechnik夸克晶振
8.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A8.00000FDT1I20M Quarztechnik夸克晶振
12.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A12.0000FDT1I20M Quarztechnik夸克晶振
12.288 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A12.2880FDT1I20M Quarztechnik夸克晶振
15.360 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A15.3600FDT1I20M Quarztechnik夸克晶振
16.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A16.0000FDT1I20M Quarztechnik夸克晶振
18.432 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A18.4320FDT1I20M Quarztechnik夸克晶振
20.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A20.0000FDT1I20M Quarztechnik夸克晶振
24.576 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A24.5760FDT1I20M Quarztechnik夸克晶振
25.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A25.0000FDT1I20M Quarztechnik夸克晶振
27.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A27.0000FDT1I20M Quarztechnik夸克晶振
30.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A30.0000FDT1I20M Quarztechnik夸克晶振
40.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A40.0000FDT1I20M Quarztechnik夸克晶振
48.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC5A48.0000FDT1I20M Quarztechnik夸克晶振
16.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC3216.0000FDT1I20M Quarztechnik夸克晶振
18.432 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC3218.4320FDT1I20M Quarztechnik夸克晶振
20.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC3220.0000FDT1I20M Quarztechnik夸克晶振
24.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC3224.0000FDT1I20M Quarztechnik夸克晶振
25.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC3225.0000FDT1I20M Quarztechnik夸克晶振
27.0 MHz 18 pF ±10ppm ±20ppm -40 - +85°C QTC3227.0000FDT1I20M Quarztechnik夸克晶振
