XG-2121CA交換機晶振,X1M0003110014,EPSON差分輸出晶振

產品簡介

XG-2121CA交換機晶振,X1M0003110014,EPSON差分輸出晶振，尺寸7.0×5.0mm，頻率125MHZ，輸出邏輯LV-PECL，愛普生進口晶振，日本進口晶振，7050mm差分晶振，LV-PECL輸出晶振，石英差分晶振，貼片差分振蕩器，LV-PECL差分晶體振蕩器，有源差分振蕩器，交換機專用差分晶振，北斗模塊差分晶振，智能家電差分晶振，影音系統差分晶振，低電壓差分晶振，低功耗差分晶振，低相位差分晶振，低抖動差分晶振，低相噪差分晶振，具有優異的耐壓性能。

OSC晶振產品可廣泛應用各大應用平臺，比較適合用于交換機，北斗模塊，智能家電，影音系統等應用。XG-2121CA交換機晶振,X1M0003110014,EPSON差分輸出晶振.

產品詳情

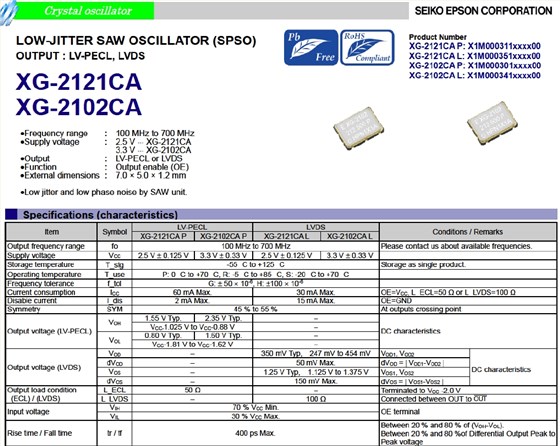

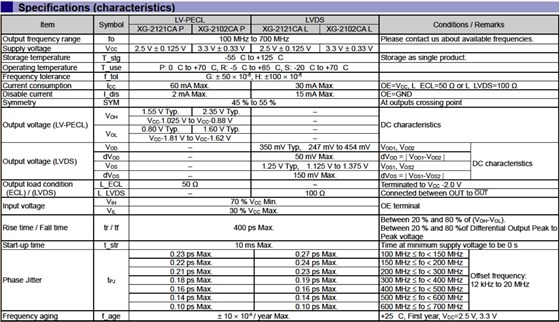

XG-2121CA交換機晶振,X1M0003110014,EPSON差分輸出晶振 參數表

XG-2102CA XG-2121CA cans

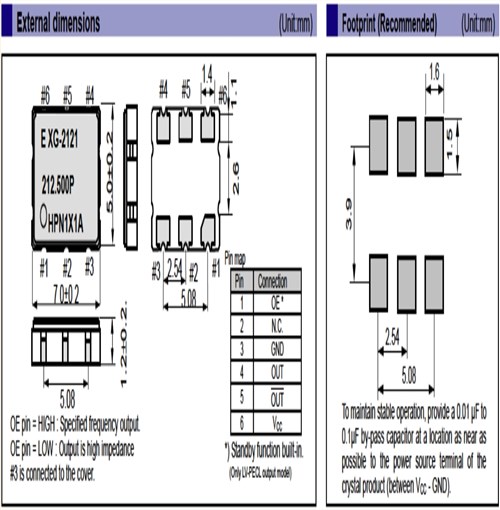

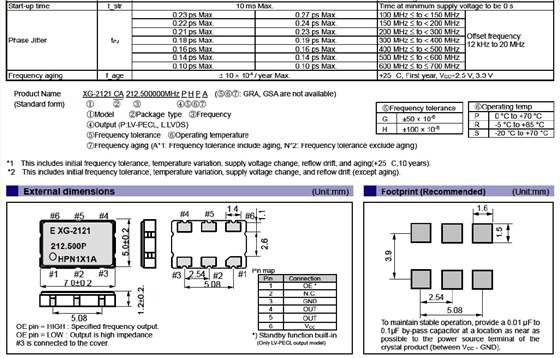

XG-2121CA交換機晶振,X1M0003110014,EPSON差分輸出晶振 尺寸圖

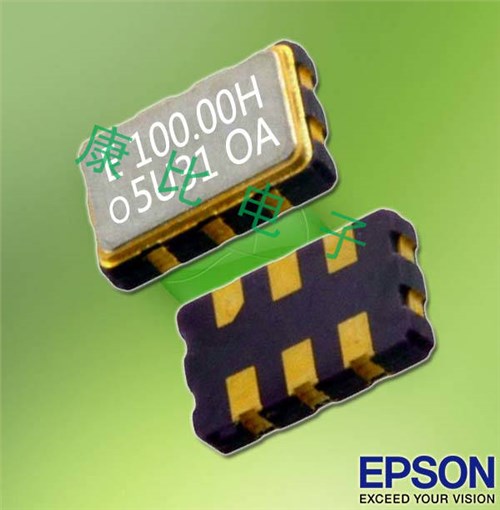

XG-2121CA交換機晶振,X1M0003110014,EPSON差分輸出晶振

差分晶振產品特性：

頻率范圍：100MHz至700MHz

電源電壓：3.3 V

輸出：LV-PECL或LVDS

功能：輸出啟用（OE）

外形尺寸：7.0×5.0×1.2mm

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓
X1M0003110002	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110003	愛普生晶振	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110004	愛普生晶振	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110005	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110006	愛普生晶振	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110007	愛普生晶振	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110008	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110009	愛普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110010	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110011	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110012	愛普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110013	愛普生晶振	XG-2121CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110014	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110015	愛普生晶振	XG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110016	愛普生晶振	XG-2121CA	127.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110017	愛普生晶振	XG-2121CA	136.718750 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110018	愛普生晶振	XG-2121CA	98.304000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110020	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110021	愛普生晶振	XG-2121CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110022	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110023	愛普生晶振	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110024	愛普生晶振	XG-2121CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110025	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110026	愛普生晶振	XG-2121CA	135.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110027	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110028	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110029	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110030	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110031	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110032	愛普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110033	愛普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
