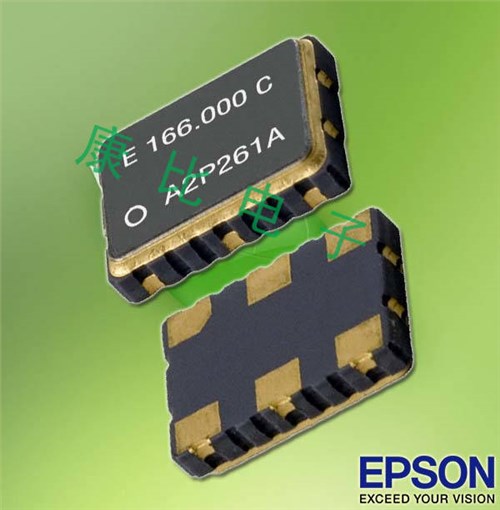

愛普生LV-PECL輸出晶振,X1G0042710061,SG5032EAN光收發器晶振，尺寸5.0x3.2mm，頻率100MHZ，輸出邏輯LV-PECL，EPSON有源晶振，LV-PECL輸出晶振，差分石英振蕩器，差分貼片晶振，差分有源振蕩器，石英晶體振蕩器，高質量差分晶振，高性能差分晶振，低損耗差分晶振，低電壓差分晶振，低抖動差分晶振，低相位差分晶振，低相噪差分晶振，光收發器差分晶振，儀器儀表專用差分晶振，無線路由器差分晶振，通信模塊差分晶振，航空航天差分晶振，藍牙模塊差分晶振，智能家居差分晶振，具有超高的可靠性能以及耐壓性能。

有源晶振產品超級適合用于光收發器，儀器儀表，無線路由器，通信模塊，航空航天，藍牙模塊，智能家居等領域。愛普生LV-PECL輸出晶振,X1G0042710061,SG5032EAN光收發器晶振.

愛普生LV-PECL輸出晶振,X1G0042710061,SG5032EAN光收發器晶振 參數表

Item

Symbol

Specifications

Conditions / Remarks

LV-PECL

LVDS

SG3225EAN / SG5032EAN /
SG7050EAN

SG3225VAN / SG5032VAN /
SG7050VAN

Output frequency range

100MHz

Please contact us about available frequencies.

Supply voltage

VCC

K: 2.5 V - 10 % to 3.3 V + 10 %

Storage temperature

T_stg

-40°C to +125°C

Storage as single product.

Operating temperature

T_use

B: -20°C to +70°C, G: -40°C to +85°C

Frequency tolerance

f_tol

J:±50×10-6, E:±30×10-6, C:±20×10-6

Current consumption

ICC

65 mA Max.

30 mA Max.

OE = Vcc, L_ECL = 50 Q or L_LVDS = 100 Q

Disable current

I_dis

20 mA Max.

OE = GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

VCC- 1.0 V to VCC- 0.8 V

−

DC characteristics

VOL

VCC- 1.78 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

250 mV to 450 mV

VOD1, VOD2

DC characteristics

VOD

−

50 mV Max.

dVOD=|VOD1-VOD2|

VOS

−

1.15 V to 1.35 V

VOS1, VOS2

VOS

−

150 mV Max .

dVOS=|VOS1-VOS2|

Output load condition
(ECL) / (LVDS)

L_ECL

50 Q

−

Terminated to VCC-2.0 V

L_LVDS

−

100 Q

Connected between OUT to OUT

Input voltage

VIH

70 % VCCMin .

OE terminal

VIL

30 % VCCMax.

Rise time / Fall time

tr/ tf

350 ps Max.

300 ps Max.

LV-PECL:Between 20 % and 80 % of (VOH-VOL) .
LVDS:Between 20 % and 80 %of Differential Output
peak to peak voltage

Start-up time

t_str

3 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

0.6 ps Max .*1

Offset frequency: 12 kHz to 20 MHz

Frequency aging

f_age

±5×10-6/ year Max.

+25°C, First year, VCC= 2.5 V, 3.3 V

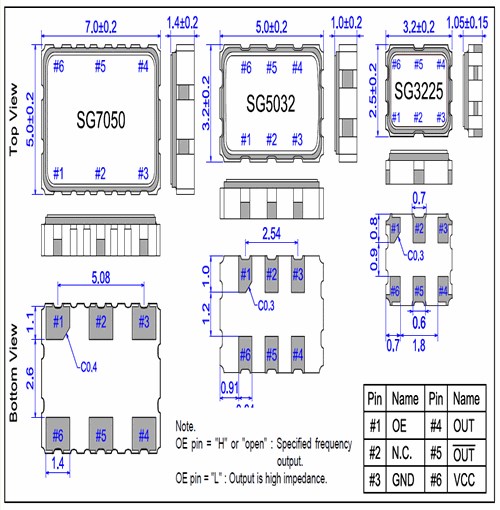

愛普生LV-PECL輸出晶振,X1G0042710061,SG5032EAN光收發器晶振 尺寸圖

愛普生LV-PECL輸出晶振,X1G0042710061,SG5032EAN光收發器晶振

產品特性：

通過PLL技術和基本AT晶體單元實現

寬頻率范圍： 73.5 MHz至700MHz

電源電壓： 2.5 V到3.3 V

功能：輸出啟用（OE）

輸出： LV-PECL或LVDS

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042710001	EPSON振蕩器	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710002	EPSON振蕩器	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710004	EPSON振蕩器	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710005	EPSON振蕩器	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710006	EPSON振蕩器	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710007	EPSON振蕩器	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710008	EPSON振蕩器	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710009	EPSON振蕩器	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710010	EPSON振蕩器	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710011	EPSON振蕩器	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710012	EPSON振蕩器	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710013	EPSON振蕩器	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710014	EPSON振蕩器	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710015	EPSON振蕩器	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710016	EPSON振蕩器	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710017	EPSON振蕩器	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710019	EPSON振蕩器	SG5032EAN	700.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710020	EPSON振蕩器	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710021	EPSON振蕩器	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710023	EPSON振蕩器	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710024	EPSON振蕩器	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710025	EPSON振蕩器	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710026	EPSON振蕩器	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710027	EPSON振蕩器	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710028	EPSON振蕩器	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710029	EPSON振蕩器	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710030	EPSON振蕩器	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710031	EPSON振蕩器	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710032	EPSON振蕩器	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710033	EPSON振蕩器	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710034	EPSON振蕩器	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710035	EPSON振蕩器	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710036	EPSON振蕩器	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710038	EPSON振蕩器	SG5032EAN	700.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710039	EPSON振蕩器	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710040	EPSON振蕩器	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710042	EPSON振蕩器	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710043	EPSON振蕩器	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710044	EPSON振蕩器	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710045	EPSON振蕩器	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710046	EPSON振蕩器	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710047	EPSON振蕩器	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710048	EPSON振蕩器	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710049	EPSON振蕩器	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710050	EPSON振蕩器	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710052	EPSON振蕩器	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710053	EPSON振蕩器	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710054	EPSON振蕩器	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710055	EPSON振蕩器	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710058	EPSON振蕩器	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710059	EPSON振蕩器	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710061	EPSON振蕩器	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710062	EPSON振蕩器	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710063	EPSON振蕩器	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710064	EPSON振蕩器	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710065	愛普生晶振	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710066	EPSON振蕩器	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710067	EPSON振蕩器	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710068	EPSON振蕩器	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710069	EPSON振蕩器	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710071	EPSON振蕩器	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710072	EPSON振蕩器	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710073	EPSON振蕩器	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710074	EPSON振蕩器	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710079	EPSON振蕩器	SG5032EAN	50.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710080	EPSON振蕩器	SG5032EAN	68.750000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710083	EPSON振蕩器	SG5032EAN	50.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710084	EPSON振蕩器	SG5032EAN	68.750000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710087	EPSON振蕩器	SG5032EAN	50.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710088	EPSON振蕩器	SG5032EAN	68.750000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710091	EPSON振蕩器	SG5032EAN	50.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710092	EPSON振蕩器	SG5032EAN	68.750000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710102	EPSON振蕩器	SG5032EAN	669.325580 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710107	EPSON振蕩器	SG5032EAN	114.285000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710108	EPSON振蕩器	SG5032EAN	114.285000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710109	EPSON振蕩器	SG5032EAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710110	EPSON振蕩器	SG5032EAN	350.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710111	EPSON振蕩器	SG5032EAN	80.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710112	EPSON振蕩器	SG5032EAN	98.304000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710113	EPSON振蕩器	SG5032EAN	161.132812 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710115	EPSON振蕩器	SG5032EAN	133.330000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
