SMD100.3C(E/D)-50.000MHz,7050mm,GED低電壓晶振,50MHZ振蕩器,美國進口晶振,GED有源晶振,石英晶體振蕩器,有源貼片晶振,OSC晶振,7050mm有源振蕩器,時鐘振蕩器,四腳有源晶振,尺寸7.0×5.0mm,頻率50MHZ,電壓5.0V,低電源電壓晶振,低抖動晶振,低相位晶振,高性能晶振,智能家居晶振,測試設備晶振,儀器儀表晶振,視聽設備晶振.
SMD100.3C(E/D)-50.000MHz,7050mm,GED低電壓晶振,50MHZ振蕩器特點:
表面安裝HCMOS/TTL兼容石英晶體振蕩器
HCMOS/TTL輸出
5.0V電源電壓
陶瓷SMD封裝
可用于磁帶和卷軸

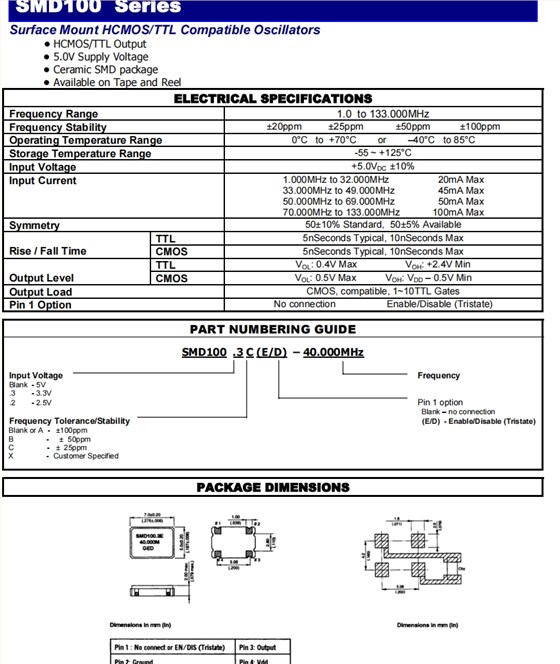

SMD100.3C(E/D)-50.000MHz,7050mm,GED低電壓晶振,50MHZ振蕩器 參數表
| ELECTRICAL SPECIFICATIONS | |||||
| Frequency Range | 50.000MHz | ||||
| Frequency Stability | ±20ppm±25ppm±50ppm±100ppm | ||||
| Operating Temperature Range | 0°Cto+70°Cor–40°Cto 85°C | ||||
| Storage Temperature Range | -55 ~ +125°C | ||||
| Input Voltage | +5.0VDC±10% | ||||
| Input Current |
1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz |
20mA Max 45mA Max 50mA Max 100mA Max |
|||
| Symmetry | 50±10% Standard,50±5% Available | ||||
| Rise / Fall Time | TTL | 5nSeconds Typical, 10nSeconds Max | |||
| CMOS | 5nSeconds Typical, 10nSeconds Max | ||||
| Output Level | TTL | VOL: 0.4V MaxVOH: +2.4V Min | |||
| CMOS | VOL: 0.5V MaxVOH: VDD– 0.5V Min | ||||
| Output Load | CMOS, compatible, 1~10TTL Gates | ||||
| Pin 1 Option | No connectionEnable/Disable (Tristate) | ||||

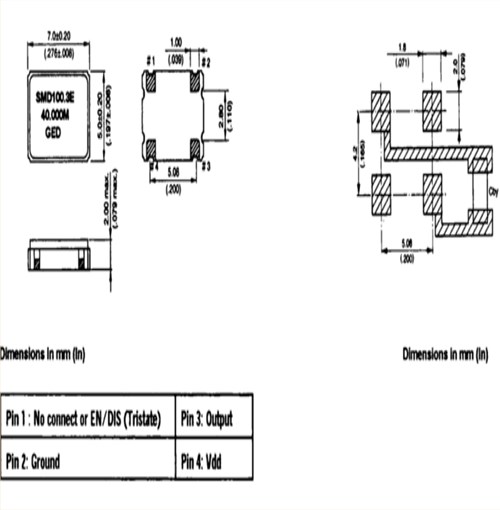

SMD100.3C(E/D)-50.000MHz,7050mm,GED低電壓晶振,50MHZ振蕩器 尺寸圖
