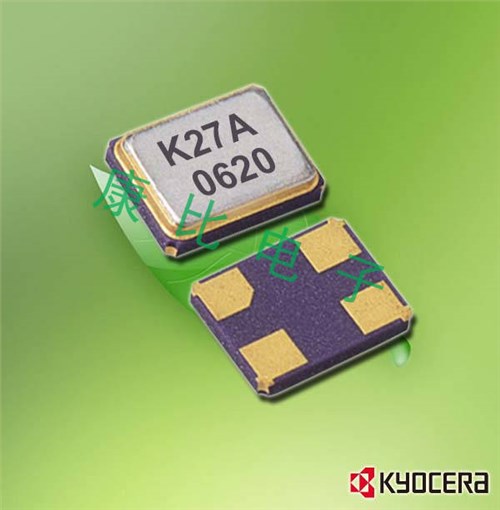

CX2520DB20000D0FLJCC,京瓷水晶振動子,CX2520DB移動設備晶振，尺寸2.5x2.0mm，頻率20MHZ，Kyocera石英晶體，日本進口晶振，京瓷無源晶振，KyoceraCrystal，水晶振動子，SMD晶振，2520超小型晶振，石英貼片晶體，SMD無源晶振，無源石英晶振，環保晶振，高性能晶振，高質量晶振，低損耗無源晶體，低功耗晶振，低成本晶振，數碼家電專用晶振，移動設備晶振，通信設備晶振，無線藍牙晶振，民生機器晶振，物聯網專用晶振，儀器儀表晶振，智能家居晶振，多媒體設備晶振，產品具有低功耗高性能的特點。

石英貼片晶振產品被廣泛應用各個領域之中，特別適合用于數碼家電，一般民生機器，移動通信、藍牙®、無線LAN，物聯網，儀器儀表，多媒體設備等領域。CX2520DB20000D0FLJCC,京瓷水晶振動子,CX2520DB移動設備晶振.

CX2520DB20000D0FLJCC,京瓷水晶振動子,CX2520DB移動設備晶振 參數表

項目

記號

標準規格

単位

備考

周波數

f_nom

20.000

kHz

オーバートーン次數

Fundamental

―

負荷容量

その他の負荷容量についてはお問い合わせ下さい。

周波數許容偏差

f_tol

±15

×10−6

25°C±3°C

直列抵抗

Table 1

ohm

勵振レベル

Table 2

動作溫度範囲

T_use

−10~ +70

−30~ +85

°C

保存溫度範囲

T_stg

−40~ +85

°C

周波數溫度特性

f_tem

±15

×10−6

25°Cの周波數に対しての偏差

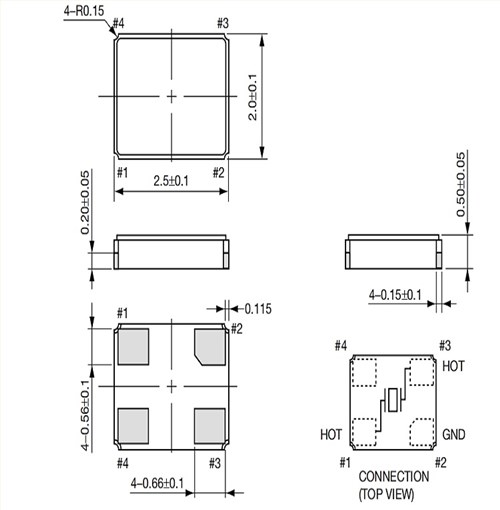

CX2520DB20000D0FLJCC,京瓷水晶振動子,CX2520DB移動設備晶振 尺寸圖

CX2520DB20000D0FLJCC,京瓷水晶振動子,CX2520DB移動設備晶振

石英晶振產品特性：

一般民用機器用?移動體通信用水晶振子

陶瓷包裝

支持回流

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency	Operating Temperature工作溫度
CX2520DB19200H0KFQC2	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	19.2MHz	-20°C ~ 70°C
CX2520DB24000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24MHz	-30°C ~ 85°C
CX2520DB32000D0WZRC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	32MHz	-25°C ~ 75°C
CX2520DB16000D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	16MHz	-10°C ~ 70°C
CX2520DB24000D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX2520DB40000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2520DB27000H0KLSA1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2520DB27000B0FLHA1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	27MHz	-10°C ~ 85°C
CX2520DB40000H0FLJC3	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2520DB40000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2520DB13560H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	13.56MHz	-30°C ~ 85°C
CX2520DB19200D0FLJC2	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2520DB27000D0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2520DB26000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	26MHz	-40°C ~ 85°C
CX2520DB27000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2520DB25000D0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	25MHz	-30°C ~ 85°C
CX2520DB13560D0FLJC2	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	13.56MHz	-30°C ~ 85°C
CX2520DB24000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24MHz	-30°C ~ 85°C
CX2520DB12000D0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	12MHz	-30°C ~ 85°C
CX2520DB16000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	16MHz	-30°C ~ 85°C
CX2520DB16000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CX2520DB12000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	12MHz	-30°C ~ 85°C
CX2520DB19200H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2520DB32000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2520DB32000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2520DB26000H0FLJC2	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2520DB16000D0WZRC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	16MHz	-25°C ~ 75°C
CX2520DB30000D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	30MHz	-10°C ~ 70°C
CX2520DB16000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	16MHz	-30°C ~ 85°C
CX2520DB26000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2520DB38400D0FZGC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	38.4MHz	-25°C ~ 85°C
CX2520DB32000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2520DB48000D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	48MHz	-10°C ~ 70°C
CX2520DB24576D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2520DB25000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	25MHz	-30°C ~ 85°C
CX2520DB12000C0WLSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	12MHz	-30°C ~ 85°C
CX2520DB12000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX2520DB13560D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 85°C
CX2520DB19200D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	19.2MHz	-40°C ~ 85°C
CX2520DB20000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	20MHz	-30°C ~ 85°C
CX2520DB20000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	20MHz	-40°C ~ 85°C
CX2520DB24000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24MHz	-40°C ~ 85°C
CX2520DB24576D0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24.576MHz	-30°C ~ 85°C
CX2520DB24576H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24.576MHz	-30°C ~ 85°C
CX2520DB24576D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24.576MHz	-40°C ~ 85°C
CX2520DB25000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	25MHz	-40°C ~ 85°C
CX2520DB27000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	27MHz	-40°C ~ 85°C
CX2520DB30000D0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	30MHz	-30°C ~ 85°C
CX2520DB30000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	30MHz	-30°C ~ 85°C
CX2520DB30000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	30MHz	-40°C ~ 85°C
CX2520DB38400H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2520DB38400D0GPSC1	京瓷晶振	CX2520DB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX2520DB48000D0FLJC2	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2520DB48000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2520DB48000D0GPSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX2520DB32000D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	32MHz	-10°C ~ 70°C
CX2520DB20000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	20MHz	-30°C ~ 85°C
CX2520DB38400D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2520DB24576H0HZQA1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24.576MHz	-20°C ~ 85°C
CX2520DB26041F0FJLA1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	26.041MHz	-30°C ~ 85°C
CX2520DB48000D0GEJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	48MHz	-10°C ~ 70°C
CX2520DB24576D0GEJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2520DB26000D0FLJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2520DB30000D0GEJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	30MHz	-10°C ~ 70°C
CX2520DB32000D0FLJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2520DB32000D0GEJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	32MHz	-10°C ~ 70°C
CX2520DB16000D0FLJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	16MHz	-30°C ~ 85°C
CX2520DB38400D0FLJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2520DB16000D0GEJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	16MHz	-10°C ~ 70°C
CX2520DB40000D0FLJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2520DB20000D0FLJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	20MHz	-30°C ~ 85°C
CX2520DB24000D0GEJZ1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX2520DB24000C0FLJA1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	MHz Crystal	24MHz	-30°C ~ 85°C
