7050mm無源諧振器,A072-151.4M1,AEK安克SAW濾波器,151.4MHZ,A072晶體,俄國安克晶振,石英貼片晶振,SMD晶振,7050mm輕型晶振,151.4MHZ晶體諧振器,SAW濾波器,聲表面諧振器,A072石英濾波器,尺寸7.0×5.0mm,頻率151.4MHZ,低耗能晶振,低功耗晶振,室外基站晶振,通信設備晶振,儀器設備晶振,測試產品晶振.
7050mm無源諧振器,A072-151.4M1,AEK安克SAW濾波器,151.4MHZ,A072晶體特點:
1.阻帶中的輸入信號幅度被限制為5V。
2.聲表面濾波器輸入（輸出）處的直流電壓不應超過10V。

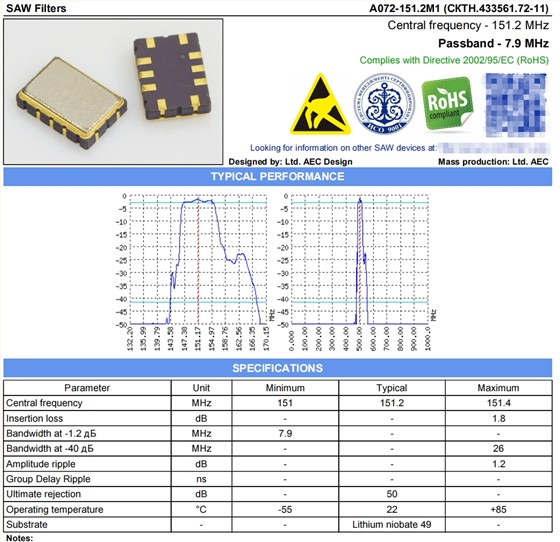

7050mm無源諧振器,A072-151.4M1,AEK安克SAW濾波器,151.4MHZ,A072晶體 參數表
| SPECIFICATIONS | ||||||||||||||||||||||||
| Parameter | Unit | Minimum | Typical | Maximum | ||||||||||||||||||||
| Central frequency | MHz | 151 | 151.2 | 151.4 | ||||||||||||||||||||
| Insertion loss | dB | - | - | 1.8 | ||||||||||||||||||||
| Bandwidth at -1.2 дБ | MHz | 7.9 | - | - | ||||||||||||||||||||
| Bandwidth at -40 дБ | MHz | - | - | 26 | ||||||||||||||||||||
| Amplitude ripple | dB | - | - | 1.2 | ||||||||||||||||||||
| Group Delay Ripple | ns | - | - | - | ||||||||||||||||||||
| Ultimate rejection | dB | - | 50 | - | ||||||||||||||||||||
| Operating temperature | °C | -55 | 22 | +85 | ||||||||||||||||||||
| Substrate | - | - | Lithium niobate 49 | - | ||||||||||||||||||||

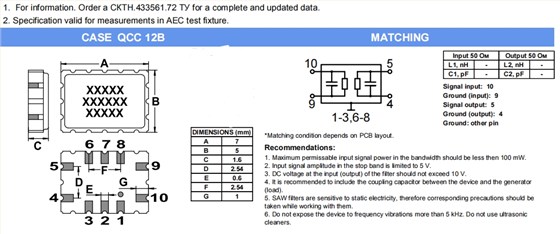

7050mm無源諧振器,A072-151.4M1,AEK安克SAW濾波器,151.4MHZ,A072晶體 尺寸圖
