5032mm,ABM3B-16.000MHZ-10-1-U-T,Abracon無線應用晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABM3B系列，編碼為：ABM3B-16.000MHZ-10-1-U-T，頻率為：16.000MHz，頻率穩定性：±10ppm，頻率容差：±10ppm，負載電容：10pF，工作溫度范圍：-10℃至+60℃，是一款小體積晶振尺寸：5.0x3.2x1.1mm，四腳貼片晶振，石英晶振，石英晶體諧振器，SMD晶體，無源晶振，無鉛環保晶振。具有超小型，輕薄型，高品質，高可靠性等特點。應用于：移動電話晶振，尋呼機，通信設備晶振，測試設備晶振，高密度的應用程序，PCMCIA和無線應用程序。
5032mm,ABM3B-16.000MHZ-10-1-U-T,Abracon無線應用晶振，產品特點：

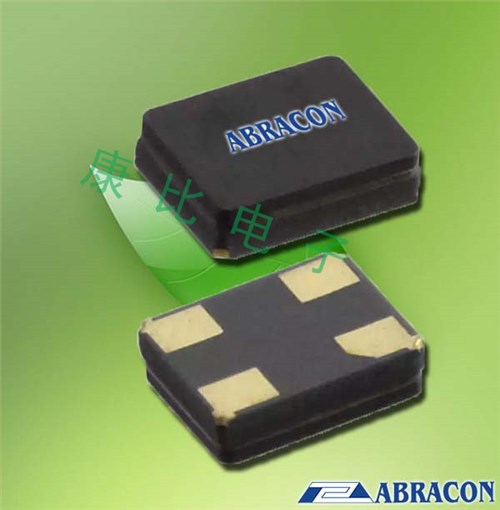

小型尺寸：5.0x3.2x1.1mm無源晶振
基本的模式，適合回流
具有緊密穩定性，接縫密封
陶瓷封裝和金屬蓋保證了高精度和可靠性

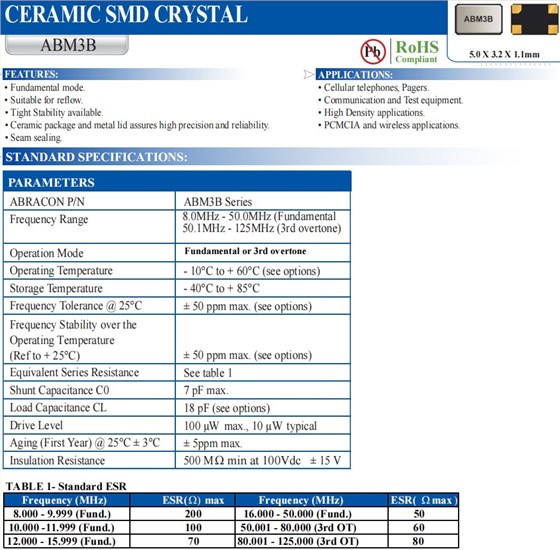

5032mm,ABM3B-16.000MHZ-10-1-U-T,Abracon無線應用晶振,參數表
| ABRACON P/N | ABM3B Series |
| Frequency Range | 16.000 MHz (Fundamental |
| 50. 1MHz - 125MHz (3rd overtone) | |
| Operation Mode | Fundamental or 3rd overtone |
| Operating Temperature | - 10°C to + 60°C (see options) |
| Storage Temperature | - 40°C to + 85°C |
| Frequency Tolerance @ 25°C | ± 50 ppm max. (see options) |
| Frequency Stability over the | |
| Operating Temperature | |
| (Ref to + 25°C) | ± 50 ppm max. (see options) |
| Equivalent Series Resistance | See table 1 |
| Shunt Capacitance C0 | 7 pF max. |
| Load Capacitance CL | 18 pF (see options) |
| Drive Level | 100 µW max., 10 µW typical |
| Aging (First Year) @ 25°C ± 3°C | ± 5ppm max. |
| Insulation Resistance | 500 MΩ min at 100Vdc ± 15 V |

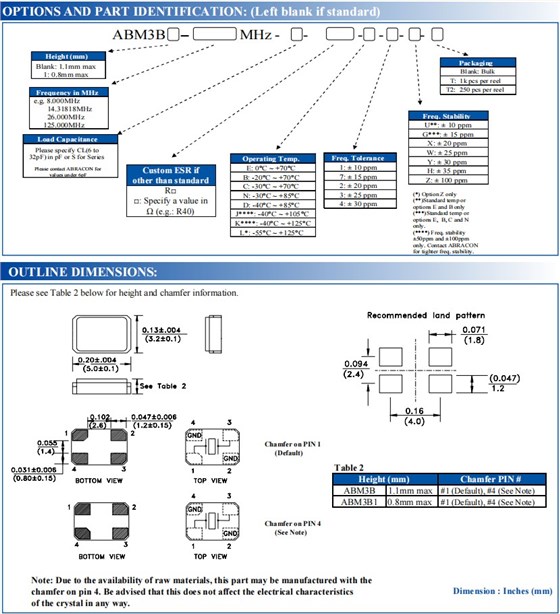

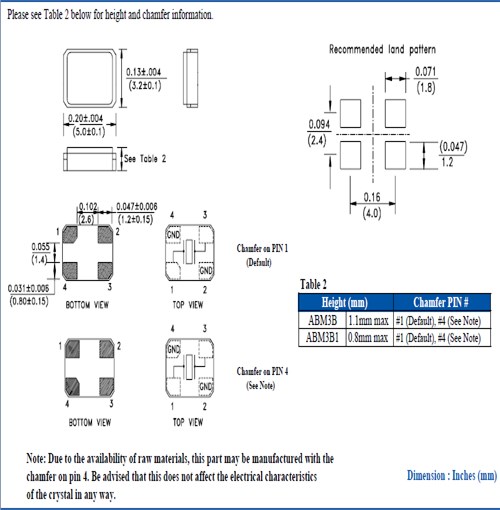

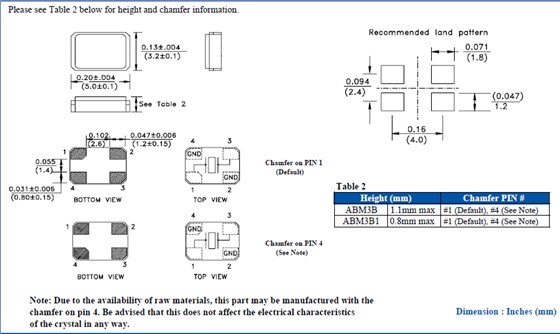

5032mm,ABM3B-16.000MHZ-10-1-U-T,Abracon無線應用晶振,尺寸圖
| 產品編碼 | 進口晶振 | 型號 | 頻率 | 長度 | 寬度 | 高度 |
| ABM3B-10.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 10 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-11.0592MHZ-10-1-U-T | Abracon晶振 | ABM3B | 11.0592 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-11.0592MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 11.0592 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-12-B4H-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-12-N2Y-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-B2-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-D4Y-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.1875MHZ-10-D4-T | Abracon晶振 | ABM3B | 12.1875 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-10-1-U-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-B2-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | 12.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-B2-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.0625MHZ-10-D4-T | Abracon晶振 | ABM3B | 13.0625 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.500MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13.5 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.560MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13.56 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.560MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 13.56 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.560MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 13.56 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.824MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13.824 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.824MHZ-B2-T | Abracon晶振 | ABM3B | 13.824 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.31818MHZ-10-1-U-T | Abracon晶振 | ABM3B | 14.31818 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.31818MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 14.31818 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.31818MHZ-B2-T | Abracon晶振 | ABM3B | 14.31818 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.400MHZ-10-1-U-T | Abracon晶振 | ABM3B | 14.4 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.7456MHZ-10-1-U-T | Abracon晶振 | ABM3B | 14.7456 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.7456MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 14.7456 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.7456MHZ-E-4Z-T | 石英晶振 | ABM3B | 14.7456 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-15.360MHZ-10-1-U-T | Abracon晶振 | ABM3B | 15.36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-15.360MHZ-B2-T | Abracon晶振 | ABM3B | 15.36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-155-12.800MHZ-T | Abracon晶振 | ABM3B | 12.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-16-R50-N1G-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-B2-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-10-1-U-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-B2-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | 16.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.934MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 16.934 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-10-1-U-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-B2-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.200MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.2 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.200MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 19.2 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.200MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 19.2 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.440MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.44 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.680MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.68 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-B2-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-22.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 22 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-B2-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-B4Y-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-D-1-W-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-R60-D-1-W-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-10-1-U-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-20-E-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-B2-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-20-D-4-H-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-22-R50-E4H-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-B2-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-B4U-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-D2Y-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-D4Y-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-N-2-X-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-26.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 26 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-26.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 26 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-26.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 26 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-B2-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-D4-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-B2H-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-D1G-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-D2H-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-28.63636MHZ-10-1-U-T | Abracon晶振 | ABM3B | 28.63636 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-28.63636MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 28.63636 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-28.63636MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 28.63636 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-29.4912MHZ-10-1-U-T | Abracon晶振 | ABM3B | 29.4912 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-B2-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-32.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 32 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-32.000MHZ-B2-T | Abracon晶振 | ABM3B | 32 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-36.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-36.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-B2-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-44.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 44 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-48.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 48 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-48.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 48 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-48.000MHZ-B2-T | Abracon晶振 | ABM3B | 48 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-10-D-1-G-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-B2-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-D2Y-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
