FC7ASBBMM16.0-T1,FOX安防設備晶振,7050mm,陶瓷諧振器，美國FOX晶振，福克斯晶振，型號：FC7AS系列，編碼為：FC7ASBBMM16.0-T1貼片晶振，頻率為：16.000MHz，頻率穩定性：±50ppm，頻率容差：±50ppm，負載電容：20pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：7.0x5.0mm陶瓷SMD封裝，兩腳貼片晶振，無源晶振，SMD晶振，7050晶振，石英晶振，陶瓷諧振器，石英晶體諧振器。具有超小型，輕薄型，高品質，高性能，耐熱及耐環境等特點。被廣泛用于：無線藍牙模塊，安防設備晶振，游戲機設備晶振，數碼電子等應用。
FC7ASBBMM16.0-T1,FOX安防設備晶振,7050mm,陶瓷諧振,參數表
| 品牌 | FOX福克斯晶振 |
| 型號 |
FC7AS |
| 物料編碼 | FC7ASBBMM16.0-T1 |
| 頻率 | 16MHz |
| 頻率穩定性 | ±50ppm |
| 頻率容差 | ±50ppm |
| 負載電容 | 20pF |
| 工作溫度 | -40°C ~ 85°C |
| 尺寸 | 7.0x5.0mm |

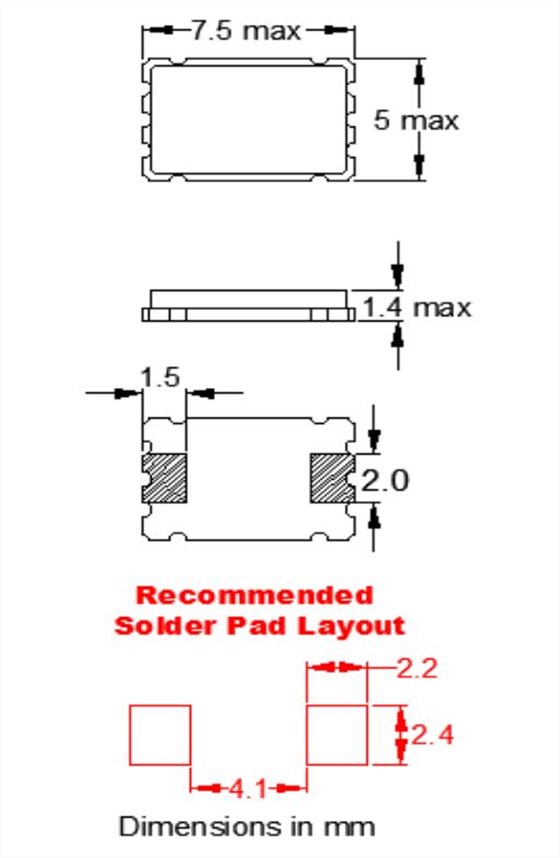

FC7ASBBMM16.0-T1,FOX安防設備晶振,7050mm,陶瓷諧振,尺寸圖
| 產品編碼 | 品牌 | 型號 | 頻率 | 頻率穩定性 | 頻率容差 |
| FC7ASBAMM9.216-T1 | Fox晶振 | FC7AS | 9.216 MHz | ±100ppm | ±50ppm |
| FC7ASBBGD24.0-T1 | Fox晶振 | FC7AS | 24 MHz | ±50ppm | ±50ppm |
| FC7ASBBMD10.0-T1 | Fox晶振 | FC7AS | 10 MHz | ±50ppm | ±50ppm |
| FC7ASBBMD10.0-T2 | Fox晶振 | FC7AS | 10 MHz | ±50ppm | ±50ppm |
| FC7ASBBMD20.0-T1 | 進口晶振 | FC7AS | 20 MHz | ±50ppm | ±50ppm |
| FC7ASBBMD20.0-T2 | Fox晶振 | FC7AS | 20 MHz | ±50ppm | ±50ppm |
| FC7ASBBMD24.576-T2 | Fox晶振 | FC7AS | 24.576 MHz | ±50ppm | ±50ppm |
| FC7ASBBMD25.0-T2 | Fox晶振 | FC7AS | 25 MHz | ±50ppm | ±50ppm |
| FC7ASBBMD9.8304-T2 | Fox晶振 | FC7AS | 9.8304 MHz | ±50ppm | ±50ppm |
| FC7ASBBMM16.0-T1 | Fox晶振 | FC7AS | 16 MHz | ±50ppm | ±50ppm |
| FC7ASBBMM9.216-T1 | Fox晶振 | FC7AS | 9.216 MHz | ±50ppm | ±50ppm |
| FC7ASCCGM7.6-T1 | Fox晶振 | FC7AS | 7.6 MHz | ±30ppm | ±30ppm |
| FC7BABBNP16.0-T1 | Fox晶振 | FC7BA | 16 MHz | ±50ppm | ±50ppm |
| FC7BACAGI25.0-T1 | Fox晶振 | FC7BA | 25 MHz | ±100ppm | ±30ppm |
| FC7BACALI25.0-T1 | Fox晶振 | FC7BA | 25 MHz | ±100ppm | ±30ppm |
| FC7BACBMI25.0-T1 | Fox晶振 | FC7BA | 25 MHz | ±50ppm | ±30ppm |
