Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振，尺寸5.0x3.2mm，頻率8MHZ，臺灣鴻星晶振，鴻星貼片晶振，兩腳無源晶體，貼片無源晶振，5032mm無源晶振，SMD晶振，陶瓷晶振，8MHZ無源晶振，水晶振動子，綠色環保晶振，高精度晶振，高性能晶振，低功耗晶振，低成本晶振，儀器儀表晶振，智能手機，藍牙音響專用晶振，智能家居晶振，無線設備晶振，6G電信晶振，具有輕薄型低功耗的特點。
該無源晶體器件為DIP型晶體設計的主要解決方案，常常應用于藍牙音響，智能家居，無線設備，6G電信，儀器儀表，智能手機等領域。Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振.

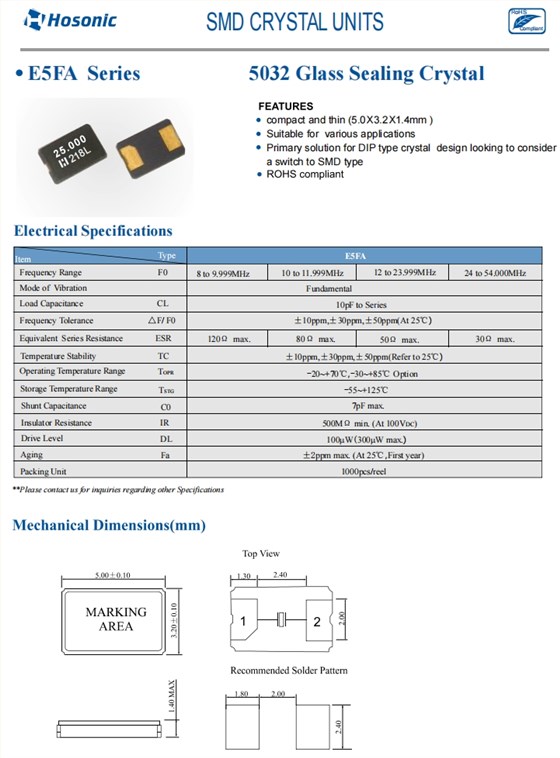

Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振 參數表
|
Item Frequency Range |
Type F0 |
E5FA | |||||||||
| 8 MHz | 10 to 11.999MHz | 12 to 23.999MHz | 24 to 54.000MHz | ||||||||
| Mode of Vibration | Fundamental | ||||||||||
| Load Capacitance | CL | 10pF to Series | |||||||||
| Frequency Tolerance | ΔF/ F0 | ±10ppm,±30ppm,±50ppm(At 25℃) | |||||||||
| EquivalentSeries Resistance | ESR | 120Ωmax. | 80Ωmax. | 50Ωmax. | 30Ωmax. | ||||||
| Temperature Stability | TC | ±10ppm,±30ppm,±50ppm(Refer to 25℃) | |||||||||
| Operating Temperature Range | TOPR | -20~+70℃,-30~+85℃Option | |||||||||
| Storage Temperature Range | TSTG | -55~+125℃ | |||||||||
| Shunt Capacitance | C0 | 7pF max. | |||||||||
| Insulator Resistance | IR | 500MΩmin. (At 100VDC) | |||||||||
| Drive Level | DL | 100μW(300μW max.) | |||||||||
| Aging | Fa | ±2ppm max. (At 25℃,First year) | |||||||||
| Packing Unit | 1000pcs/reel | ||||||||||

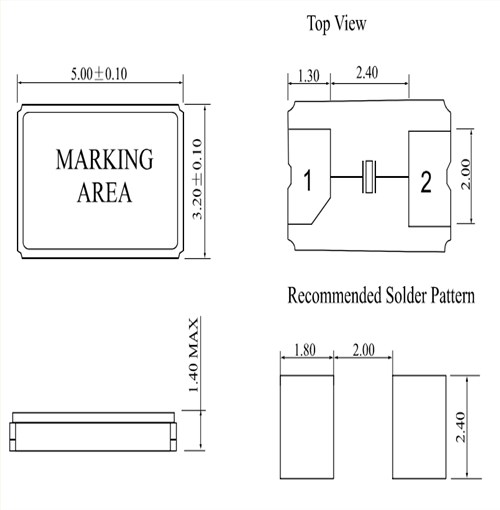

Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振 尺寸圖

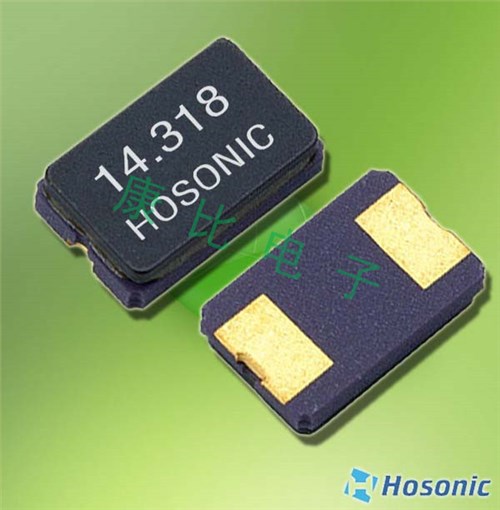

陶瓷晶振產品特征:
緊湊和薄（5.0X3.2X1.4mm）適用于各種應用，
為DIP型晶體設計的主要解決方案，
希望考慮轉換到SMD類型
符合RoHS
更多相關Hosonic鴻星晶振型號
| 臺產晶振 | Supplier | Series | Frequency | Frequency Stability穩定度 | Frequency Tolerance | Load Capacitance |
| E2SB40E000104ECBB8 | Hosonic鴻星晶振 | E2SB | 40 MHz | ±10ppm | ±7ppm | 12pF |
| E2SB38E0X0300E | Hosonic鴻星晶振 | E2SB | 38.4 MHz | ±10ppm | ±10ppm | 8pF |
| E2SB40E000107E | Hosonic鴻星晶振 | E2SB | 40 MHz | -12ppm, +20ppm | ±5ppm | 12pF |
| E2SB40E00010AE | Hosonic鴻星晶振 | E2SB | 40 MHz | ±10ppm | ±7ppm | 7pF |
| E1SB24E00001EE | Hosonic鴻星晶振 | E1S | 24 MHz | ±30ppm | ±30ppm | 18pF |
| E1SB26E007902E | Hosonic鴻星晶振 | E1SB | 26 MHz | ±15ppm | ±10ppm | 9pF |
| E1SB60E003701E | Hosonic鴻星晶振 | E1S | 60 MHz | ±20ppm | ±10ppm | 9pF |
| E1SB55E0X0002E | Hosonic鴻星晶振 | E1SB | 55.2 MHz | ±10ppm | ±10ppm | 10pF |
| E2SB27E0X0000E | Hosonic鴻星晶振 | E2SB | 27.12 MHz | ±10ppm | ±10ppm | 8pF |
| E2SB24E001801E | Hosonic鴻星晶振 | E2SB | 24 MHz | ±20ppm | ±20ppm | 12pF |
| E2SB40E000108E | Hosonic鴻星晶振 | E2SB | 40 MHz | ±15ppm | ±7ppm | 6pF |
| E1SB24E000007E | Hosonic鴻星晶振 | E1SB | 24 MHz | ±10ppm | ±10ppm | 10pF |
| E1SB25E000009E | Hosonic鴻星晶振 | E1S | 25 MHz | ±30ppm | ±30ppm | 6pF |
| E1SB24E004000E | Hosonic鴻星晶振 | E1S | 24 MHz | ±10ppm | ±10ppm | 18pF |
| E1SB38E0X0001E | Hosonic鴻星晶振 | E1S | 38.4 MHz | ±10ppm | ±10ppm | 10pF |
| E1SB39E000000E | Hosonic鴻星晶振 | E1SB | 39 MHz | ±13ppm | ±8ppm | 10pF |
| E1SB40E00090AECBB8 | Hosonic鴻星晶振 | E1S | 40 MHz | ±20ppm | ±10ppm | 12pF |
| E1SB48E000506E | Hosonic鴻星晶振 | E1S | 48 MHz | ±16ppm | ±8ppm | 11.1pF |
| E1SB25E001000E | Hosonic鴻星晶振 | E1S | 25 MHz | ±30ppm | ±30ppm | 18pF |
| E1SB32E007900E | Hosonic鴻星晶振 | E1SB | 32 MHz | ±15ppm | ±10ppm | 10pF |
| E1SB32E001502E | Hosonic鴻星晶振 | E1SB | 32 MHz | ±20ppm | ±10ppm | 12pF |
| E2SB12E000005E | Hosonic鴻星晶振 | E2SB | 12 MHz | ±20ppm | ±20ppm | 12pF |
| E1SB37E0X0002E | Hosonic鴻星晶振 | E1S | 37.4 MHz | ±10ppm | ±10ppm | 16pF |
| E1SB32E001501ECBB8 | Hosonic鴻星晶振 | E1S | 32 MHz | ±10ppm | ±10ppm | 9pF |
| E1SB16E000004E | Hosonic鴻星晶振 | E1SB | 16 MHz | ±10ppm | ±10ppm | 8pF |
| E2SB16E00000ME | Hosonic鴻星晶振 | E2SB | 16 MHz | ±30ppm | ±30ppm | 12pF |
| E2SB26E001201E | Hosonic鴻星晶振 | E2SB | 26 MHz | ±13ppm | ±5ppm | 9pF |
| E2SB32E001201E | Hosonic鴻星晶振 | E2SB | 32 MHz | ±10ppm | ±10ppm | 12pF |
| E1SB40E001202E | Hosonic鴻星晶振 | E1SB | 40 MHz | ±17ppm | ±10ppm | 8pF |
| E2SB32E00000LE | Hosonic鴻星晶振 | E2SB | 32MHz | ±10ppm | 9pF | |
| E5FA8E000000DE | Hosonic鴻星晶振 | E5FA | 8MHz | ±20ppm | 20pF | |
| E1SB24E000901E | Hosonic鴻星晶振 | E1SB | 24.000MHz | ±10ppm | 12PF | |
| E1SB24E000009E | Hosonic鴻星晶振 | E1SB | 24.000MHz | ±10ppm | 12PF | |
| E1SB32E000016E | Hosonic鴻星晶振 | E1SB | 32MHz | ±10ppm | 9pF | |
| E5SB8E0000000E | Hosonic鴻星晶振 | E5SB | 8MHz | ±10ppm | 10pF | |
| E5SB8E0000015E10C0 | Hosonic鴻星晶振 | E5SB | 8MHz | 10pF | ||
| E2SB37E0X0002E | Hosonic鴻星晶振 | E2SB | 37.4MHz | ±10ppm | 10pF | |
| E1SB27E00000FE | Hosonic鴻星晶振 | E1SB | 27MHz | ±10ppm | 10pF | |
| E2SB24E000016E | Hosonic鴻星晶振 | E2SB | 24MHz | ±10ppm | 20pF | |
| E2SB54E000000E | Hosonic鴻星晶振 | E2SB | 54MHz | ±10ppm | 10pF | |
| E2SB48E000009E | Hosonic鴻星晶振 | E2SB | 48MHz | ±10ppm | 12pF | |
| E2SB50E00000EE | Hosonic鴻星晶振 | E2SB | 50MHz | ±14ppm | 19pF | |
| E1SB40E000000E | Hosonic鴻星晶振 | E1SB | 40MHz | ±10ppm | 8pF | |
| E2SB37E0X0004E | Hosonic鴻星晶振 | E2SB | 37.4MHz | ±10ppm | 12pF | |
| E1SB48E00001JE | Hosonic鴻星晶振 | E1SB | 48MHz | ±10ppm | 15pF | |
| E2SB40E000007E | Hosonic鴻星晶振 | E2SB | 40MHz | ±10ppm | 10pF | |
| E1SB26E000006E | Hosonic鴻星晶振 | E1SB | 26MHz | ±10ppm | 16pF | |
| E2SB40E000003E | Hosonic鴻星晶振 | E2SB | 40MHz | ±10ppm | 8pF | |
| E1SB24E000012E | Hosonic鴻星晶振 | E1SB | 24.000MHz | ±10ppm | 9pF | |
| E2SB24E00001NE | Hosonic鴻星晶振 | E2SB | 24MHz | ±15ppm | 16pF | |
| E2SB40E00000RE | Hosonic鴻星晶振 | E2SB | 40MHz | ±30ppm | 20pF | |
| E1SB50E000000E | Hosonic鴻星晶振 | E1SB | 50MHz | ±15ppm | 7pF | |
| E1SB24E00000EE | Hosonic鴻星晶振 | E1SB | 24MHz | ±20ppm | 20pF | |
| E2SB38E0X0007E | Hosonic鴻星晶振 | E2SB | 38.400MHz | ±10ppm | 10pF | |
| E2SB54E000009E | Hosonic鴻星晶振 | E2SB | 54MHz | ±5ppm | 19pF | |
| E2SB26E00000GE | Hosonic鴻星晶振 | E2SB | 26MHz | ±10ppm | 16pF | |
| E1SB26E00000PE | Hosonic鴻星晶振 | E1SB | 26MHz | ±15ppm | 12pF | |
| E2SB26E000007E | Hosonic鴻星晶振 | E2SB | 26MHz | ±10ppm | 9pF | |
| E1SB40E000007E | Hosonic鴻星晶振 | E1SB | 40.000MHz | ±10ppm | 15pF | |
| E2SB40E000006E | Hosonic鴻星晶振 | E2SB | 40MHz | ±10ppm | 10pF | |
| E1SB16E00000PE | Hosonic鴻星晶振 | E1SB | 16MHz | ±10ppm | 16pF | |
| E2SB40E00000EE | Hosonic鴻星晶振 | E2SB | 40MHz | ±10ppm | 15pF | |
| E1SB27E0X0005E | Hosonic鴻星晶振 | E1SB | 27.12MHz | ±10ppm | 10pF | |
| E2SB26E00000DE | Hosonic鴻星晶振 | E2SB | 26MHz | ±10ppm | 12pF | |
| E1SB26E00000SE | Hosonic鴻星晶振 | E1SB | 26MHz | ±10ppm | 9pF | |
| E2SB50E00000CE | Hosonic鴻星晶振 | E2SB | 50MHz | ±10ppm | 8pF | |
| E1SB24E00000XE | Hosonic鴻星晶振 | E1SB | 24MHz | ±10ppm | 16pF | |
| E2SB48E000004E | Hosonic鴻星晶振 | E2SB | 48MHz | ±10ppm | 10pF | |
| E2SB16E000014E | Hosonic鴻星晶振 | E2SB | 16MHz | ±10ppm | 16pF | |
| E2SB40E000009E | Hosonic鴻星晶振 | E2SB | 40MHz | ±10ppm | 12pF | |
| E1SB37E0X0009E | Hosonic鴻星晶振 | E1SB | 37.4MHz | ±10ppm | 12pF | |
| E1SB40E00000CE | Hosonic鴻星晶振 | E1SB | 40MHz | ±10ppm | 10pF | |
| E2SB26E000005E | Hosonic鴻星晶振 | E2SB | 26.000MHz | ±10ppm | 9PF | |
| E2SB12E00000CE | Hosonic鴻星晶振 | E2SB | 12MHz | ±20ppm | 18pF | |
| E1SB32E00000AE | Hosonic鴻星晶振 | E1SB | 32MHz | ±15ppm | 10pF | |
| E2SB16E000007E | Hosonic鴻星晶振 | E2SB | 16MHz | ±10ppm | 10pF | |
| E1SB50E00000DE | Hosonic鴻星晶振 | E1SB | 50MHz | ±10ppm | 15pF | |
| E1SB38E0X000EE | Hosonic鴻星晶振 | E1SB | 38.4MHz | ±8ppm | 12pF | |
| E1SB40E00000AE | Hosonic鴻星晶振 | E1SB | 40MHz | ±10ppm | 12pF | |
| E2SB16E00000VE | Hosonic鴻星晶振 | E2SB | 16MHz | ±10ppm | 12pF | |
| E1SB24E000011E | Hosonic鴻星晶振 | E1SB | 24.000MHz | ±10ppm | 8pF | |
| E2SB27E00000KE | Hosonic鴻星晶振 | E2SB | 27MHz | ±10ppm | 10pF | |
| E2SB40E00000WE | Hosonic鴻星晶振 | E2SB | 40MHz | ±10ppm | 9pF | |
| E2SB16E000003E | Hosonic鴻星晶振 | E2SB | 16MHz | ±10ppm | 9pF | |
| E1SB25E00000NE | Hosonic鴻星晶振 | E1SB | 25MHz | ±10ppm | 12pF | |
| E1SB16E000008E | Hosonic鴻星晶振 | E1SB | 16MHz | ±10ppm | 12pF | |
| E2SB27E00000EE | Hosonic鴻星晶振 | E2SB | 27.000MHz | ±10ppm | 20pF | |
| E2SB32E000018E | Hosonic鴻星晶振 | E2SB | 32MHz | ±10ppm | 10pF | |
| E1SB24E00000PE | Hosonic鴻星晶振 | E1SB | 24.000MHZ | ±30ppm | 16pF | |
| E2SB26E000103E | Hosonic鴻星晶振 | E2SB | 26MHz | ±10ppm | 7.5pF | |
| E2SB40E00000JE | Hosonic鴻星晶振 | E2SB | 40MHz | ±10ppm | 12pF | |
| E2SB12E000014E | Hosonic鴻星晶振 | E2SB | 12MHz | ±10ppm | 20pF | |
| E1SB16E000005E | Hosonic鴻星晶振 | E1SB | 16MHz | ±10ppm | 10pF | |
| E1SB32E00000WE | Hosonic鴻星晶振 | E1SB | 32MHZ | ±10ppm | 8pF | |
| E2SB38E0X000HE | Hosonic鴻星晶振 | E2SB | 38.4MHz | ±10ppm | 12pF |
