STD尋呼機晶振,6035mm,AAV27M000000FLH12H,27MHZ,歐美進口晶振,STD晶體諧振器,無源貼片晶振,無源晶振,6035mm小封裝晶振,陶瓷晶振,27MHZ貼片晶振,水晶振動子,貼片陶瓷晶振,尺寸6.0x3.5mm,頻率27MHZ,負載12pF,工作溫度-20~+70℃,無鉛晶振,耐高溫晶振,低功耗晶振,高精度晶振,尋呼機晶振,多媒體設備晶振,微處理器晶振,數字電子晶振.
STD尋呼機晶振,6035mm,AAV27M000000FLH12H,27MHZ特點:
超薄型陶瓷諧振器尺寸6.0x3.5mm
優異的耐熱性
通過無鉛認證

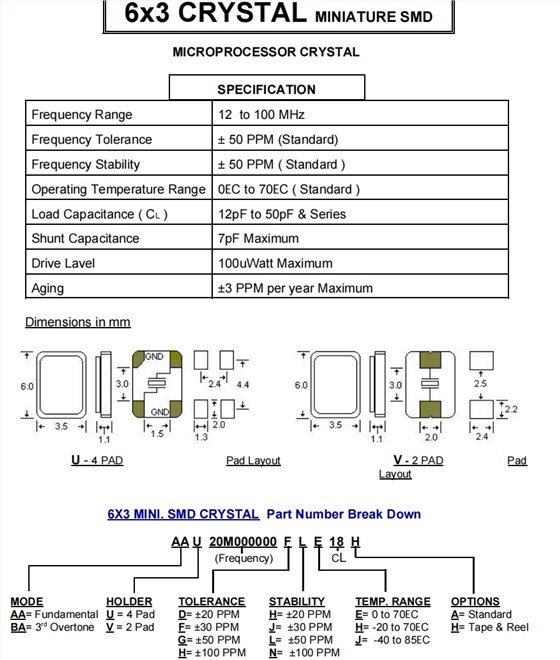

STD尋呼機晶振,6035mm,AAV27M000000FLH12H,27MHZ 參數表
| Frequency Range | 27 MHz | |||||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||||
| Aging | ±3 PPM per year Maximum | |||||||||||

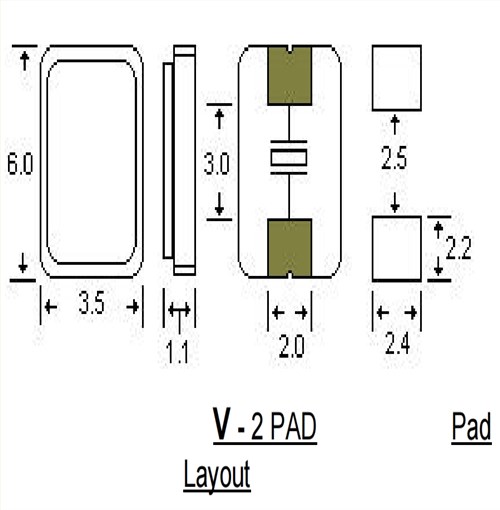

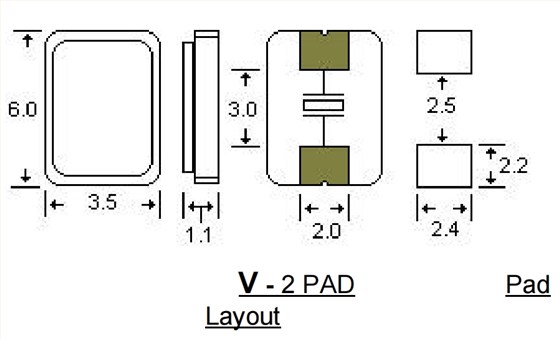

STD尋呼機晶振,6035mm,AAV27M000000FLH12H,27MHZ 尺寸圖
