IQD音叉諧振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm,英國IQD晶振,英國石英晶體,無源貼片晶振,32.768KHZ晶振,無源晶體,SMD晶振,1610晶體諧振器,音叉水晶振動子,尺寸1.6x1.0mm,頻率32.768KHZ,無鉛晶體,耐高溫晶振,低損耗晶振,高品質晶振,數字電子晶振,計算機晶振,記秒器晶振,蠟燭燈晶振,數字電表晶振.

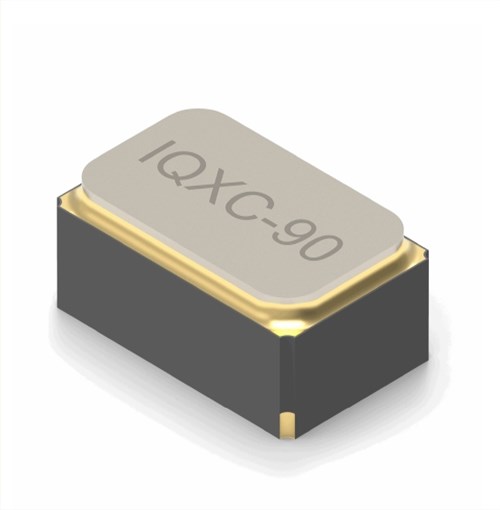

IQD音叉諧振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm特點:
密封陶瓷中的1.6 x 1.0mmSMD晶體包裹
32.768K晶振適用于實時時鐘應用。
無鉛環保型

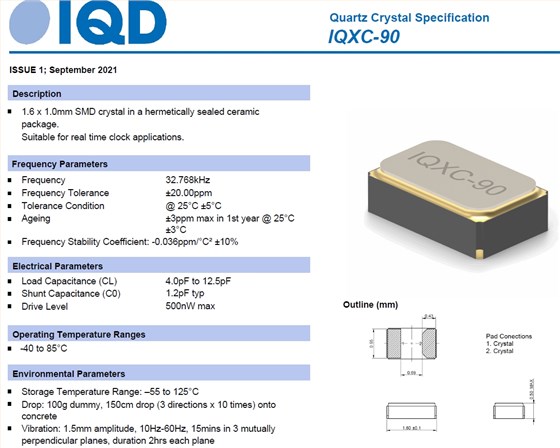

IQD音叉諧振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm 參數表
| Frequency | 32.768kHz |
| Frequency Tolerance | ±20.00ppm |
| Tolerance Condition | @ 25°C ±5°C |
| Ageing |
±3ppm max in 1st year @ 25°C ±3°C |

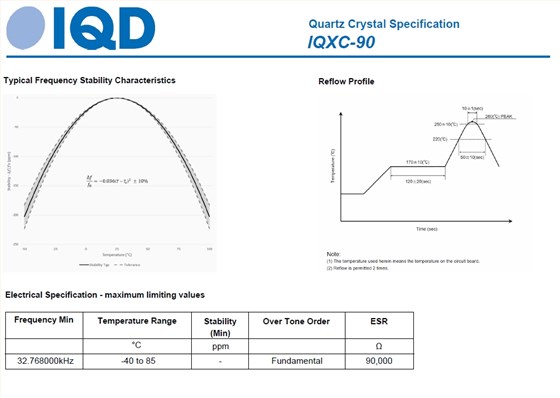

| Frequency Stability Coefficient: | -0.036ppm/°C² ±10% |
| Load Capacitance (CL) | 4.0pF to 12.5pF |
| Shunt Capacitance (C0) | 1.2pF typ |
| Drive Level | 500nW max |
| Operating Temperature Ranges | -40 to 85°C |

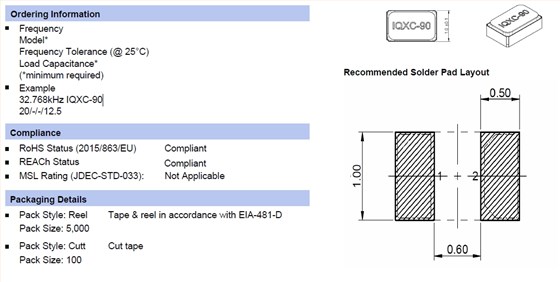

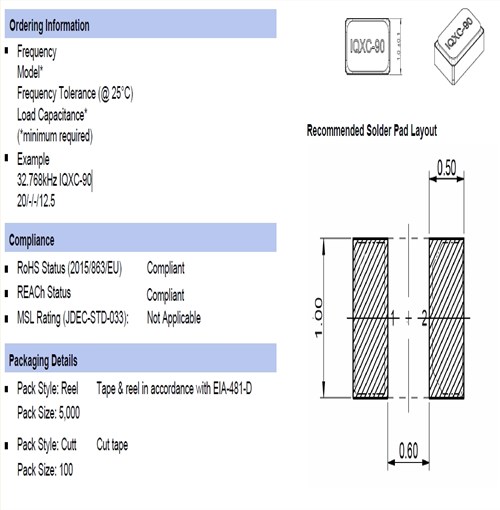

IQD音叉諧振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm 尺寸圖
