FMI石英振動子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm,歐美進口晶振,FMI晶體諧振器,輕薄型晶振,5032mm無源晶振,石英貼片晶振,30MHZ石英晶體,四腳貼片晶振,尺寸5.0x3.2mm,頻率30MHZ,工作溫度-20~+70°C,低損耗晶振,低耗能晶振,高品質晶振,高性能晶振,娛樂設備晶振,數字電子晶振,移動電話晶振,無線應用晶振.
FMI石英振動子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm特點:
表面貼裝陶瓷組件。
Micro 5 x 3.2/超薄貼片晶振
高可靠性
緊密穩定性

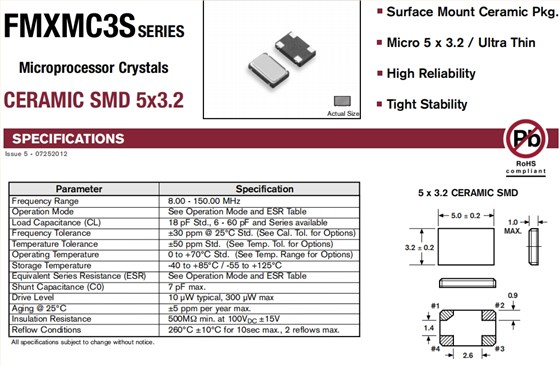

FMI石英振動子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm 參數表
| Parameter | Specification | ||||||||||||||
| Frequency Range | 30.00 MHz | ||||||||||||||

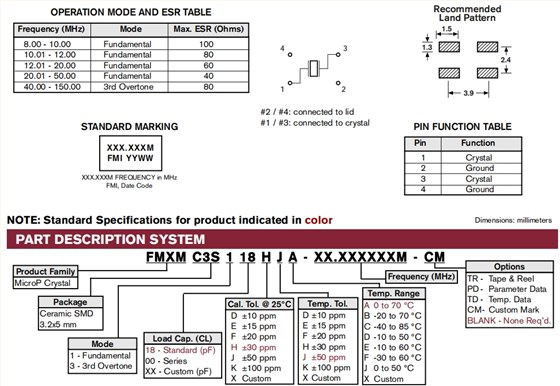

| Operation Mode | See Operation Mode and ESR Table | ||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 6 - 60 pF and Series available | ||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | ||||||||||||||
| Temperature Tolerance | ±50 ppm Std.(See Temp. Tol. for Options) | ||||||||||||||
| Operating Temperature | 0 to +70°C Std.(See Temp. Range for Options) | ||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||
| Shunt Capacitance (C0) | 7 pF max. | ||||||||||||||
| Drive Level | 10 µWtypical, 300 µW max | ||||||||||||||
| Aging @ 25°C | ±5 ppm per year max. | ||||||||||||||
| Insulation Resistance | 500MΩ min. at 100VDC±15V | ||||||||||||||
| Reflow Conditions | 260°C ±10°C for 10sec max., 2 reflows max. |

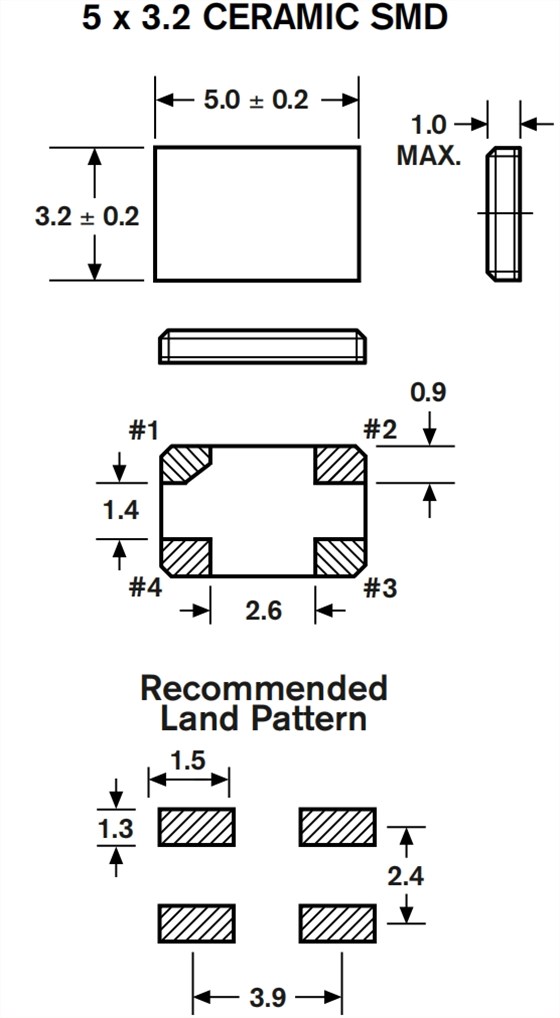

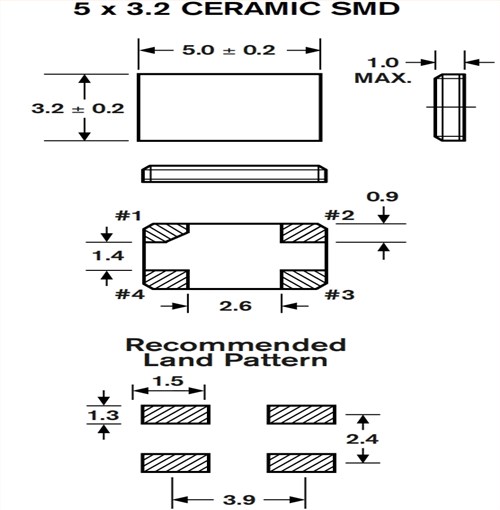

FMI石英振動子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm 尺寸圖
