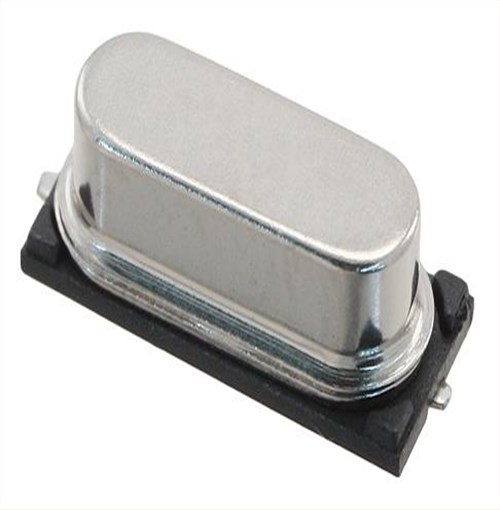

FC4SDCBMF12.288-T1,12.288MHz,FOX高質量晶振,SMD石英晶體

產品簡介

FC4SDCBMF12.288-T1,12.288MHz,FOX高質量晶振,SMD石英晶體，福克斯晶振，FOX晶振，美國進口晶振，型號：FC4SD系列，編碼為：FC4SDCBMF12.288-T1，頻率為：12.288MHz，頻率穩定性：±50ppm，頻率容差：±30ppm，負載電容：20pF，工作溫度范圍：-20℃至+70℃，小體積晶振尺寸：11.7x5.0mm，兩腳貼片晶振，石英晶振，無源晶振，SMD石英晶體，石英晶體諧振器，無鉛環保晶振。被廣泛用于：通訊設備，無線藍牙模塊，車載控制器，安防設備，物聯網，智能家居等應用。

產品詳情

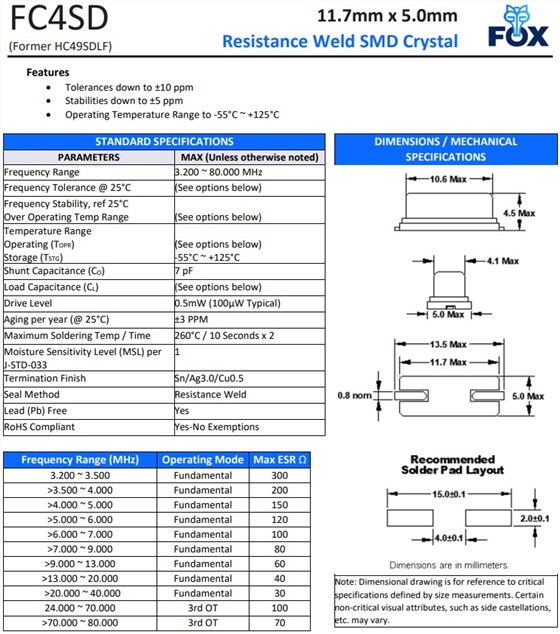

FC4SDCBMF12.288-T1,12.288MHz,FOX高質量晶振,SMD石英晶體,參數表

PARAMETERS	MAX(unless otherwise noted)
Frequency Range	12.288.000 MHz
Frequency Tolerance @ 25ºC	(See options on page 2)
Frequency Stability, ref @ 25ºC	(See options below)
Temperature Range
Operating (TOPR)	(see options below)
Storage (TSTG)	-55ºC ~ +125ºC
Shunt Capacitance (Co)	7.0pF
Load Capacitance (Cl)	(See options on page 2)
Drive Level	0.5 mW (0.1 mW Typical)
Aging per year	±3 PPM
Maximum Soldering Temp / Time	260ºC / 10 Seconds
Moisture Sensitivity Level (MSL)	1
Termination Finish	Sn/3.0Ag/0.5Cu
Seal Method	Resistance Weld
Lead (Pb) Free	Yes
RoHS Compliant	No Exemptions

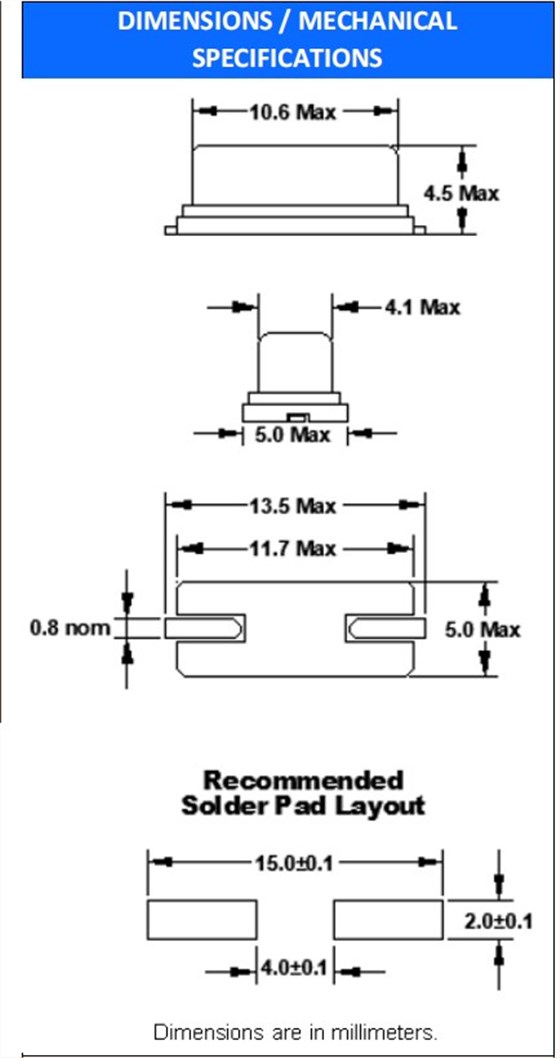

FC4SDCBMF12.288-T1,12.288MHz,FOX高質量晶振,SMD石英晶體,尺寸圖

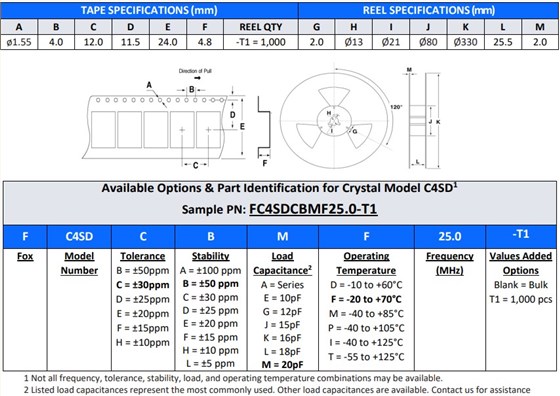

產品編碼	品牌	型號	頻率	頻率穩定性	頻率容差	負載電容
FC4SDBBMF3.2-T1	Fox晶振	FC4SD	3.2 MHz	±50ppm	±50ppm	20 pF
FC4SDCBGF24.0-T1	Fox晶振	FC4SD	24 MHz	±50ppm	±30ppm	12 pF
FC4SDCBGF4.194304-T1	Fox晶振	FC4SD	4.194304 MHz	±50ppm	±30ppm	12 pF
FC4SDCBGM8.0-T1	Fox晶振	FC4SD	8 MHz	±50ppm	±30ppm	12 pF
FC4SDCBKF24.0-T1	福克斯晶振	FC4SD	24 MHz	±50ppm	±30ppm	16 pF
FC4SDCBLF3.579545-T1	Fox晶振	FC4SD	3.579545 MHz	±50ppm	±30ppm	18 pF
FC4SDCBMF10.0-T1	Fox晶振	FC4SD	10 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF11.0-T1	Fox晶振	FC4SD	11 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF11.0592-T1	Fox晶振	FC4SD	11.0592 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF12.0-T1	Fox晶振	FC4SD	12 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF12.288-T1	Fox晶振	FC4SD	12.288 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF14.31818-T1	Fox晶振	FC4SD	14.31818 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF14.7456-T1	Fox晶振	FC4SD	14.7456 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF16.0-T1	Fox晶振	FC4SD	16 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF18.432-T1	Fox晶振	FC4SD	18.432 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF19.6608-T1	Fox晶振	FC4SD	19.6608 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF20.0-T1	Fox晶振	FC4SD	20 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF22.1184-T1	Fox晶振	FC4SD	22.1184 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF24.0-T1	Fox晶振	FC4SD	24 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF24.576-T1	Fox晶振	FC4SD	24.576 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF25.0-T1	Fox晶振	FC4SD	25 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF27.0-T1	Fox晶振	FC4SD	27 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF3.579545-T1	Fox晶振	FC4SD	3.579545 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMF3.6864-T1	Fox晶振	FC4SD	3.6864 MHz	±50ppm	±30ppm	20 pF
