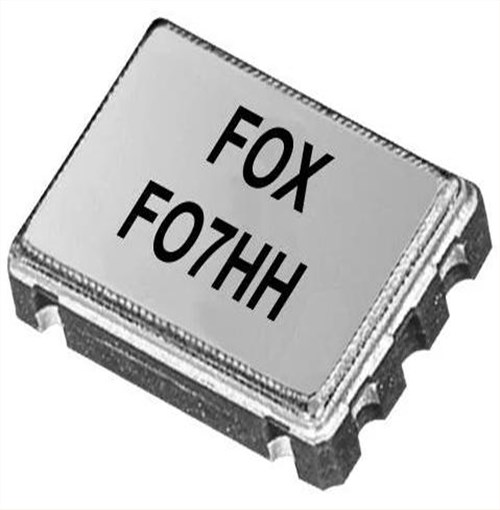

FO7HSCAE32.0-T2,FOX高穩定性晶振,7050mm,XO振蕩器，美國進口晶振，FOX晶振，福克斯晶振，型號：FO7HS系列貼片晶振，編碼為：FO7HSCAE32.0-T2，頻率為：32.000MHz，電壓：3.3V，頻率穩定性：±100ppm，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：7.0x5.0x1.5mm，四腳貼片晶振，有源晶振，石英晶振，HCMOS輸出晶振，石英晶體振蕩器，SMD晶振。具有超小型晶振，輕薄型晶振，高性能晶振，高穩定性晶振，高精度晶振，高品質晶振等特點，應用于：無線網絡晶振，物聯網晶振，通訊設備晶振，汽車電子晶振，醫療設備晶振，智能家居等應用。

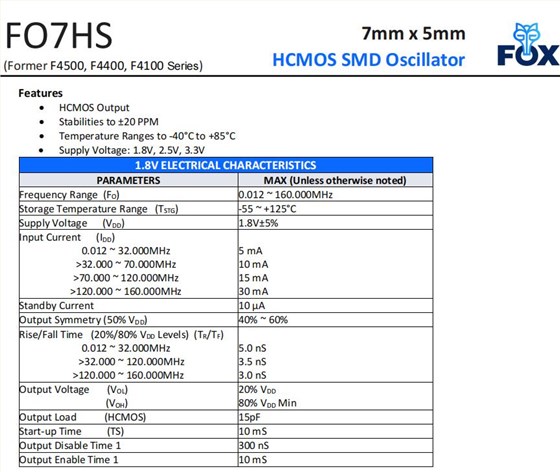

FO7HSCAE32.0-T2,FOX高穩定性晶振,7050mm,XO振蕩器,參數表
| 品牌 | FOX?？怂咕д?/span> |
| 型號 |
FO7HS |
| 物料編碼 |
FO7HSCAE32.0-T2 |
| 頻率 | 32.000MHz |
| 頻率穩定性 | ±100ppm |
| 輸出 |
HCMOS |
| 電源電壓 | 3.3V |
| 工作溫度 | -10℃至+70℃ |
| 尺寸 | 7.0x5.0x1.5mm |

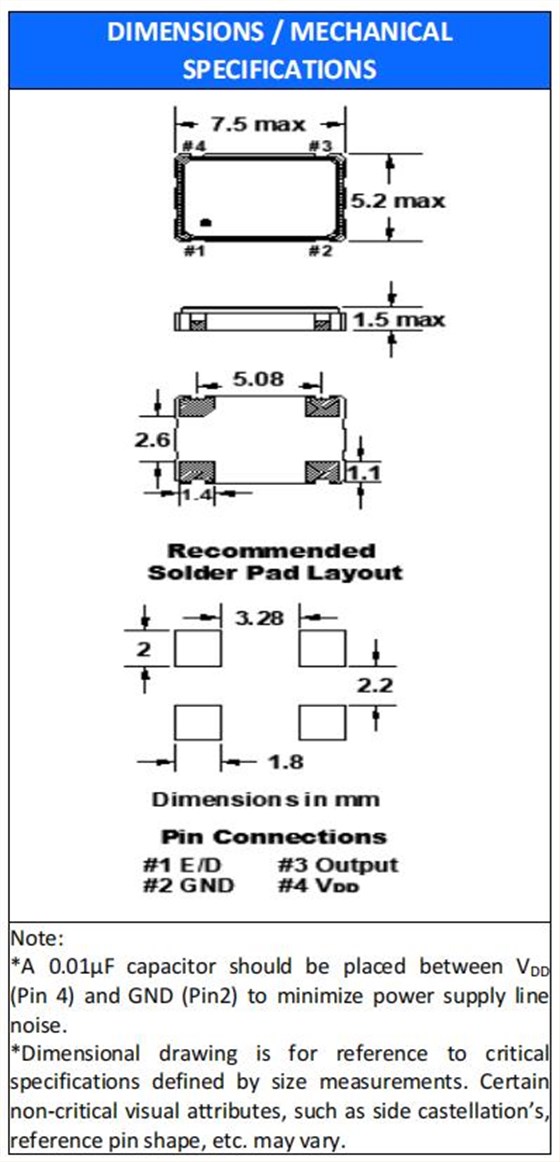

FO7HSCAE32.0-T2,FOX高穩定性晶振,7050mm,XO振蕩器,尺寸圖
| 產品編碼 | 品牌 | 型號 | 頻率 | 5070有源晶振 | 長度 | 寬度 | 高度 |
| FO7HSCAE1.8432-T1 | Fox晶振 | FO7HS | 1.8432 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE1.8432-T2 | Fox晶振 | FO7HS | 1.8432 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE10.0-T1 | Fox晶振 | FO7HS | 10 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE10.0-T2 | Fox晶振 | FO7HS | 10 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE12.0-T1 | Fox晶振 | FO7HS | 12 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE14.31818-T1 | Fox晶振 | FO7HS | 14.31818 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE14.31818-T2 | Fox晶振 | FO7HS | 14.31818 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE14.7456-T1 | Fox晶振 | FO7HS | 14.7456 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE16.0-T2 | Fox晶振 | FO7HS | 16 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE20.0-T1 | Fox晶振 | FO7HS | 20 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE20.0-T2 | Fox晶振 | FO7HS | 20 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE25.0-T2 | Fox晶振 | FO7HS | 25 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE3.6864-T1 | Fox晶振 | FO7HS | 3.6864 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE3.6864-T2 | Fox晶振 | FO7HS | 3.6864 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE30.0-T2 | Fox晶振 | FO7HS | 30 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE32.0-T2 | Fox晶振 | FO7HS | 32 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE33.333-T1 | Fox晶振 | FO7HS | 33.333 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE33.333-T2 | Fox晶振 | FO7HS | 33.333 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE4.0-T2 | Fox晶振 | FO7HS | 4 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE4.096-T1 | Fox晶振 | FO7HS | 4.096 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE40.0-T1 | Fox晶振 | FO7HS | 40 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE40.0-T2 | Fox晶振 | FO7HS | 40 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE48.0-T1 | Fox晶振 | FO7HS | 48 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE48.0-T2 | Fox晶振 | FO7HS | 48 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE50.0-T1 | Fox晶振 | FO7HS | 50 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE50.0-T2 | Fox晶振 | FO7HS | 50 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE55.0-T1 | Fox晶振 | FO7HS | 55 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE66.6667-T1 | Fox晶振 | FO7HS | 66.6667 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE66.6667-T2 | Fox晶振 | FO7HS | 66.6667 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE7.372-T1 | Fox晶振 | FO7HS | 7.372 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE7.372-T2 | Fox晶振 | FO7HS | 7.372 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAE8.0-T1 | Fox晶振 | FO7HS | 8 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAF30.0-T1 | Fox晶振 | FO7HS | 30 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
| FO7HSCAF4.096-T1 | Fox晶振 | FO7HS | 4.096 MHz | XO (Standard) | 7mm | 5mm | 1.5mm |
