產品簡介

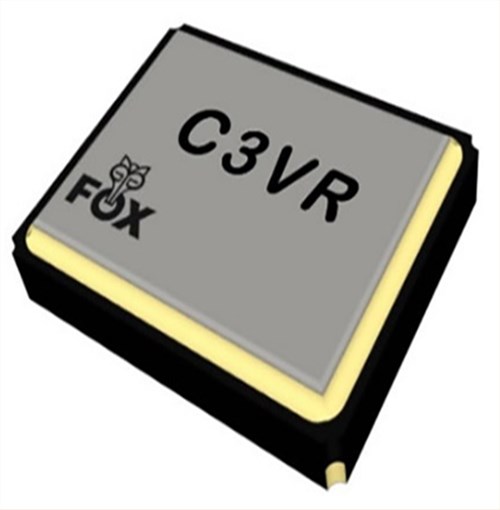

FC3VREEGM36.0-T1,FOX進口晶振,36MHz,3225mm晶振，美國FOX晶振，福克斯晶振，型號：FC3VR，編碼為：FC3VREEGM36.0-T1，頻率為：36MHz，頻率穩定性：±20ppm，頻率容差：±20ppm，負載電容：12pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x2.5x0.8mm封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，SMD晶振，3225晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。進口晶振，被廣泛應用于：通訊設備晶振，汽車電子晶振，無線藍牙晶振，數碼電子晶振，安防設備等應用。

產品詳情

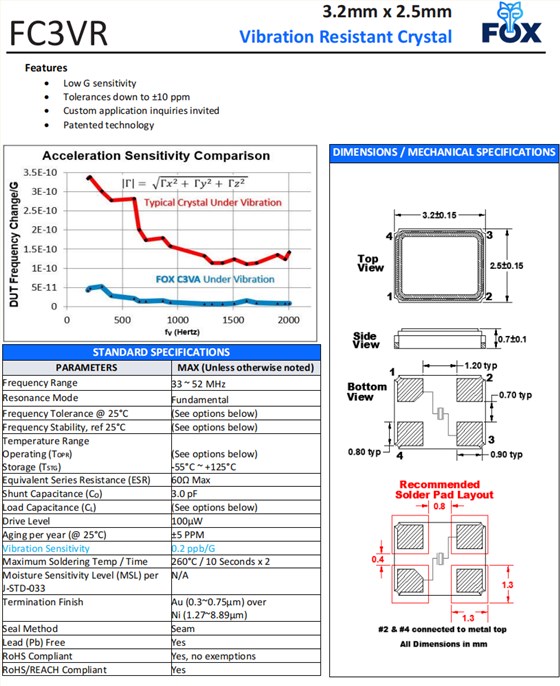

FC3VREEGM36.0-T1,FOX進口晶振,36MHz,3225mm晶振,參數表

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

36MHz

Resonance Mode

Fundamental

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

(See options below)
-55°C ~ +125°C

Equivalent Series Resistance (ESR)

60Ω Max

Shunt Capacitance (CO)

3.0 pF

Load Capacitance (CL)

(See options below)

Drive Level

100µW

Aging per year (@ 25°C)

±5 PPM

Vibration Sensitivity

0.2 ppb/G

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

N/A

Termination Finish

Au (0.3~0.75µm) over
Ni (1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

RoHS/REACH Compliant

Yes

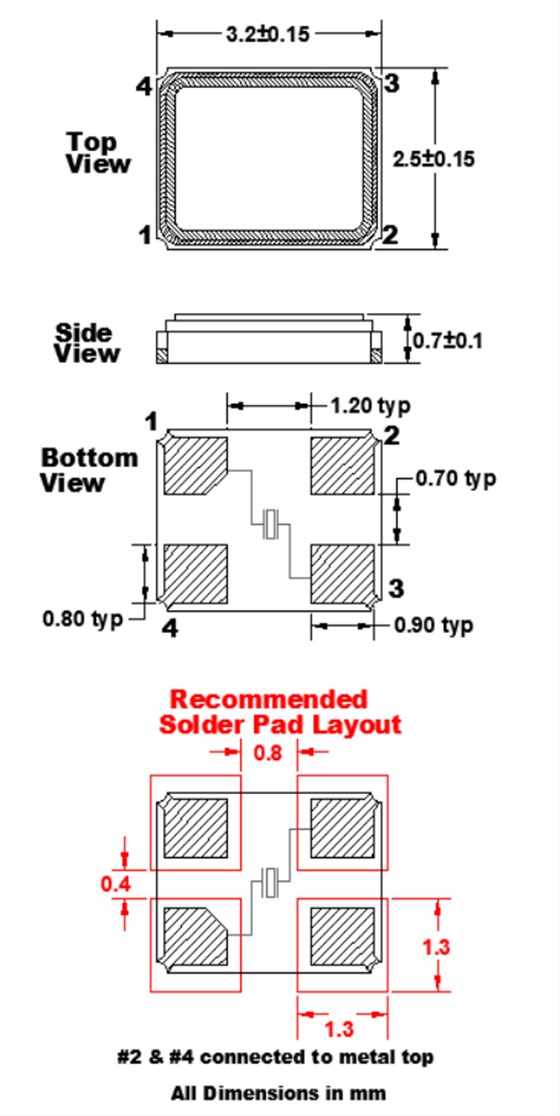

FC3VREEGM36.0-T1,FOX進口晶振,36MHz,3225mm晶振,尺寸圖

產品編碼	品牌	型號	頻率	頻率穩定性	頻率容差	負載電容
FC3VAEEGM50.0-T3	Fox晶振	FC3VA	50 MHz	±20ppm	±20ppm	12 pF
FC3VREEDM38.4-T1	Fox晶振	FC3VR	38.4 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM38.88-T1	福克斯晶振	FC3VR	38.88 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM40.0-T1	Fox晶振	FC3VR	40 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM48.0-T1	Fox晶振	FC3VR	48 MHz	±20ppm	±20ppm	8 pF
FC3VREEEM38.4-T1	Fox晶振	FC3VR	38.4 MHz	±20ppm	±20ppm	10 pF
FC3VREEGM36.0-T1	Fox晶振	FC3VR	36 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM38.4-T1	Fox晶振	FC3VR	38.4 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM38.88-T1	Fox晶振	FC3VR	38.88 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM40.0-T1	Fox晶振	FC3VR	40 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM50.0-T1	Fox晶振	FC3VR	50 MHz	±20ppm	±20ppm	12 pF
