FC5AQBBME18.0-T1,FOX晶振廠家,5032mm,兩腳貼片晶振

產品簡介

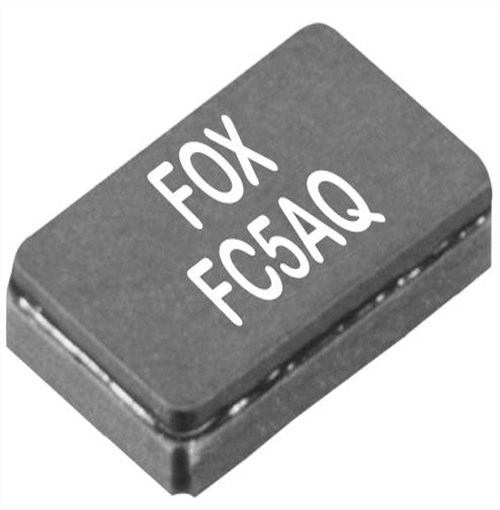

FC5AQBBME18.0-T1,FOX晶振廠家,5032mm,兩腳貼片晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC5AQ系列，編碼為：FC5AQBBME18.0-T1，頻率為：18.000MHz，頻率穩定性：±50ppm，頻率容差：±50ppm，負載電容：20pF，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：5.0*3.2mm貼片晶振，兩腳貼片晶振，無源晶振，SMD晶振，石英晶振，石英晶體諧振器，無鉛環保晶振。具有超小型，輕薄型，高品質，高性能，高質量等特點。被廣泛用于：通訊設備晶振，無線藍牙模塊，安防設備晶振，導航儀晶振，智能家居等應用。

產品詳情

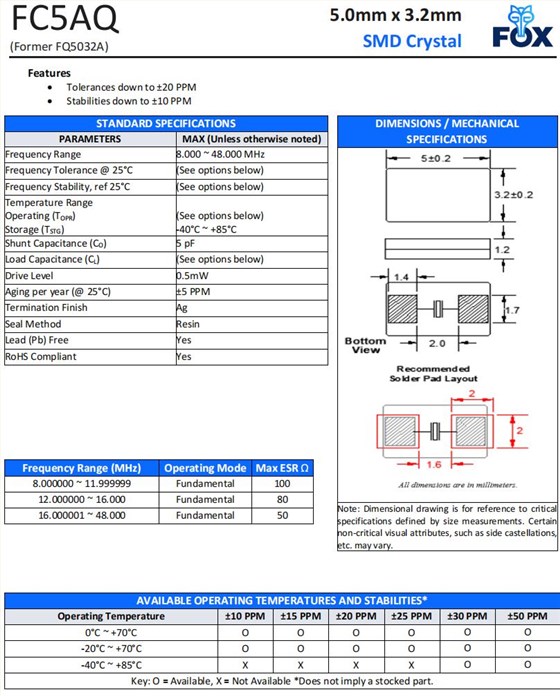

FC5AQBBME18.0-T1,FOX晶振廠家,5032mm,兩腳貼片晶振,參數表

品牌	FOX福克斯晶振
型號	FC5AQ
物料編碼	FC5AQBBME18.0-T1
頻率	18MHz
頻率穩定性	±50ppm
頻率容差	±50ppm
負載電容	20pF
工作溫度	-10°C ~ 70°C
尺寸	5.0x3.2mm

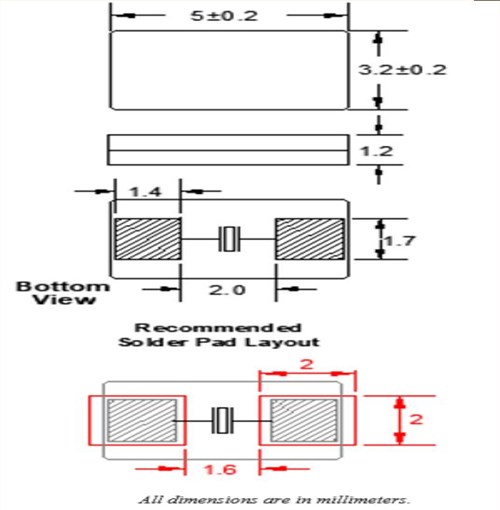

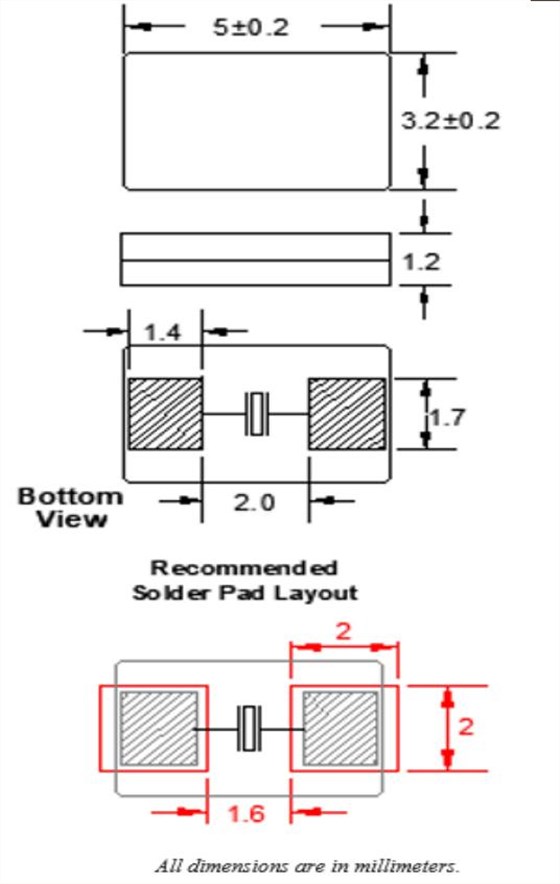

FC5AQBBME18.0-T1,FOX晶振廠家,5032mm,兩腳貼片晶振,尺寸圖

產品編碼	品牌	型號	頻率	頻率穩定性	頻率容差
FC5AQBAAM8.0-T1	Fox晶振	FC5AQ	8 MHz	±100ppm	±50ppm
FC5AQBAME22.1184-T1	Fox晶振	FC5AQ	22.1184 MHz	±100ppm	±50ppm
FC5AQBBME18.0-T1	Fox晶振	FC5AQ	18 MHz	±50ppm	±50ppm
FC5AQCCEC14.7456-T1	Fox晶振	FC5AQ	14.7456 MHz	±30ppm	±30ppm
FC5AQCCMC24.0-T1	Fox晶振	FC5AQ	24 MHz	±30ppm	±30ppm
FC5AQCCMF10.0-T1	Fox晶振	FC5AQ	10 MHz	±30ppm	±30ppm
FC5AQCCMM12.0-T1	Fox晶振	FC5AQ	12 MHz	±30ppm	±30ppm
FC5AQECLM25.0-T1	Fox晶振	FC5AQ	25 MHz	±30ppm	±20ppm
FC5BACAGI12.0-T1	Fox晶振	FC5BA	12 MHz	±100ppm	±30ppm
FC5BACALI12.0-T1	石英晶振	FC5BA	12 MHz	±100ppm	±30ppm
FC5BACBEI12.0-T1	Fox晶振	FC5BA	12 MHz	±50ppm	±30ppm
FC5BACBLI8.0-1-T1	Fox晶振	FC5BA	8 MHz	±50ppm	±30ppm
FC5BACBMI12.0-T1	Fox晶振	FC5BA	12 MHz	±50ppm	±30ppm
FC5BAEEEM8.0-T1	Fox晶振	FC5BA	8 MHz	±20ppm	±20ppm
FC5BAEEMM8.0-T1	Fox晶振	FC5BA	8 MHz	±20ppm	±20ppm
FC5BQCBJF12.0-1-T1	Fox晶振	FC5BQ	12 MHz	±50ppm	±30ppm
FC5BQCBKM12.0-T1	Fox晶振	FC5BQ	12 MHz	±50ppm	±30ppm
FC5BQCCMC12.0-T1	Fox晶振	FC5BQ	12 MHz	±30ppm	±30ppm
FC5BQCCMC16.0-T1	Fox晶振	FC5BQ	16 MHz	±30ppm	±30ppm
FC5BQCCMC20.0-T1	Fox晶振	FC5BQ	20 MHz	±30ppm	±30ppm
FC5BQCCMC24.0-T1	Fox晶振	FC5BQ	24 MHz	±30ppm	±30ppm
FC5BQCCMC24.576-T1	Fox晶振	FC5BQ	24.576 MHz	±30ppm	±30ppm
FC5BQCCMC25.0-T1	Fox晶振	FC5BQ	25 MHz	±30ppm	±30ppm
FC5BQCCMM10.0-T1	Fox晶振	FC5BQ	10 MHz	±30ppm	±30ppm
FC5BQCCMM12.0-T1	Fox晶振	FC5BQ	12 MHz	±30ppm	±30ppm
FC5BQCCMM16.0-T1	Fox晶振	FC5BQ	16 MHz	±30ppm	±30ppm
FC5BQCCMM20.0-T1	Fox晶振	FC5BQ	20 MHz	±30ppm	±30ppm
FC5BQCCMM24.0-T1	Fox晶振	FC5BQ	24 MHz	±30ppm	±30ppm
FC5BQCCMM25.0-T1	Fox晶振	FC5BQ	25 MHz	±30ppm	±30ppm
FC5BQCCMM8.0-T1	Fox晶振	FC5BQ	8 MHz	±30ppm	±30ppm
