當前位置：首頁 » 歐美進口晶振 » Cardinal晶振 » Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振

prevnext

Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振

頻率：8MHZ

尺寸：7.0×5.0mm

Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振，尺寸7.0×5.0mm，頻率8MHZ，美國卡迪納爾晶振，歐美進口晶振，Cardinal石英晶振，7050mm貼片晶振，石英晶體諧振器，石英貼片晶振，8MHZ石英晶振，SMD晶振，無源晶振，無源貼片晶振，網絡通訊設備晶振，物聯網晶振，無線藍牙晶振，移動通信晶振，測試測量晶振，小型設備晶振，外圍設備晶振，數字音頻晶振，播放器晶振，衛星定位晶振，高品質貼片晶振，高性能石英晶振，低損耗無源晶體，低功耗晶振，低耗能晶振，具有良好的可靠性能。

無源晶體產品廣泛應用各大應用程序，比較常用于移動通信，測試測量，小型設備，外圍設備，數字音頻，播放器，衛星定位等領域。Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振.

訂購熱線：0755-27876201

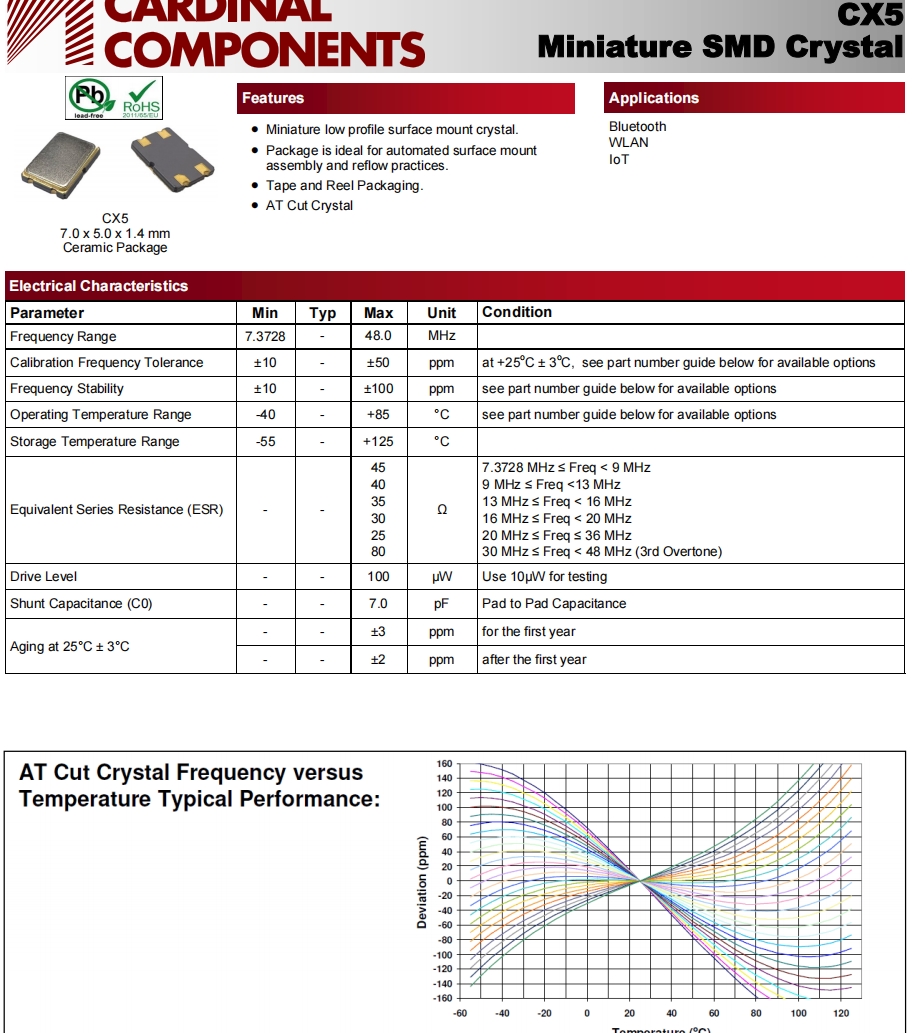

Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振 參數表

Parameter

Min

Typ

Max

Unit

Condition

Frequency Range

MHz

Calibration Frequency Tolerance

±10

±50

ppm

at +25oC ± 3oC, see part number guide below for available options

Frequency Stability

±10

±100

ppm

see part number guide below for available options

Operating Temperature Range

-40

+85

°C

see part number guide below for available options

Storage Temperature Range

-55

+125

°C

Equivalent Series Resistance (ESR)

45
40
35
30
25
80

7.3728 MHz ≤ Freq < 9 MHz
9 MHz ≤ Freq <13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 20 MHz
20 MHz ≤ Freq ≤ 36 MHz
30 MHz ≤ Freq < 48 MHz (3rd Overtone)

Drive Level

100

µW

Use 10µW for testing

Shunt Capacitance (C0)

7.0

Pad to Pad Capacitance

Aging at 25°C ± 3°C

±3

ppm

for the first year

±2

ppm

after the first year

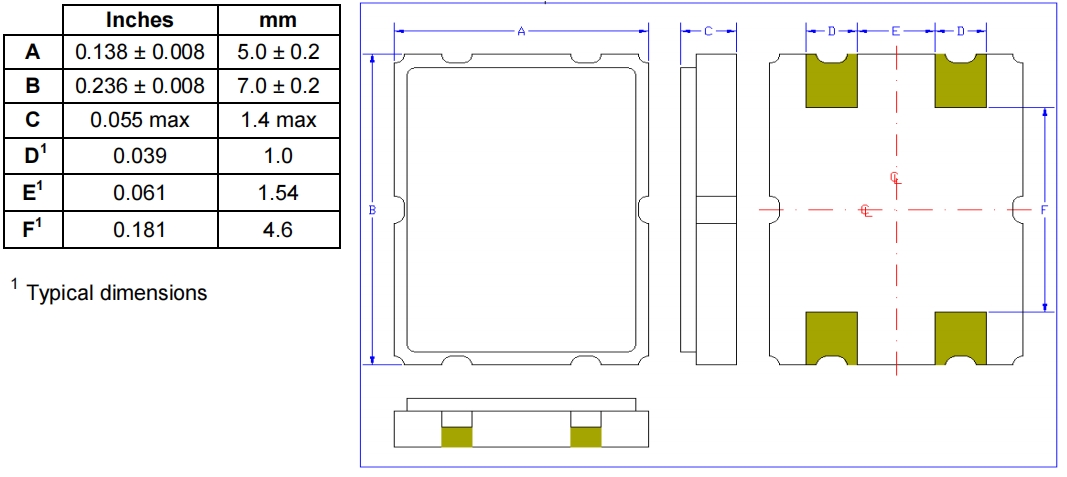

Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振 尺寸圖

Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振

石英晶振產品特性：

小型薄型表面貼裝水晶。

包裝是自動表面安裝的理想選擇組裝和回流實踐。

磁帶和卷軸包裝。

AT切割水晶

Manufacturer Part Number 原廠編碼	歐美晶振	Description 參數	Series型號	Frequency	Frequency Stability頻率穩定度	Operating Temperature 工作溫度
CSM1Z-A0B2C3-50-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CSM1	27MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CSM1	7.3728MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-6.144D18	Cardinal晶振	CRYSTAL 6.1440MHZ 18PF SMD	CSM1	6.144MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A5B2C3-40-27.0D18-F	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CSM1	27MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-120-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CSM1	7.3728MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A0B2C3-50-28.63636D18	Cardinal晶振	CRYSTAL 28.63636MHZ 18PF SMD	CSM1	28.63636MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A5B2C3-60-9.216D18	Cardinal晶振	CRYSTAL 9.2160MHZ 18PF SMD	CSM1	9.216MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-120-6.0D18	Cardinal晶振	CRYSTAL 6.0000MHZ 18PF SMD	CSM1	6MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-26.0D18-F	Cardinal晶振	CRYSTAL 26.0000MHZ 18PF SMD	CSM4	26MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A5B2C5-120-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CSM1	7.3728MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-18.0D18	Cardinal晶振	CRYSTAL 18.0000MHZ 18PF SMD	CSM1	18MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A0B2C3-50-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A0B2C3-80-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CSM1	10MHz	±50ppm	-10°C ~ 60°C
CSM4Z-A2B3C3-180-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM4	4MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A5B2C5-150-4.9152D18	Cardinal晶振	CRYSTAL 4.9152MHZ 18PF SMD	CSM1	4.9152MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-60-9.8304D18	Cardinal晶振	CRYSTAL 9.8304MHZ 18PF SMD	CSM4	9.8304MHz	±30ppm	-40°C ~ 85°C
CSM1-A1B2C3-70-14.7456D20	Cardinal晶振	CRYSTAL 14.7456MHZ 20PF SMD	CSM1	14.7456MHz	±50ppm	-10°C ~ 70°C
CSM1-A5B2C5-180-3.579545D18	Cardinal晶振	CRYSTAL 3.579545MHZ 18PF SMD	CSM1	3.579545MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C5-150-5.0D18	Cardinal晶振	CRYSTAL 5.0000MHZ 18PF SMD	CSM1	5MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-11.0592D18	Cardinal晶振	CRYSTAL 11.0592MHZ 18PF SMD	CSM4	11.0592MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A0B2C3-80-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A0B2C3-80-11.0592D18	Cardinal晶振	CRYSTAL 11.0592MHZ 18PF SMD	CSM1	11.0592MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A5B2C5-60-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-30-25.0D20	Cardinal晶振	CRYSTAL 25.0000MHZ 20PF SMD	CSM1	25MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A3B1C3-200-3.6864D18	Cardinal晶振	CRYSTAL 3.6864MHZ 18PF SMD	CSM1	3.6864MHz	±100ppm	-55°C ~ 125°C
CSM1Z-A5B2C3-60-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CSM4	16MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-60-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CSM4	7.3728MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A5B2C3-40-13.0D18	Cardinal晶振	CRYSTAL 13.0000MHZ 18PF SMD	CSM1	13MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX5	27MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CRYSTAL 24.5760MHZ 18PF SMD	CX5	24.576MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	-20°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	-10°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	-20°C ~ 70°C
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	-10°C ~ 60°C
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-1966080D18	Cardinal晶振	CRYSTAL 19.6608MHZ 18PF SMD	CX532	19.6608MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-33.0D18	Cardinal晶振	CRYSTAL 33.0000MHZ 18PF SMD	CX532	33MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-14.7456D18	Cardinal晶振	CRYSTAL 17.7456MHZ 18PF SMD	CX532	14.7456MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX532	12MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-50.0D18	Cardinal晶振	CRYSTAL 50.0000MHZ 18PF SMD	CX532	50MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CRYSTAL 30.0000MHZ 18PF SMD	CX532	30MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	-20°C ~ 70°C
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±50ppm	-20°C ~ 70°C
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	-40°C ~ 85°C
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	-40°C ~ 85°C
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX5	25MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX532	8MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A0B2C3-70-14.7456D18	Cardinal晶振	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±50ppm	-10°C ~ 60°C

Cardinal無線藍牙晶振 CX5Z-A5B2C5-70-8.0D18 CX5貼片環保晶振
