產品簡介

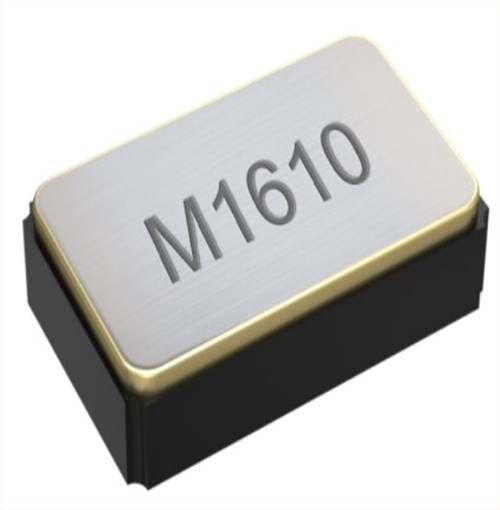

PETERMANN時鐘晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C),通訊6G晶振，德國進口晶振，PETERMANN彼得曼晶振，型號：M1610，編碼為：M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)，頻率為：32.768K晶振，負載電容12.5pF，精度±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：1.6x1.0mm封裝，兩腳貼片晶振，石英晶振，無源晶振，手表晶體，SMD石英晶體，石英晶體諧振器，無鉛晶振。最小的可用的低成本手表水晶，具有超小型，輕薄型，優異的抗沖擊性，高精度，高性能，高品質，耐熱及耐環境等特點。石英貼片晶振被廣泛應用于：通訊設備，無線網絡，藍牙模塊，時鐘晶振，可穿戴設備，鐘表電子，智能家居，汽車電子，儀器儀表設備，數碼電子，數字顯示等應用。

產品詳情

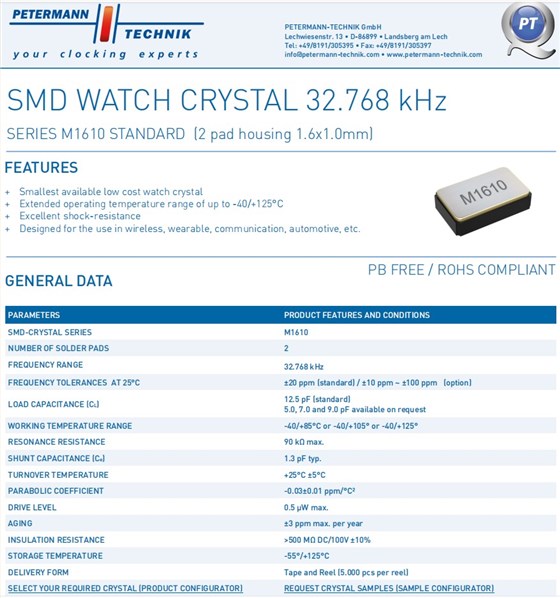

PETERMANN時鐘晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C),通訊6G晶振參數表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES	M1610
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard)
LOAD CAPACITANCE (CL)	5.0, 7.0 and 9.0 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C or -40/+105° or -40/+125°
RESONANCE RESISTANCE	90 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.03±0.01 ppm/°C²
DRIVE LEVEL	0.5 μW max.
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-55°/+125°C
DELIVERY FORM	Tape and Reel (5.000 pcs per reel)
