AAS50M000000FLE16H,7050mm,AA系列晶體,50MHZ,STD貼片晶振,美國進口晶振,STD石英晶振,Standard Crystal,7050mm貼片晶振,50MHZ石英晶振,石英振動子,四腳貼片晶振,無源石英晶振,SMD晶振,尺寸7.0×5.0mm,頻率50MHZ,無鉛環保晶振,低功耗晶振,高品質晶振,高性能晶振,娛樂設備晶振,視聽設備晶振,通信應用晶振,微處理器晶振.
AAS50M000000FLE16H,7050mm,AA系列晶體,50MHZ,STD貼片晶振特點:
貼片類型無源晶體
優異的耐熱性和抗震性
Pb-free /通過無鉛認證

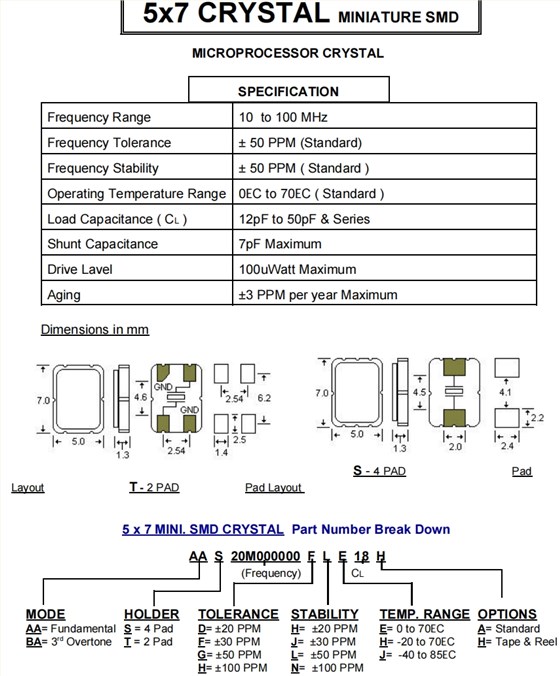

AAS50M000000FLE16H,7050mm,AA系列晶體,50MHZ,STD貼片晶振 參數表
| Frequency Range | 50 MHz | |||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||
| Aging | ±3 PPM per year Maximum | |||||||||

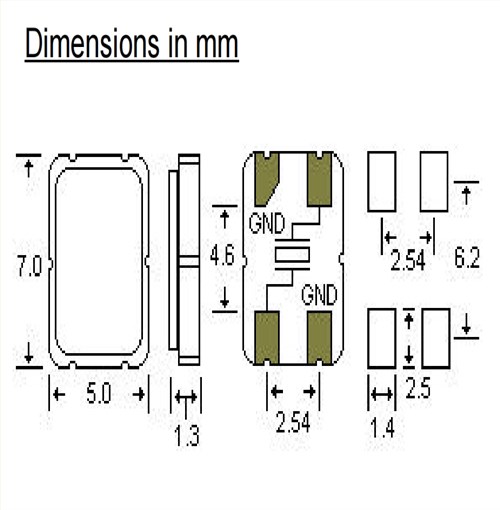

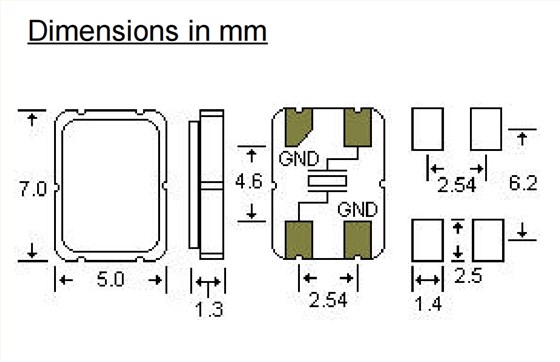

AAS50M000000FLE16H,7050mm,AA系列晶體,50MHZ,STD貼片晶振 尺寸圖
