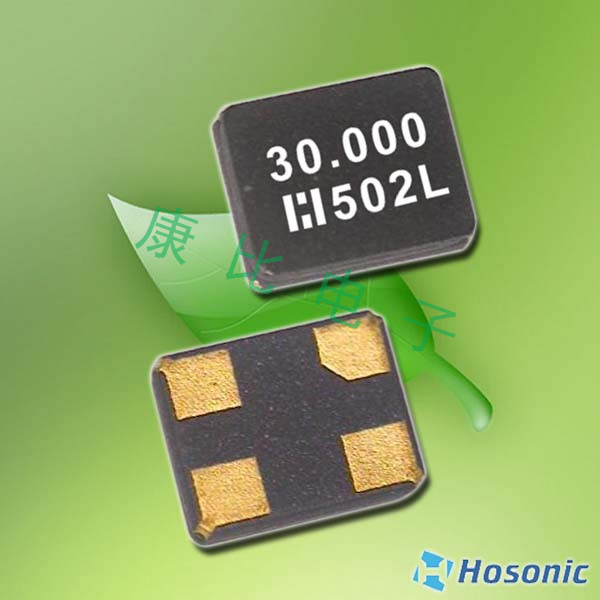

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振

頻率：26MHZ

尺寸：3.2x2.5mm

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振，尺寸3.2x2.5mm，頻率26MHZ，臺灣無源晶振，陶瓷諧振器，四腳貼片晶振，無源貼片晶振，SMD晶振，無源晶振，SMD晶體諧振器，3225mm無源晶振，26MHZ貼片晶振，無鉛環保晶振，無線控制器設備專用晶振，便攜式設備晶振，小型設備晶振，數碼相機晶振，娛樂設備晶振，數字視頻專用晶振，6GWIFI應用晶振，輕薄型晶振，低損耗晶振，高品質晶振，具有高品質低損耗的特點。

無源晶體產品超級適合用于無線控制器設備和其他便攜式消費產品，小型設備，數碼相機，娛樂設備，數字視頻，6GWIFI應用等領域。E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振.


訂購熱線：0755-27876201
QQ咨詢 點擊這里給我發消息

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振，尺寸3.2x2.5mm，頻率26MHZ，臺灣無源晶振，陶瓷諧振器，四腳貼片晶振，無源貼片晶振，SMD晶振，無源晶振，SMD晶體諧振器，3225mm無源晶振，26MHZ貼片晶振，無鉛環保晶振，無線控制器設備專用晶振，便攜式設備晶振，小型設備晶振，數碼相機晶振，娛樂設備晶振，數字視頻專用晶振，6GWIFI應用晶振，輕薄型晶振，低損耗晶振，高品質晶振，具有高品質低損耗的特點。

無源晶體產品超級適合用于無線控制器設備和其他便攜式消費產品，小型設備，數碼相機，娛樂設備，數字視頻，6GWIFI應用等領域。E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振.

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振      參數表

Item
Frequency Range 		Type
F0 		E3FB
26MHz 160to 19.999MHz 20 to 23.999MHz 24 to 64.00MHz
Mode of Vibration Fundamental
Load Capacitance CL 6 to 20pF
Frequency Tolerance ΔF/ F0 ±10ppm, ±15ppm, ±30ppm(At 25℃)
Equivalent Series Resistance ESR 120Ω max. 100Ω max. 80Ω max. 50Ω max.
Temperature Stability TC ±10ppm, ±15ppm, ±30ppm(Refer to 25℃)
Operating Temperature Range TOPR -20~+70℃,-30~+85℃ Option
Storage Temperature Range TSTG -55~+125℃
Shunt Capacitance C0 3pF max.
Insulator Resistance      IR 500MΩ min. (At 100VDC)
Drive Level DL 50μW(100μW max.)
Aging      Fa ±2ppm max. (At 25℃,First year)
Packing Unit 3000pcs/reel

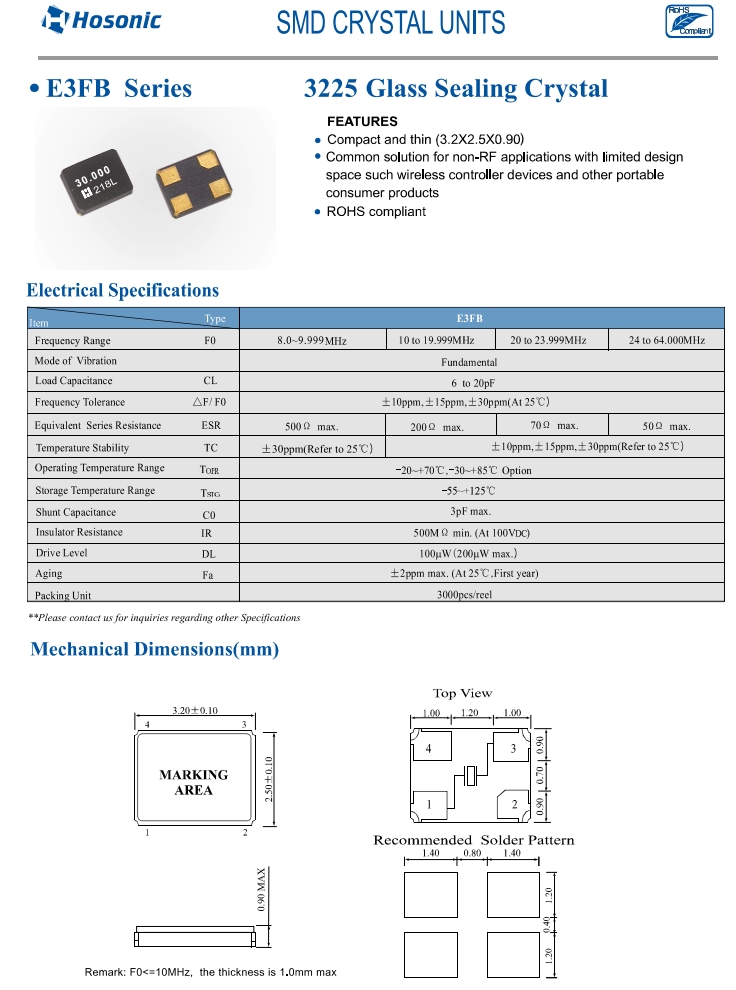

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振    尺寸圖

E3FB(Former HCX-3FB 3225

貼片無源晶振產品特征:

小巧輕薄（3.2*2.5*0.9）

設計有限的非射頻應用的通用解決方案

空間這樣的無線控制器設備和其他便攜式消費產品

符合RoHS

E3FB 1

更多相關Hosonic鴻星晶振型號

Mfr Part # Supplier Series Frequency Frequency Stability穩定度 Frequency Tolerance Load Capacitance
E3SB25E00003FE Hosonic鴻星晶振 E3SB 25 MHz ±15ppm ±15ppm 18pF
E3SB24E004000E Hosonic鴻星晶振 E3SB 24 MHz ±10ppm ±10ppm 18pF
E3SB32E001500E Hosonic鴻星晶振 E3SB 32 MHz ±10ppm ±10ppm 12pF
E3SB37E0X0004E Hosonic鴻星晶振 E3SB 37.4 MHz ±10ppm ±10ppm 16pF
E3SB25E001803E Hosonic鴻星晶振 E3SB 25 MHz ±20ppm ±20ppm 12pF
E3SB16E0X000WE Hosonic鴻星晶振 E3SB 16.384 MHz ±10ppm ±10ppm 10pF
E3SB27E0X000VE Hosonic鴻星晶振 E3SB 27.12 MHz ±10ppm ±10ppm 10pF
E3SB27E00000DE Hosonic鴻星晶振 E3SB 27 MHz ±10ppm ±10ppm 10pF
E3SB50E00000AE Hosonic鴻星晶振 E3SB 50 MHz ±10ppm ±10ppm 18pF
E3SB26E000011E Hosonic鴻星晶振 E3SB 26 MHz ±10ppm ±10ppm 12pF
E2SB40E000104ECBB8 Hosonic鴻星晶振 E2SB 40 MHz ±10ppm ±7ppm 12pF
E2SB38E0X0300E Hosonic鴻星晶振 E2SB 38.4 MHz ±10ppm ±10ppm 8pF
E3SB8E0000003E Hosonic鴻星晶振 E3SB 8 MHz ±30ppm ±30ppm 10pF
E2SB40E000107E Hosonic鴻星晶振 E2SB 40 MHz -12ppm, +20ppm ±5ppm 12pF
E2SB40E00010AE Hosonic鴻星晶振 E2SB 40 MHz ±10ppm ±7ppm 7pF
E3SB24E00000QE Hosonic鴻星晶振 E3SB 24 MHz ±10ppm ±10ppm 10pF
E3SB40E00010JE Hosonic鴻星晶振 E3SB 40 MHz -12ppm, +20ppm ±5ppm 12pF
E3SB12E000022E Hosonic鴻星晶振 E3SB 12 MHz ±30ppm ±30ppm 18pF
E3SB16E000028E Hosonic鴻星晶振 E3SB 16 MHz ±10ppm ±10ppm 10pF
E3SB40E00090DE Hosonic鴻星晶振 E3SB 40 MHz ±20ppm ±10ppm 12pF
E3SB38E0X0006E Hosonic鴻星晶振 E3SB 38.4 MHz ±10ppm ±10ppm 10pF
E3SB40E00010KECBB8 Hosonic鴻星晶振 E3SB 40 MHz ±15ppm ±7ppm 6pF
E3SB39E000006E Hosonic鴻星晶振 E3SB 39 MHz ±15ppm ±8ppm 10pF
E3SB38E0X1806E Hosonic鴻星晶振 E3SB 38.4 MHz ±20ppm ±20ppm 10pF
E3SB48E000801ECBB8 Hosonic鴻星晶振 E3SB 48 MHz ±10ppm ±10ppm 12pF
E3SB12E00004EE Hosonic鴻星晶振 E3SB 12 MHz ±35ppm ±8ppm 12pF
E2SB27E0X0000E Hosonic鴻星晶振 E2SB 27.12 MHz ±10ppm ±10ppm 8pF
E2SB24E001801E Hosonic鴻星晶振 E2SB 24 MHz ±20ppm ±20ppm 12pF
E2SB40E000108E Hosonic鴻星晶振 E2SB 40 MHz ±15ppm ±7ppm 6pF
E2SB12E000005E Hosonic鴻星晶振 E2SB 12 MHz ±20ppm ±20ppm 12pF
E3SB14E0X0002E Hosonic鴻星晶振 E3SB 14.7456 MHz ±30ppm ±30ppm 12pF
E3SB10E000007E Hosonic鴻星晶振 E3SB 10 MHz ±30ppm ±30ppm 12pF
E3SB25E00000DE Hosonic鴻星晶振 E3SB 25 MHz ±10ppm ±10ppm 10pF
E3FB24E00000KE Hosonic鴻星晶振 E3FB 24 MHz ±30ppm ±30ppm 12pF
E3SB48E00000TE Hosonic鴻星晶振 E3SB 48 MHz ±30ppm ±30ppm 18pF
E3SB50E00002AE Hosonic鴻星晶振 E3SB 50 MHz ±18ppm ±7ppm 9pF
E2SB16E00000ME Hosonic鴻星晶振 E2SB 16 MHz ±30ppm ±30ppm 12pF
E2SB26E001201E Hosonic鴻星晶振 E2SB 26 MHz ±13ppm ±5ppm 9pF
E2SB32E001201E Hosonic鴻星晶振 E2SB 32 MHz ±10ppm ±10ppm 12pF
E3SB24E000026E Hosonic鴻星晶振 E3SB 24MHz ±10ppm 12pF
E3SB24E000022E Hosonic鴻星晶振 E3SB 24MHz ±20ppm 12pF
E3SB12E000024E Hosonic鴻星晶振 E3SB 12MHz ±20ppm 18pF
E2SB32E00000LE Hosonic鴻星晶振 E2SB 32MHz ±10ppm 9pF
E3SB37E0X000HE Hosonic鴻星晶振 E3SB 37.4MHz ±10ppm 12pF
E3SB25E00001HE Hosonic鴻星晶振 E3SB 25MHz ±15ppm 16pF
E3SB26E00010CE Hosonic鴻星晶振 E3SB 26.000MHZ ±10ppm 7.5pF
E3SB16E00000QE Hosonic鴻星晶振 E3SB 16MHz ±10ppm 10pF
E3SB25E000028E Hosonic鴻星晶振 E3SB 25MHz ±30ppm 18pF
E3SB32E00001ME Hosonic鴻星晶振 E3SB 32MHz 15ppm 9pF
E3SB16E00000CE Hosonic鴻星晶振 E3SB 16MHz ±10ppm 9pF
E3SB25E00002CE Hosonic鴻星晶振 E3SB 25MHz ±15ppm 18pF
E3SB12E00003KE Hosonic鴻星晶振 E3SB 12MHz ±10ppm 18pF
E3SB32E000020E Hosonic鴻星晶振 E3SB 32MHz ±10ppm 9pF
E3SB8E000000CE Hosonic鴻星晶振 E3SB 8MHz ±20ppm 20pF
E3SB16E000013E Hosonic鴻星晶振 E3SB 16MHz ±10ppm 12pF
E3SB26E00004QE Hosonic鴻星晶振 E3SB 26MHz ±10ppm 20pF
E3SB40E00001BE Hosonic鴻星晶振 E3SB 40MHz ±10ppm 15pF
E2SB37E0X0002E Hosonic鴻星晶振 E2SB 37.4MHz ±10ppm 10pF
E3SB40E00004GE Hosonic鴻星晶振 E3SB 40MHz ±8ppm 10pF
E3FB26E004203E Hosonic鴻星晶振 E3FB 26MHz ±10ppm 7.3pF
E2SB24E000016E Hosonic鴻星晶振 E2SB 24MHz ±10ppm 20pF
E2SB54E000000E Hosonic鴻星晶振 E2SB 54MHz ±10ppm 10pF
E2SB48E000009E Hosonic鴻星晶振 E2SB 48MHz ±10ppm 12pF
E2SB50E00000EE Hosonic鴻星晶振 E2SB 50MHz ±14ppm 19pF
E2SB37E0X0004E Hosonic鴻星晶振 E2SB 37.4MHz ±10ppm 12pF
E3SB40E00004TE Hosonic鴻星晶振 E3SB 40MHz ±10ppm 9pF
E3SB40E00000DE Hosonic鴻星晶振 E3SB 40MHz ±10ppm 12pF
E2SB40E000007E Hosonic鴻星晶振 E2SB 40MHz ±10ppm 10pF
E2SB40E000003E Hosonic鴻星晶振 E2SB 40MHz ±10ppm 8pF
E3SB40E000030E Hosonic鴻星晶振 E3SB 40MHz ±10ppm 8pF
E2SB24E00001NE Hosonic鴻星晶振 E2SB 24MHz ±15ppm 16pF
E3SB27E00002SE Hosonic鴻星晶振 E3SB 27MHz ±10ppm 20pF
E2SB40E00000RE Hosonic鴻星晶振 E2SB 40MHz ±30ppm 20pF
E3SB26E000036E Hosonic鴻星晶振 E3SB 26MHz ±20ppm 20pF
E3SB48E00000CE Hosonic鴻星晶振 E3SB 48MHz ±10ppm 10pF
E3SB54E000005E Hosonic鴻星晶振 E3SB 54MHz ±15ppm 19pF
E2SB38E0X0007E Hosonic鴻星晶振 E2SB 38.400MHz ±10ppm 10pF
E2SB54E000009E Hosonic鴻星晶振 E2SB 54MHz ±5ppm 19pF
E3SB50E000001E Hosonic鴻星晶振 E3SB 50MHz ±10ppm 10pF
E3SB12E00001SE Hosonic鴻星晶振 E3SB 12MHz ±30ppm 16pF
