ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon無源晶振

頻率：13.560MHz

尺寸：11.5x4.7x4.2mm

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon無源晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABLS系列，編碼為：ABLS-13.560MHZ-10-R20-D-T，頻率為：13.560MHz，頻率穩定性：±50ppm，頻率容差：±50ppm，負載電容：10pF，工作溫度范圍：-40℃至+80℃，是一款小體積晶振尺寸：11.5x4.7x4.2mm封裝，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振。具有超小型，輕薄型，高品質，耐熱及耐環境等特點。應用于：計算機晶振、調制解調器、微處理器晶振，無線應用程序。
訂購熱線：0755-27876201
QQ咨詢 點擊這里給我發消息

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon無源晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABLS系列，編碼為：ABLS-13.560MHZ-10-R20-D-T，頻率為：13.560MHz，頻率穩定性：±50ppm，頻率容差：±50ppm，負載電容：10pF，工作溫度范圍：-40℃至+80℃，是一款小體積晶振尺寸：11.5x4.7x4.2mm封裝，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振。具有超小型，輕薄型，高品質，耐熱及耐環境等特點。應用于：計算機晶振、調制解調器、微處理器晶振，無線應用程序。

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon無源晶振，產品特點：

●適用于RoHS回流

●低輪廓晶體貼片晶振

●具有緊密的穩定性和擴展的溫度范圍

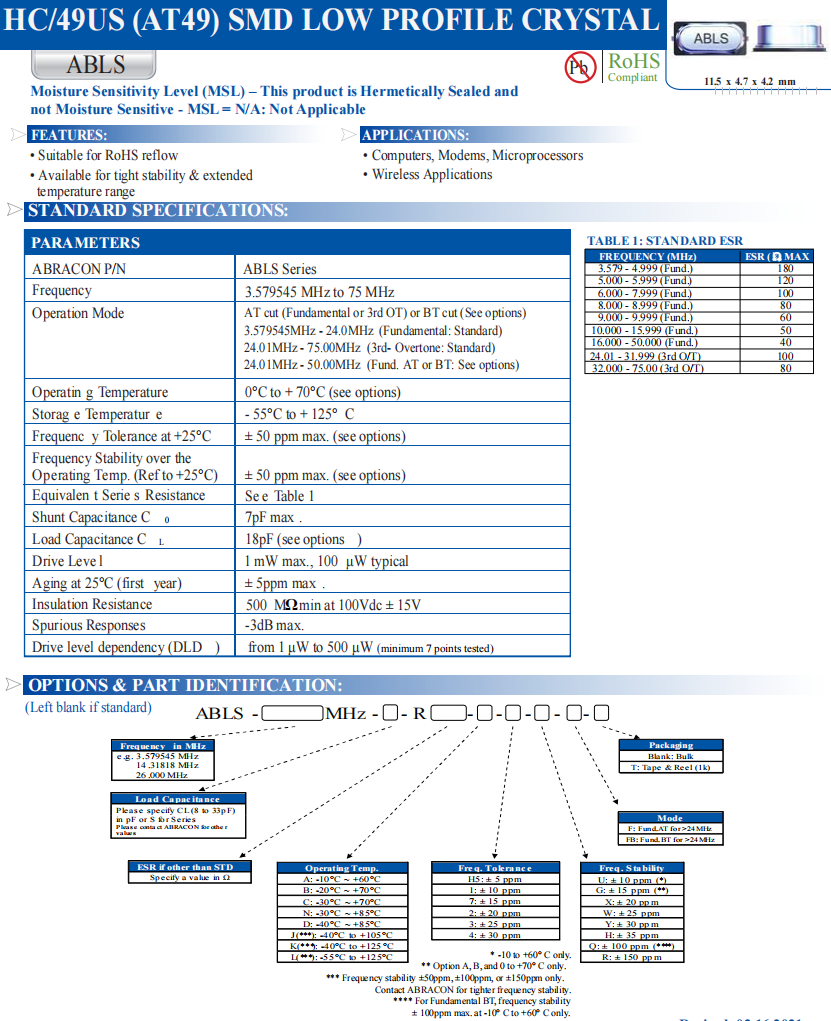

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon無源晶振,參數表

ABRACON P/N ABLS Series
Frequency  13.56 MHz
Operation Mode AT cut (Fundamental or 3rd OT) or BT cut (See options)
3.579545MHz - 24.0MHz (Fundamental: Standard)
24.01MHz - 75.00MHz (3rd- Overtone: Standard)
24.01MHz - 50.00MHz (Fund. AT or BT: See options)
Operatin g Temperature 0°C to + 70°C (see options)
Storag e Temperatur e - 55°C to + 125° C
Frequenc y Tolerance at +25°C ± 50 ppm max. (see options)
Frequency Stability over the ± 50 ppm max. (see options)
Operating Temp. (Ref to +25°C)
Equivalen t Serie s Resistance See Table 1
Shunt Capacitance C 0 7pF max
Load Capacitance C L 18pF (see options )
Drive Leve l 1 mW max., 100 μW typical
Aging at 25°C (first year) ± 5ppm max .
Insulation Resistance 500 MΩ min at 100Vdc ± 15V
Spurious Responses -3dB max
Drive level dependency (DLD ) from 1 μW to 500 μW (minimum 7 points tested)

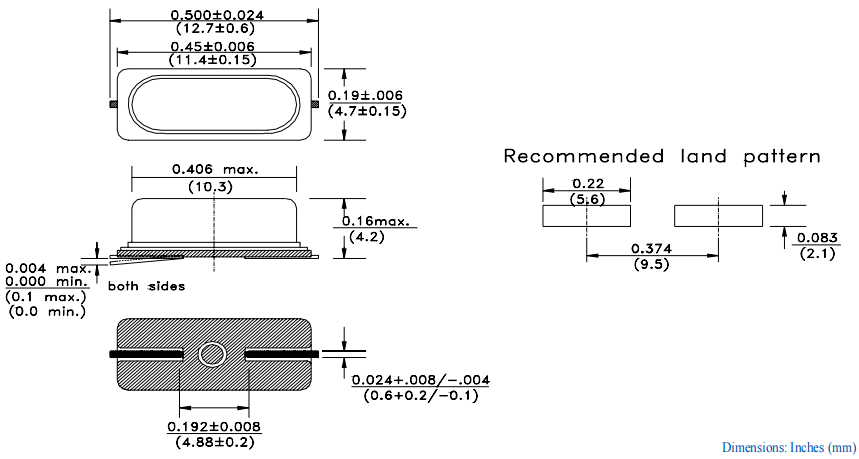

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon無源晶振,尺寸圖

ABLS尺寸

ABLS規格

石英晶體諧振器 品牌 型號 頻率 長度 寬度 高度
ABLS-10.000MHZ-16-A-4-H-T Abracon晶振 ABLS 10MHz 11.4mm 4.7mm 4.2mm
ABLS-12.11876MHZ-10-D4Y-T Abracon晶振 ABLS 12.11876MHz 11.4mm 4.7mm 4.2mm
ABLS-12.1496MHZ-10-D4Y-T Abracon晶振 ABLS 12.1496MHz 11.4mm 4.7mm 4.2mm
ABLS-12.1875MHZ-10-R20-D-T Abracon晶振 ABLS 12.1875MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-20-B-3-H-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-20-B-4-Y-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-20-L-4-Q-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-B2-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-B4-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-D-3-Y-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-D-4-Y-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-K4T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.288MHZ-L4Q-T Abracon晶振 ABLS 12.288MHz 11.4mm 4.7mm 4.2mm
ABLS-12.98883MHZ-10-D4Y-T Abracon晶振 ABLS 12.98883MHz 11.4mm 4.7mm 4.2mm
ABLS-13.000MHZ-B4-T Abracon晶振 ABLS 13MHz 11.4mm 4.7mm 4.2mm
ABLS-13.000MHZ-K4T Abracon晶振 ABLS 13MHz 11.4mm 4.7mm 4.2mm
ABLS-13.000MHZ-L4Q-T Abracon晶振 ABLS 13MHz 11.4mm 4.7mm 4.2mm
ABLS-13.02187MHZ-10-D4Y-T Abracon晶振 ABLS 13.02187MHz 11.4mm 4.7mm 4.2mm
ABLS-13.02519MHZ-10-K4Q-T Abracon晶振 ABLS 13.02519MHz 11.4mm 4.7mm 4.2mm
ABLS-13.0625MHZ-10-K4Q-T Abracon晶振 ABLS 13.0625MHz 11.4mm 4.7mm 4.2mm
ABLS-13.0625MHZ-10-R20-D-T Abracon晶振 ABLS 13.0625MHz 11.4mm 4.7mm 4.2mm
ABLS-13.225625MHZ-A2Y-T Abracon晶振 ABLS 13.225625MHz 11.4mm 4.7mm 4.2mm
ABLS-13.262250MHZ-10-J4Y-T Abracon晶振 ABLS 13.26225MHz 11.4mm 4.7mm 4.2mm
ABLS-13.48352MHZ-10-D4Y-T Abracon晶振 ABLS 13.48352MHz 11.4mm 4.7mm 4.2mm
ABLS-13.4916MHZ-10-R20-D-T 艾博康晶振 ABLS 13.4916MHz 11.4mm 4.7mm 4.2mm
ABLS-13.500MHZ-B4-T Abracon晶振 ABLS 13.5MHz 11.4mm 4.7mm 4.2mm
ABLS-13.5178MHZ-10-D4Y-T Abracon晶振 ABLS 13.5178MHz 11.4mm 4.7mm 4.2mm
ABLS-13.52127MHZ-10-D4Y-T Abracon晶振 ABLS 13.52127MHz 11.4mm 4.7mm 4.2mm
ABLS-13.52127MHZ-10-J-4Q-T Abracon晶振 ABLS 13.52127MHz 11.4mm 4.7mm 4.2mm
ABLS-13.54856MHZ-10-J4Y-T Abracon晶振 ABLS 13.54856MHz 11.4mm 4.7mm 4.2mm
ABLS-13.560MHZ-10-R20-D-T Abracon晶振 ABLS 13.56MHz 11.4mm 4.7mm 4.2mm
ABLS-13.560MHZ-10-R30-D-T Abracon晶振 ABLS 13.56MHz 11.4mm 4.7mm 4.2mm
ABLS-13.560MHZ-B4Y-T Abracon晶振 ABLS 13.56MHz 11.4mm 4.7mm 4.2mm
ABLS-13.6050MHZ-20-R50-D-T Abracon晶振 ABLS 13.605MHz 11.4mm 4.7mm 4.2mm
ABLS-13.94916MHZ-10-R20-D-T Abracon晶振 ABLS 13.94916MHz 11.4mm 4.7mm 4.2mm
ABLS-14.089190MHZ-10-J4Y-T Abracon晶振 ABLS 14.08919MHz 11.4mm 4.7mm 4.2mm
ABLS-14.276430MHZ-10-J4Y-T Abracon晶振 ABLS 14.27643MHz 11.4mm 4.7mm 4.2mm
ABLS-14.299830MHZ-10-J4Y-T Abracon晶振 ABLS 14.29983MHz 11.4mm 4.7mm 4.2mm
ABLS-14.31818MHZ-20-L-4-Q-T Abracon晶振 ABLS 14.31818MHz 11.4mm 4.7mm 4.2mm
ABLS-14.31818MHZ-B2-T Abracon晶振 ABLS 14.31818MHz 11.4mm 4.7mm 4.2mm
ABLS-14.31818MHZ-B4-T Abracon晶振 ABLS 14.31818MHz 11.4mm 4.7mm 4.2mm
ABLS-14.31818MHZ-K4T Abracon晶振 ABLS 14.31818MHz 11.4mm 4.7mm 4.2mm
ABLS-14.31818MHZ-L4Q-T Abracon晶振 ABLS 14.31818MHz 11.4mm 4.7mm 4.2mm
ABLS-14.3359MHZ-20-R50-T Abracon晶振 ABLS 14.3359MHz 11.4mm 4.7mm 4.2mm
ABLS-14.3594MHZ-20-R50-T Abracon晶振 ABLS 14.3594MHz 11.4mm 4.7mm 4.2mm
ABLS-14.463660MHZ-10-J4Y-T Abracon晶振 ABLS 14.46366MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-20-B-3-H-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-20-B-4-Y-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-20-R40-D4H-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-B2-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-B4-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-B4H-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-D-3-Y-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-K4T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.7456MHZ-L4Q-T Abracon晶振 ABLS 14.7456MHz 11.4mm 4.7mm 4.2mm
ABLS-14.822520MHZ-10-J4Y-T Abracon晶振 ABLS 14.82252MHz 11.4mm 4.7mm 4.2mm
ABLS-15.000MHZ-B4-T Abracon晶振 ABLS 15MHz 11.4mm 4.7mm 4.2mm
ABLS-15.000MHZ-K4T Abracon晶振 ABLS 15MHz 11.4mm 4.7mm 4.2mm
ABLS-15.000MHZ-L4Q-T Abracon晶振 ABLS 15MHz 11.4mm 4.7mm 4.2mm
ABLS-15.360MHZ-B4-T Abracon晶振 ABLS 15.36MHz 11.4mm 4.7mm 4.2mm
ABLS-16.000MHZ-10-B-1-G-T Abracon晶振 ABLS 16MHz 11.4mm 4.7mm 4.2mm
ABLS-16.000MHZ-12-D-4-Y-T Abracon晶振 ABLS 16MHz 11.4mm 4.7mm 4.2mm
ABLS-16.000MHZ-16-A-4-H-T Abracon晶振 ABLS 16MHz 11.4mm 4.7mm 4.2mm
