GED小尺寸振蕩器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振,歐美進口晶振,有源晶體振蕩器,OSC振蕩器,6035mm有源晶振,SMD振蕩器,30MHZ時鐘振蕩器,有源貼片晶振,尺寸6.0x3.5mm,頻率30MHZ,低電壓晶振,低功耗晶振,低相位晶振,微波通信晶振,空中雷達晶振,測試設備晶振,醫療設備晶振,物聯網晶振.
GED小尺寸振蕩器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振特點:
表面安裝時鐘石英晶體振蕩器
HCMOS/TTL輸出
3.3V和5.0V電源電壓
陶瓷SMD封裝

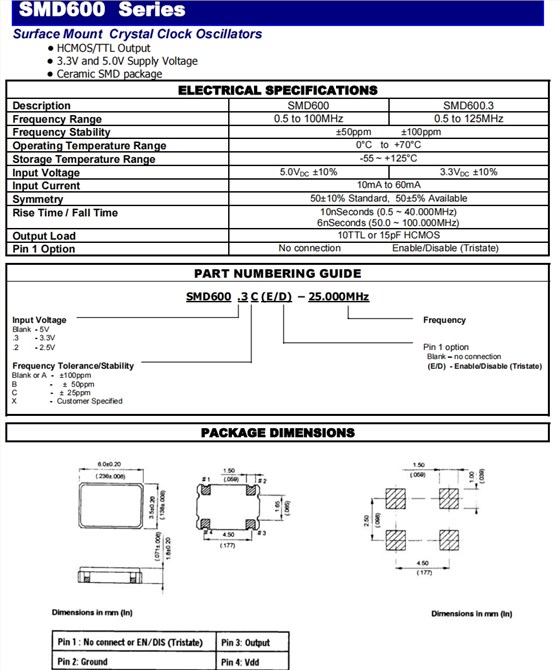

GED小尺寸振蕩器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振 參數表
| ELECTRICAL SPECIFICATIONS | |||||
| Description | SMD600 | SMD600.3 | |||
| Frequency Range | 30MHz | 0.5 to 125MHz | |||
| Frequency Stability | ±50ppm±100ppm | ||||
| Operating Temperature Range | 0°Cto+70°C | ||||
| Storage Temperature Range | -55 ~ +125°C | ||||
| Input Voltage | 5.0VDC±10% | 3.3VDC±10% | |||
| Input Current | 10mA to 60mA | ||||
| Symmetry | 50±10% Standard,50±5% Available | ||||
| Rise Time / Fall Time |
10nSeconds (0.5 ~ 40.000MHz) 6nSeconds (50.0 ~ 100.000MHz) |
||||
| Output Load | 10TTL or 15pF HCMOS | ||||
| Pin 1 Option | No connectionEnable/Disable (Tristate) | ||||

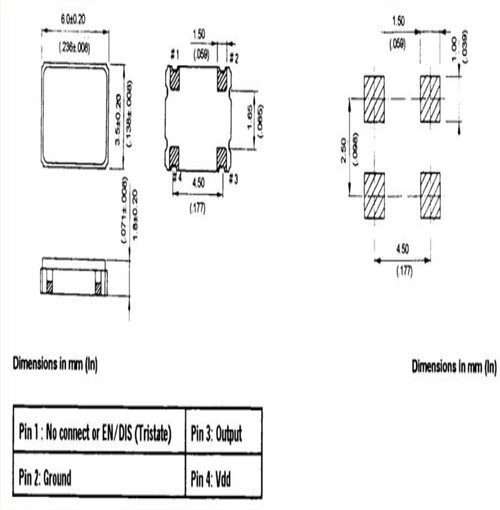

GED小尺寸振蕩器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振 尺寸圖
