產品簡介

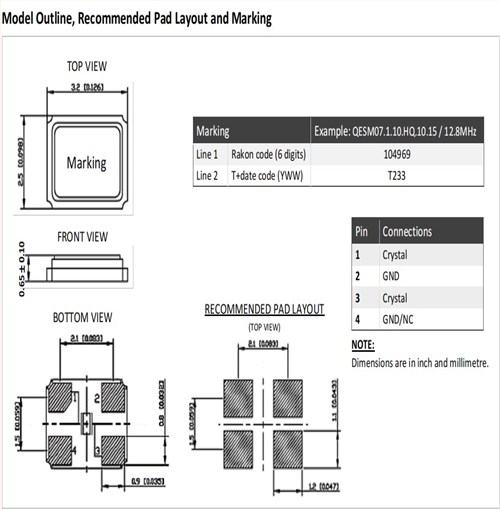

Rakon晶體諧振器,QESM07110DT101014.7456MHZ,移動通訊6G晶振，新西蘭Rakon瑞康晶振，型號：QESM07，編碼為：QESM07110DT101014.7456MHZ，頻率為：14.7456MHz，小體積晶振尺寸：3.2x2.5mm封裝，SMD石英晶體，石英晶體諧振器，四腳貼片晶振，無源晶振，石英晶振，晶體諧振器，無鉛晶振，貼片石英晶振，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，高精度，高性能，高品質，高質量，耐熱及耐環境特點。3225晶振被廣泛應用于：移動通訊設備，無線局域網，藍牙模塊，物聯網，汽車電子，車載控制器，醫療設備，安防設備，智能手機，平板電腦，數碼電子，家用電器等應用。

產品詳情

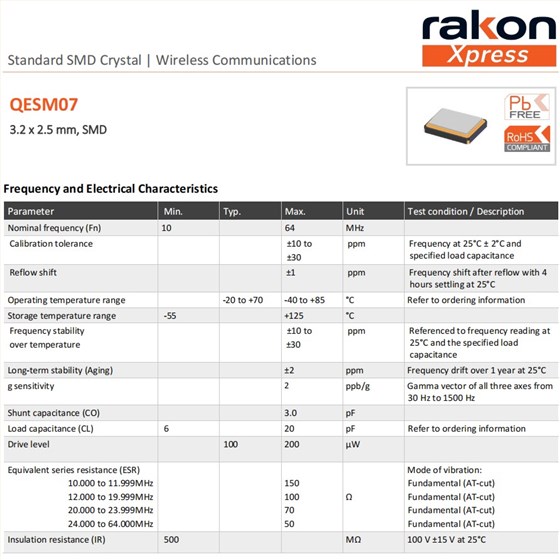

Rakon晶體諧振器,QESM07110DT101014.7456MHZ,移動通訊6G晶振參數表

Parameter	Min	Typ	Max	Unit	Test condition / Description
Nominal frequency (Fn)	14.7456			MHz
Calibration tolerance			±10 to ±30	ppm	Frequency at 25°C ± 2°C and specified load capacitance
Reflow shift			±1	ppm	Frequency shift after reflow with 4 hours settling at 25°C
Operating temperature range		-20 to +70	-40 to +85	°C	Refer to ordering information
Storage temperature range	-55		+125	°C
Frequency stability over temperature			±10 to ±30	ppm	Referenced to frequency reading at 25°C and the specified load capacitance
Long-term stability (Aging)			±2	ppm	Frequency drift over 1 year at 25°C
g sensitivity			2	ppb/g	Gamma vector of all three axes from 30 Hz to 1500 Hz
Shunt capacitance (CO)			3.0	pF
Load capacitance (CL)	6		20	pF	Refer to ordering information
Drive level		100	200	µW
Equivalent series resistance (ESR) 10.000 to 11.999MHz 12.000 to 19.999MHz 20.000 to 23.999MHz 24.000 to 64.000MHz			150 100 70 50	Ω	Mode of vibration: Fundamental (AT-cut) Fundamental (AT-cut) Fundamental (AT-cut) Fundamental (AT-cut)
Insulation resistance (IR)	500			MΩ	100 V ±15 V at 25°C
