產品簡介

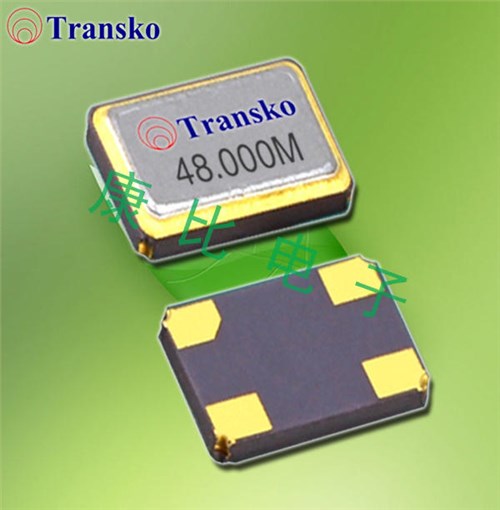

CS32-F0000HM-22-40.000M-TR,40MHZ,特蘭斯科SMD晶振,3225mm，尺寸3.2x2.5mm，頻率40MHZ，歐美無源晶體，美國Transko晶振，3225mm石英晶振，貼片無源晶振，無源晶振，石英SMD晶體，SMD晶體，水晶振動子，無鉛環保晶振，四腳石英晶體，40MHZ貼片晶振，平板電腦晶振，視聽設備晶振，智能音響晶振，無線網絡晶振，小型設備晶振，多媒體設備晶振，娛樂設備晶振，低損耗晶振，低功耗晶振，低耗能晶振，高性能晶振，高質量晶振，具有優異的穩定性能以及耐壓性能。無源晶體產品主要應用范圍包含：平板電腦，視聽設備，智能音響，無線網絡，小型設備，多媒體設備，娛樂設備等應用。CS32-F0000HM-22-40.000M-TR,40MHZ,特蘭斯科SMD晶振,3225mm.

產品詳情

CS32-F0000HM-22-40.000M-TR,40MHZ,特蘭斯科SMD晶振,3225mm 參數表

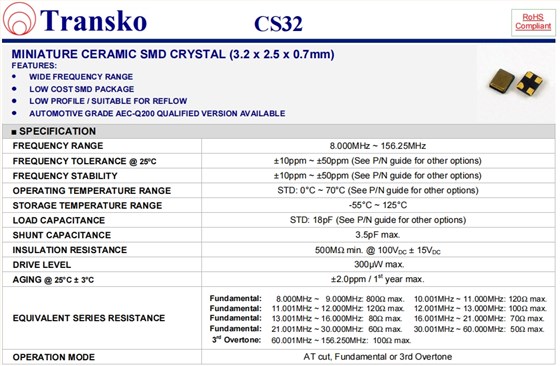

■ SPECIFICATION
FREQUENCY RANGE			40.0MHz
FREQUENCY TOLERANCE @ 25ºC			±10ppm ~ ±50ppm (See P/N guide for other options)
FREQUENCY STABILITY			±10ppm ~ ±50ppm (See P/N guide for other options)
OPERATING TEMPERATURE RANGE			STD: 0°C ~ 70°C (See P/N guide for other options)
STORAGE TEMPERATURE RANGE			-55°C ~ 125°C
LOAD CAPACITANCE			STD: 18pF (See P/N guide for other options)
SHUNT CAPACITANCE			3.5pF max.
INSULATION RESISTANCE			500MΩ min. @ 100VDC± 15VDC
DRIVE LEVEL			300µW max.
AGING @ 25°C ± 3°C			±2.0ppm / 1styear max.
EQUIVALENT SERIES RESISTANCE			Fundamental: 8.000MHz ~ 9.000MHz: 800Ω max. Fundamental: 11.001MHz ~ 12.000MHz: 120Ω max. Fundamental: 13.001MHz ~ 16.000MHz: 80Ω max. Fundamental: 21.001MHz ~ 30.000MHz: 60Ω max. 3rd Overtone: 60.001MHz ~ 156.250MHz: 100Ω max. 10.001MHz ~ 11.000MHz: 120Ω max. 12.001MHz ~ 13.000MHz: 100Ω max. 16.001MHz ~ 21.000MHz: 70Ω max. 30.001MHz ~ 60.000MHz: 50Ω max.
