當前位置：首頁 » 臺產晶振 » 百利通亞陶晶振 » 7050mm-PXF620009-156.25MHZ-LVDS-Diodes

prevnext

7050mm-PXF620009-156.25MHZ-LVDS-Diodes

頻率：156.25MHZ

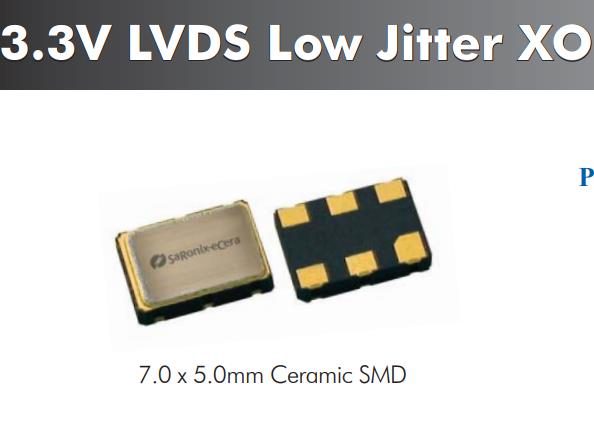

尺寸：7.0*5.0mm

7050mm-PXF620009-156.25MHZ-LVDS-Diodes,尺寸為7050mm,頻率為156.25MHZ,支持輸出LVDS,電壓3.3V,百利通亞陶晶振，臺灣進口晶振，差分晶振，有源晶振，石英差分晶振，低抖動晶振，低電壓晶振，低相位晶振，網絡設備晶振，光纖通道晶振，服務器晶振，高清視頻系統晶振，7050mm有源晶振，LVDS晶振，XO時鐘振蕩器，低PXC500011晶振，PXA000009晶振，7050mm-PXF620009-156.25MHZ-LVDS-Diodes.

PX系列OSC振蕩器是高速的理想選擇，要求低抖動的應用，包括: 1/10千兆以太網 2/4/10G光纖通道，串行連接SCSI (SAS) 服務器和存儲平臺，SONET/SDH線路卡，無源光網絡(PON)設備，高清視頻系統等領域。

訂購熱線：0755-27876201

7050mm-PXF620009-156.25MHZ-LVDS-Diodes 參數表

Parameter Min. Typ. Max. Units Notes

Output Frequency

38.88

162

MHz

As speci?ed

Supply Voltage

2.97

3.3

3.63

Supply Current, Enabled

Supply Current, Disabled

0.03

Frequency Stability

±20 to ±50

ppm

See Note 1 below

Operating Temperature Range

--20

+70

°C

Commercial (standard)

--40

+85

Industrial (standard)

Output Logic 0, VOL

0.9

1.1

Output Logic 1, VOH

1.43

1.6

Output Amplitude Differential

500

900

Output Load

100Ω +5pF across the outputs

output requires termination

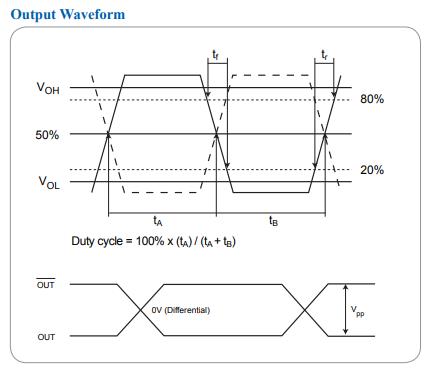

Duty Cycle

measured 50% of waveform

Rise and Fall Time

500

850

measured 20/80% of waveform

Jitter, Phase

0.5

ps RMS (1- σ)

12kHz to 20MHz frequency band

Jitter, Total

ps pk–pk

100,000 random periods

Parameter

Min.

Typ.

Max.

Units

Notes

Input Voltage (pin OE), Output Enable

0.7

or open

Input Voltage (pin OE), Output Disable (low power standby)

0.3

Outpus disabled to Hi-Z

Internal Pullup Resistance

Output Disable Delay

200

Output Enable Delay

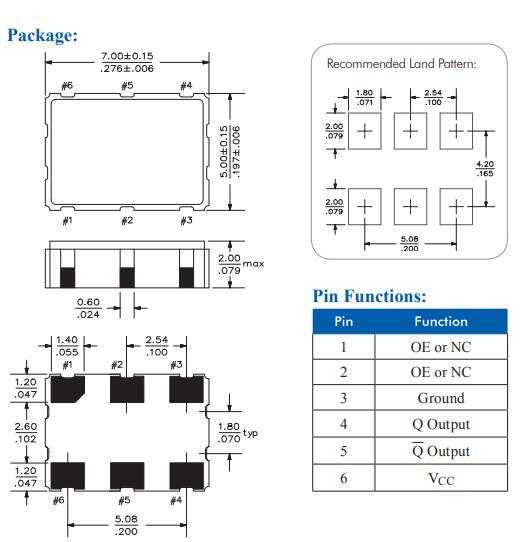

7050mm-PXF620009-156.25MHZ-LVDS-Diodes 尺寸圖包裝圖

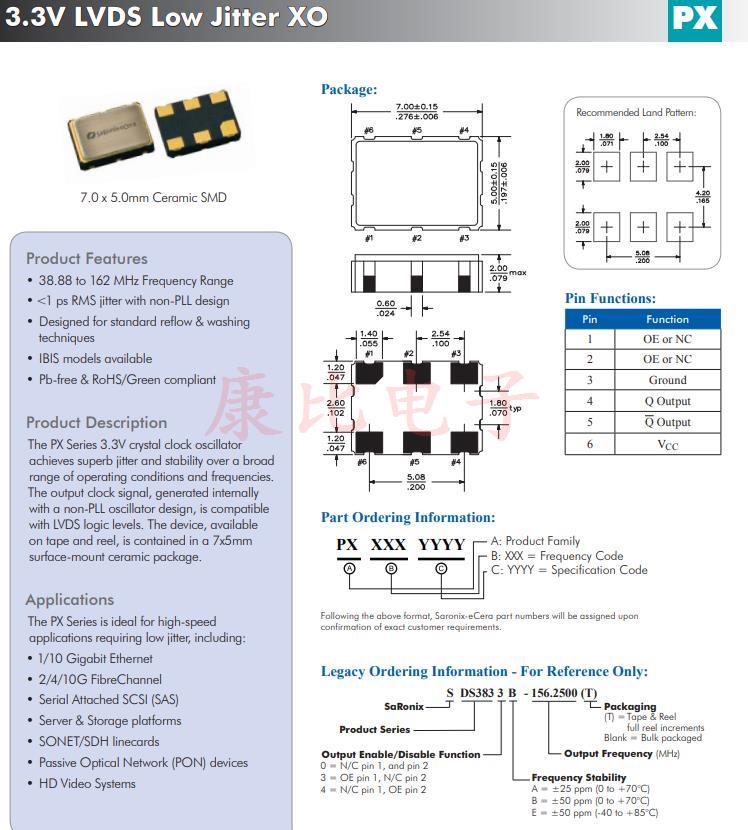

PXF620009晶振 產品特點：

38.88至162MHz頻率范圍

采用非PLL設計時，均方根抖動小于1ps

專為標準回流和清洗而設計，技術

提供IBIS型號

無鉛且符合RoHS/綠色標準

更多相關百利通亞陶晶振型號

原廠代碼	品牌	型號	頻率	頻率穩定度	工作溫度
JX7011D0070.656000	Diodes晶振	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
PXC500007	Diodes晶振	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
JX5021E0156.250000	Diodes晶振	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX7011E0059.000000	Diodes晶振	SaRonix-eCera™ JX	59MHz	±50ppm	-40°C ~ 85°C
JX7011B0044.736000	Diodes晶振	SaRonix-eCera™ JX	44.736MHz	±25ppm	-20°C ~ 70°C
JX5011C0120.000000	Diodes晶振	SaRonix-eCera™ JX	120MHz	±50ppm	-20°C ~ 70°C
JX7012D0025.001875	Diodes晶振	SaRonix-eCera™ JX	25.001875MHz	±25ppm	-40°C ~ 85°C
JX7011E0091.500000	Diodes晶振	SaRonix-eCera™ JX	91.5MHz	±50ppm	-40°C ~ 85°C
JX7011D0104.000000	Diodes晶振	SaRonix-eCera™ JX	104MHz	±25ppm	-40°C ~ 85°C
JX5011C0056.000000	Diodes晶振	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
PXA000010	Diodes晶振	SaRonix-eCera™ PX	100MHz	±50ppm	-20°C ~ 70°C
PXA620006	Diodes晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-20°C ~ 70°C
PXA620008	Diodes晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-20°C ~ 70°C
PXF000010	Diodes晶振	SaRonix-eCera™ PX	150MHz	±50ppm	-20°C ~ 70°C
PXF000011	Diodes晶振	SaRonix-eCera™ PX	150MHz	±50ppm	-20°C ~ 70°C
PXF620009	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-20°C ~ 70°C
PXF620014	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-20°C ~ 70°C
PXA000012	Diodes晶振	SaRonix-eCera™ PX	100MHz	±50ppm	-40°C ~ 85°C
PXA620004	Diodes晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-40°C ~ 85°C
PXA620005	Diodes石英晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-40°C ~ 85°C
PXC500011	Diodes晶振	SaRonix-eCera™ PX	125MHz	±50ppm	-40°C ~ 85°C
PXF620011	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-40°C ~ 85°C
PXF620012	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-40°C ~ 85°C
PXA000011	Diodes晶振	SaRonix-eCera™ PX	100MHz	±25ppm	-20°C ~ 70°C
PXC500008	Diodes晶振	SaRonix-eCera™ PX	125MHz	±25ppm	-20°C ~ 70°C
PXC500009	Diodes晶振	SaRonix-eCera™ PX	125MHz	±25ppm	-20°C ~ 70°C
PXF550003	Diodes晶振	SaRonix-eCera™ PX	155.52MHz	±25ppm	-20°C ~ 70°C
PXF620010	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±25ppm	-20°C ~ 70°C
PXA000009	Diodes晶振	SaRonix-eCera™ PX	100MHz	±20ppm	-20°C ~ 70°C
JX5021E0312.500000	Diodes晶振	SaRonix-eCera™ JX	312MHz	±50ppm	-40°C ~ 85°C
PXF620013	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±25ppm	-40°C ~ 85°C
PXC500010	Diodes晶振	SaRonix-eCera™ PX	125MHz	±50ppm	-40°C ~ 85°C
