頻率：18.432MHz
尺寸：7.0x5.0mm
C3390-18.432,Crystek數字視頻晶振,18.432MHz,7050mm振蕩器，美國進口晶振，CRYSTEK晶振，瑞斯克晶振，型號：C33xx系列晶振，編碼為：C3390-18.432，頻率：18.432MHz，頻率穩定性：±100ppm，工作溫度范圍：0℃至70℃，電壓：3.3V，HCMOS時鐘振蕩器，小體積晶振尺寸：7.0x5.0mm封裝，四腳貼片晶振，石英晶振，石英晶體振蕩器，SMD晶振。具有超小型，輕薄型，高精度，高性能，高品質等特點。應用于：通訊設備，數字視頻，存儲區域網絡，寬帶接入，以太網，千兆以太網，網絡設備晶振等應用。
CRYSTEK瑞斯克晶振，有源晶振型號C33xx系列是一個1.544 MHz到156.250MHz的HCMOS時鐘振蕩器，工作電壓3.3V。該振蕩器利用基本或高Q第三Q，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。

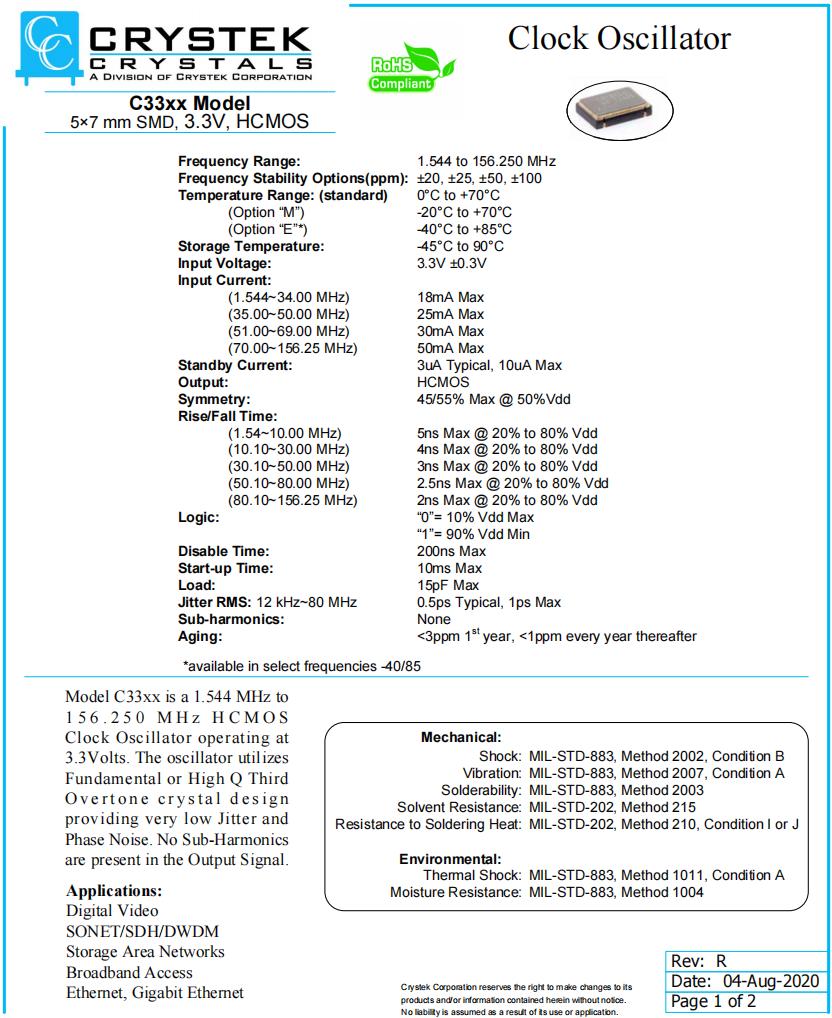

C3390-18.432,Crystek數字視頻晶振,18.432MHz,7050mm振蕩器,參數表
| Frequency Range: | 18.432 MHz |
| Frequency Stability Options(ppm): | ±20, ±25, ±50, ±100 |
| Temperature Range: (standard) | 0°C to +70°C |
| (Option “M”) | -20°C to +70°C |
| (Option “E”*) | -40°C to +85°C |
| Storage Temperature: | -45°C to 90°C |
| Input Voltage: | 3.3V ±0.3V |
| Input Current: | |
| (1.544~34.00 MHz) | 18mA Max |
| (35.00~50.00 MHz) | 25mA Max |
| (51.00~69.00 MHz) | 30mA Max |
| (70.00~156.25 MHz) | 50mA Max |
| Standby Current: | 3uA Typical, 10uA Max |
| Output: | HCMOS |
| Symmetry: | 45/55% Max @ 50%Vdd |
| Rise/Fall Time: | |
| (1.54~10.00 MHz) | 5ns Max @ 20% to 80% Vdd |
| (10.10~30.00 MHz) | 4ns Max @ 20% to 80% Vdd |
| (30.10~50.00 MHz) | 3ns Max @ 20% to 80% Vdd |
| (50.10~80.00 MHz) | 2.5ns Max @ 20% to 80% Vdd |
| (80.10~156.25 MHz) | 2ns Max @ 20% to 80% Vdd |
| Logic: | “0”= 10% Vdd Max |
| “1”= 90% Vdd Min | |
| Disable Time: | 200ns Max |
| Start-up Time: | 10ms Max |
| Load: | 15pF Max |
| Jitter RMS: 12 kHz~80 MHz | 0.5ps Typical, 1ps Max |
| Sub-harmonics: | None |
| Aging: |
<3ppm 1st year, <1ppm every year thereafter |
C3390-18.432,Crystek數字視頻晶振,18.432MHz,7050mm振蕩器,尺寸圖
| 石英晶體振蕩器 | 品牌 | 型號 | 類型 | 頻率 | 頻率穩定度 |
| CE3391-8.000 | Crystek晶振 | C33 | XO (Standard) | 8MHz | ±25ppm |
| C3391-4.096 | Crystek晶振 | C33 | XO (Standard) | 4.096MHz | ±25ppm |
| C3390-1.544 | Crystek晶振 | C33 | XO (Standard) | 1.544MHz | ±100ppm |
| C3390-1.843200 | Crystek晶振 | C33 | XO (Standard) | 1.8432MHz | ±100ppm |
| C3390-10.000 | Crystek晶振 | C33 | XO (Standard) | 10MHz | ±100ppm |
| C3390-12.000 | Crystek晶振 | C33 | XO (Standard) | 12MHz | ±100ppm |
| C3390-12.288 | Crystek晶振 | C33 | XO (Standard) | 12.288MHz | ±100ppm |
| C3390-12.352 | Crystek晶振 | C33 | XO (Standard) | 12.352MHz | ±100ppm |
| C3390-14.318180 | Crystek晶振 | C33 | XO (Standard) | 14.31818MHz | ±100ppm |
| C3390-15.360 | Crystek晶振 | C33 | XO (Standard) | 15.36MHz | ±100ppm |
| C3390-16.000 | Crystek晶振 | C33 | XO (Standard) | 16MHz | ±100ppm |
| C3390-16.384 | Crystek晶振 | C33 | XO (Standard) | 16.384MHz | ±100ppm |
| C3390-18.432 | Crystek晶振 | C33 | XO (Standard) | 18.432MHz | ±100ppm |
| C3390-19.440 | Crystek晶振 | C33 | XO (Standard) | 19.44MHz | ±100ppm |
| C3390-2.048 | Crystek晶振 | C33 | XO (Standard) | 2.048MHz | ±100ppm |
| C3390-20.000 | Crystek晶振 | C33 | XO (Standard) | 20MHz | ±100ppm |
| C3390-20.480 | Crystek晶振 | C33 | XO (Standard) | 20.48MHz | ±100ppm |
| C3390-24.000 | Crystek晶振 | C33 | XO (Standard) | 24MHz | ±100ppm |
| C3390-24.576 | Crystek晶振 | C33 | XO (Standard) | 24.576MHz | ±100ppm |
| C3390-24.704 | Crystek晶振 | C33 | XO (Standard) | 24.704MHz | ±100ppm |
| C3390-25.000 | Crystek晶振 | C33 | XO (Standard) | 25MHz | ±100ppm |
| C3390-3.686400 | Crystek晶振 | C33 | XO (Standard) | 3.6864MHz | ±100ppm |
| C3390-30.000 | Crystek晶振 | C33 | XO (Standard) | 30MHz | ±100ppm |
| C3390-32.000 | Crystek晶振 | C33 | XO (Standard) | 32MHz | ±100ppm |
| C3390-32.768 | Crystek晶振 | C33 | XO (Standard) | 32.768MHz | ±100ppm |
| C3390-33.000 | Crystek晶振 | C33 | XO (Standard) | 33MHz | ±100ppm |
| C3390-33.333 | Crystek晶振 | C33 | XO (Standard) | 33.333MHz | ±100ppm |
