亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

返回列表 來源：*** 查看手機網址
掃一掃!亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振掃一掃!
 瀏覽：- 發布日期：2022-07-11 11:45:33【大 中 小】
分享到：

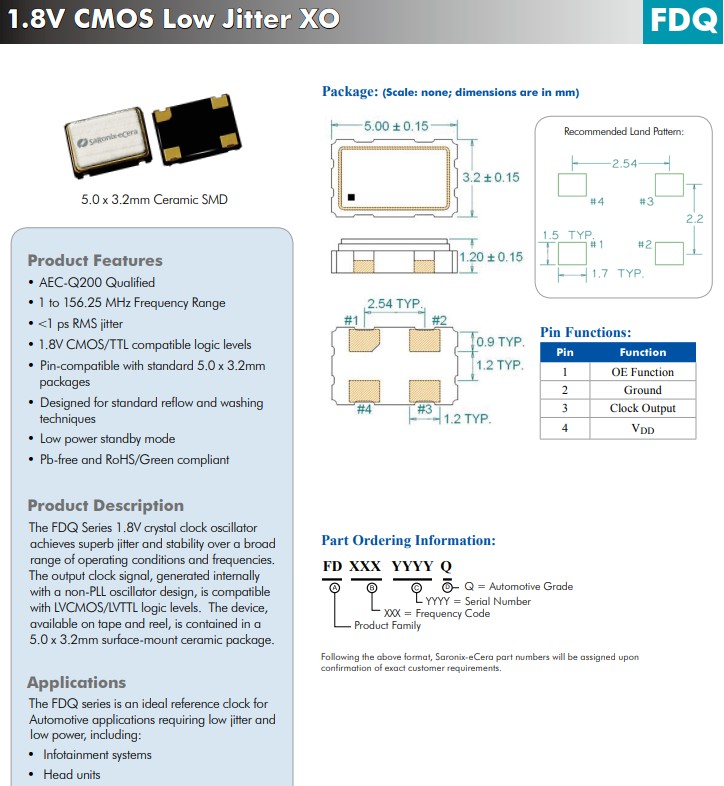

亞陶晶振FDQ系列1.8V時鐘晶體振蕩器可在廣泛的工作條件和頻率范圍內實現出色的抖動和穩定性，FDQ系列，小體積尺寸5.0x3.2mm、汽車級CMOS晶體振蕩器，使用非PLL振蕩器設計在內部生成的輸出時鐘信號與LVCMOS/LVTTL差分晶振邏輯電平兼容。該器件采用卷帶包裝，采用5.0x3.2mm表面貼裝陶瓷封裝。
產品特點：
符合AEC-Q200標準
頻率范圍：1至156.25MHz
<1 ps RMS抖動
1.8V CMOS/TTL兼容邏輯電平
與標準5.0x3.2mm封裝引腳兼容
專為標準回流和清洗技術而設計
低功耗待機模式
無鉛且符合RoHS/Green標準

應用：FDQ系列是需要低抖動和低功耗的汽車應用的理想?yún)⒖紩r(shí)鐘,包括：信息娛樂系統,主機

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

FDC500014 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FK0100001 Diodes Incorporated SaRonix-eCera™ FK 1MHz ±50ppm -20°C ~ 70°C
FK0100002 Diodes Incorporated SaRonix-eCera™ FK 1MHz ±50ppm -20°C ~ 70°C
FK0180004 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±50ppm -20°C ~ 70°C
FK0180005 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±25ppm -20°C ~ 70°C
FK0180006 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±50ppm -40°C ~ 85°C
FK0200002 Diodes Incorporated SaRonix-eCera™ FK 2MHz ±50ppm -20°C ~ 70°C
FK0360002 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±50ppm -20°C ~ 70°C
FK0360003 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±25ppm -20°C ~ 70°C
FK0360004 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±50ppm -40°C ~ 85°C
FK0400005 Diodes Incorporated SaRonix-eCera™ FK 4MHz ±25ppm -20°C ~ 70°C
FK0400007 Diodes Incorporated SaRonix-eCera™ FK 4MHz ±50ppm -40°C ~ 85°C
FK0500002 Diodes Incorporated SaRonix-eCera™ FK 5MHz ±50ppm -40°C ~ 85°C
FK0530001 Diodes Incorporated SaRonix-eCera™ FK 5.33MHz ±50ppm -40°C ~ 85°C
FK0610001 Diodes Incorporated SaRonix-eCera™ FK 6.14MHz ±25ppm -20°C ~ 70°C
FK0670001 Diodes Incorporated SaRonix-eCera™ FK 6.758MHz ±25ppm -20°C ~ 70°C
FK0800004 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm -40°C ~ 85°C
FK0810001 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±50ppm -20°C ~ 70°C
FK0810002 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±25ppm -20°C ~ 70°C
FK0810003 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±50ppm -40°C ~ 85°C
FK1000006 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±50ppm -20°C ~ 70°C
FK1000007 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±25ppm -20°C ~ 70°C
FK1000008 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±50ppm -40°C ~ 85°C
FK1200010 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm -20°C ~ 70°C
FK1200013 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±25ppm -20°C ~ 70°C

2

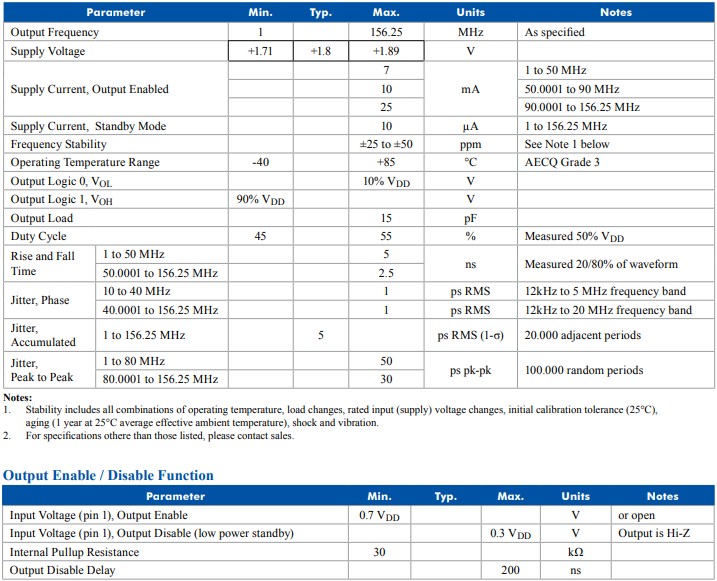

Product Parameters

Subfamily General XO
Product Series FDQ
Compliance(Only Automotive supports PPAP) Automotive
Freq Range (MHz) 1 to 135
Jitter RMS (ps) <1
Stability (PPM) 20 to 50
Package Size (mm) 5.0 x 3.2
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 1.8
Pads 4

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

產品參數：

類別 XO將軍
產品系列 FDQ
合規性（僅汽車支持PPAP）汽車
頻率范圍  1MHz到135MHz
抖動均方根 (ps) <1
穩定性  20PPM到50PPM
包裝尺寸 5.0x3.2mm貼片晶振
包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 1.8V
墊 4腳
FK1220006 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±25ppm -20°C ~ 70°C
FK1220007 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -20°C ~ 70°C
FK1220008 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±25ppm -20°C ~ 70°C
FK1220009 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -40°C ~ 85°C
FK1300008 Diodes Incorporated SaRonix-eCera™ FK 13MHz ±50ppm -20°C ~ 70°C
FK1300010 Diodes Incorporated SaRonix-eCera™ FK 13MHz ±50ppm -20°C ~ 70°C
FK1430004 Diodes Incorporated SaRonix-eCera™ FK 14.318MHz ±50ppm -20°C ~ 70°C
FK1600003 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±25ppm -20°C ~ 70°C
FK1600004 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±50ppm -20°C ~ 70°C
FK1600005 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±50ppm -40°C ~ 85°C
FK1630003 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±50ppm -20°C ~ 70°C
FK1630004 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±25ppm -20°C ~ 70°C
FK1630005 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±50ppm -40°C ~ 85°C
FK1840001 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±50ppm -20°C ~ 70°C
FK1840002 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±25ppm -20°C ~ 70°C
FK1840003 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±50ppm -40°C ~ 85°C
FK1940001 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±50ppm -20°C ~ 70°C
FK1940002 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±25ppm -20°C ~ 70°C
FK1940004 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±50ppm -40°C ~ 85°C
FK2000022 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±50ppm -20°C ~ 70°C
FK2000023 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±25ppm -20°C ~ 70°C
FK2000025 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±50ppm -40°C ~ 85°C
FK2400012 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±50ppm -20°C ~ 70°C
FK2400013 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm -20°C ~ 70°C
FK2400014 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±50ppm -40°C ~ 85°C

1

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

晶體振蕩器(CXO)詳細信息：
Diodes Incorporated與SaRonix-eCera進行了獨特的垂直整合，用于陶瓷封裝振蕩器的專有大容量自動化生產
輸出頻率高達670MHz，總壽命精度為±20ppm
提供5V、3.3V、2.5V和1.8V產品
專利 XP 技術，用于經濟高效的高頻、低抖動時鐘電路
VCXO控制電壓功能，用于與另一個時鐘或數據信號同步
Diodes Incorporated 時鐘和 VCXO IC 可縮短交貨時間并降低成本
使用ASSP XO晶體振蕩器快速獲得成熟的技術

FK2450008 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±50ppm -20°C ~ 70°C
FK2450009 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm -20°C ~ 70°C
FK2450010 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±50ppm -40°C ~ 85°C
FK2500018 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -20°C ~ 70°C
FK2500019 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm -20°C ~ 70°C
FK2500026 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 85°C
FK2600016 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm -20°C ~ 70°C
FK2600017 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±25ppm -20°C ~ 70°C
FK2600019 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm -40°C ~ 85°C
FK2600020 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±25ppm -20°C ~ 70°C
FK2600024 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm -20°C ~ 70°C
FK2600027 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±20ppm -20°C ~ 70°C
FK2600028 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm -40°C ~ 85°C
FK2700001 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±25ppm -20°C ~ 70°C
FK2700015 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm -20°C ~ 70°C
FK2700016 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±25ppm -20°C ~ 70°C
FK2700017 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±20ppm -20°C ~ 70°C
FK2700018 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm -40°C ~ 85°C
FK2700021 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm -20°C ~ 70°C
FK2820001 Diodes Incorporated SaRonix-eCera™ FK 28.224MHz ±25ppm -20°C ~ 70°C
FK3000001 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm -20°C ~ 70°C
FK3000003 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±25ppm -20°C ~ 70°C
FK3000004 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm -20°C ~ 70°C
FK3000005 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm -20°C ~ 70°C
FK3000006 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm -40°C ~ 85°C

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

FDQ 1.8V 20~50 5.0x3.2 CMOS 1.8 4 1.8V、5.0x3.2mm、汽車級CMOS晶體振蕩器
FDQ 2.5V 20~50 5.0x3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、汽車級CMOS晶體振蕩器
FDQ 3.3V 20~50 5.0x3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、汽車級CMOS晶體振蕩器
FKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、汽車級CMOS晶體振蕩器
FKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、汽車級CMOS晶體振蕩器
FKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、汽車級CMOS晶體振蕩器
FNQ 1.8V 20~50 7.0x5.0 CMOS 1.8 4 1.8V、7.0x5.0mm、汽車級CMOS晶體振蕩器
FNQ 2.5V 20~50 7.0x5.0 CMOS 2.5 4 2.5V、7.0x5.0mm、汽車級CMOS晶體振蕩器
FNQ 3.3V 20~50 7.0x5.0 CMOS 3.3 4 3.3V、7.0x5.0mm、汽車級CMOS晶體振蕩器
