作為目前行業中高要求,高技術石英晶體振蕩器,具有低相位,低抖動,低功耗,低損耗,低電平的特點.差分晶體振蕩器使用于產品中能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.

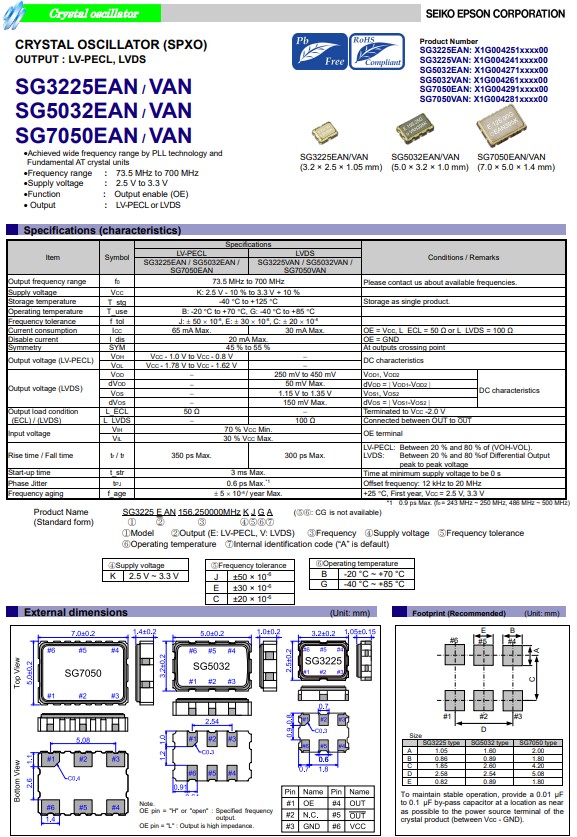

愛普生晶振SG5032EAN是一款LV-PECL輸出差分晶振，小體積晶振尺寸5.0x3.2mm晶體振蕩器，六腳貼片晶振，有源晶振，電源電壓2.5V至3.3V，寬頻率范圍73.5MHz至700MHz任意一頻點具有低電源電壓，滿足產品低消耗電流的特點。SG5032EAN有源晶振具有超小型，輕薄型，低抖動，低功耗晶振，低耗能，低損耗，低電源電壓，低電平，低相位噪聲等特點。廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。

lora模塊低功耗晶振SG5032EAN差分晶振X1G004271010900

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G004271000100	SG5032EAN	125.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271000400	SG5032EAN	100.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271001200	SG5032EAN	150.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271001300	SG5032EAN	155.520000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271001400	SG5032EAN	156.250000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271002000	SG5032EAN	125.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271003300	SG5032EAN	156.250000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271010900	SG5032EAN	250.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271011600	SG5032EAN	133.330000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271011700	SG5032EAN	133.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271011800	SG5032EAN	133.333000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271011900	SG5032EAN	174.703125MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004271012100	SG5032EAN	161.132813MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271012200	SG5032EAN	425.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004271012300	SG5032EAN	500.000000MHz	5.00x3.20x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C

lora模塊低功耗晶振SG5032EAN差分晶振X1G004271010900

差分晶振常見的是3225晶振,5032晶振,7050晶振三種封裝尺寸,文中所列舉的是愛普生5032體積的部分差分晶體振蕩器編碼.均為較高的頻率點,為輸出LV-PECL方式,電源電壓范圍2.5V/3.3V,振蕩啟動時間在電源電壓最低時,所需時間為0秒.愛普生差分晶振具有性能強,精密穩定,低電壓的特征,普遍用于對于高速網絡要求的應用.
