用于無人機超小型晶振X1G005441020800溫補晶體振蕩器

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-10-13 16:13:47【大中小】

分享到：

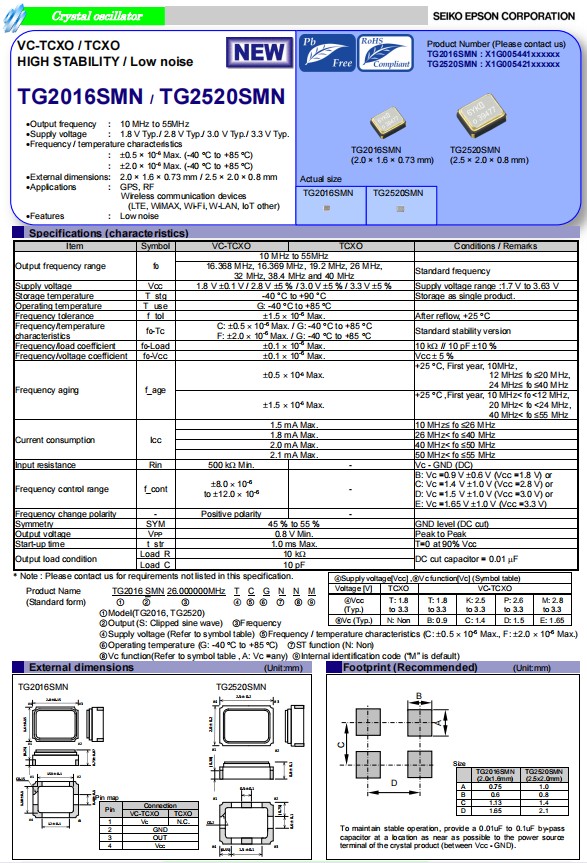

愛普生晶振TG2016SMN是一款超小型體積2.0x1.6mm高精度溫補晶體振蕩器，在-40℃到+85℃溫度范圍內，頻率精度可達±0.5ppm，同時提供±2ppm精度的型號可供選擇，為無線通信提供高精度時鐘，確保了無線頻率的穩定，保證了接收靈敏度，提升通信可靠性和通信距離，讓無人機飛的更高更遠。頻率范圍10MHz至55MHz。TG2016SMN石英晶體振蕩器可以提供例如無人機無線通信常用的16MHz，19.2MHz，24MHz，25MHz，38.4MHZ等頻點，工作電源電壓1.7V至3.63V，可以滿足1.8V，2.8V，3.0V，3.3V不同電壓應用需求。同時具備低工作電流1.5mA左右，可以減少無人機電流消耗，提升電池使用時間，提升無人機飛行時間。

用于無人機超小型晶振X1G005441020800溫補晶體振蕩器

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	精度	工作溫度
X1G005441001200	TG2016SMN	40.000000MHz	2.00x1.60x0.61mm	Clippedsinewave	2.800 to 3.630V	+/-1.5ppm	40 to +85°C
X1G005441003100	TG2016SMN	19.200000MHz	2.00x1.60x0.61mm	Clippedsinewave	2.660 to 2.940V	+/-1.5ppm	40 to +85°C
X1G005441003300	TG2016SMN	39.000000MHz	2.00x1.60x0.61mm	Clippedsinewave	3.135 to 3.465V	+/-1.5ppm	40 to +85°C
X1G005441004700	TG2016SMN	19.200000MHz	2.00x1.60x0.61mm	Clippedsinewave	3.135 to 3.465V	+/-1.5ppm	40 to +85°C
X1G005441006500	TG2016SMN	38.400000MHz	2.00x1.60x0.61mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	40 to +85°C
X1G005441020100	TG2016SMN	16.368000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441020200	TG2016SMN	16.369000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441020300	TG2016SMN	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441020400	TG2016SMN	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441020500	TG2016SMN	32.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441020600	TG2016SMN	38.400000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441020700	TG2016SMN	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441020800	TG2016SMN	16.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441021100	TG2016SMN	20.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441021200	TG2016SMN	24.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441021300	TG2016SMN	25.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441021400	TG2016SMN	27.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441021500	TG2016SMN	30.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C

X1G005441021600	TG2016SMN	48.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441022000	TG2016SMN	52.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441022100	TG2016SMN	27.600000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005441030100	TG2016SMN	16.368000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441030200	TG2016SMN	16.369000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441030300	TG2016SMN	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441030400	TG2016SMN	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441030500	TG2016SMN	32.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441030600	TG2016SMN	38.400000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441030700	TG2016SMN	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441030800	TG2016SMN	16.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441031100	TG2016SMN	20.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441031200	TG2016SMN	24.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441031300	TG2016SMN	25.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441031400	TG2016SMN	27.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441031500	TG2016SMN	30.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441031600	TG2016SMN	48.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441032000	TG2016SMN	52.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005441032100	TG2016SMN	27.600000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C

用于無人機超小型晶振X1G005441020800溫補晶體振蕩器

無人機使用的到一款溫度補償晶振,能保證無人機在不夠電量返回原地的情況下自動啟動返回功能,避免從空中掉落以及無法返程的情況.溫補晶振產品本身具有溫度補償作用,高低溫度穩定性:頻率精度高0.5PPM至2.0PPM,工作溫度范圍: -40度至85度,電源電壓:1.8V至3.3V之間可供選擇,產品本身具有溫度電壓控制功能.該系列產品具備性能穩定,精度高等優勢.
