當前位置：首頁 » 行業動態 » 醫療保健專用晶振CM8A-T1D24.000MHz9.0pF±50ppmTAQI

醫療保健專用晶振CM8A-T1D24.000MHz9.0pF±50ppmTAQI

返回列表 來源：*** 查看手機網址
掃一掃!醫療保健專用晶振CM8A-T1D24.000MHz9.0pF±50ppmTAQI掃一掃!
 瀏覽：- 發布日期：2023-04-28 16:37:59【大 中 小】
分享到：

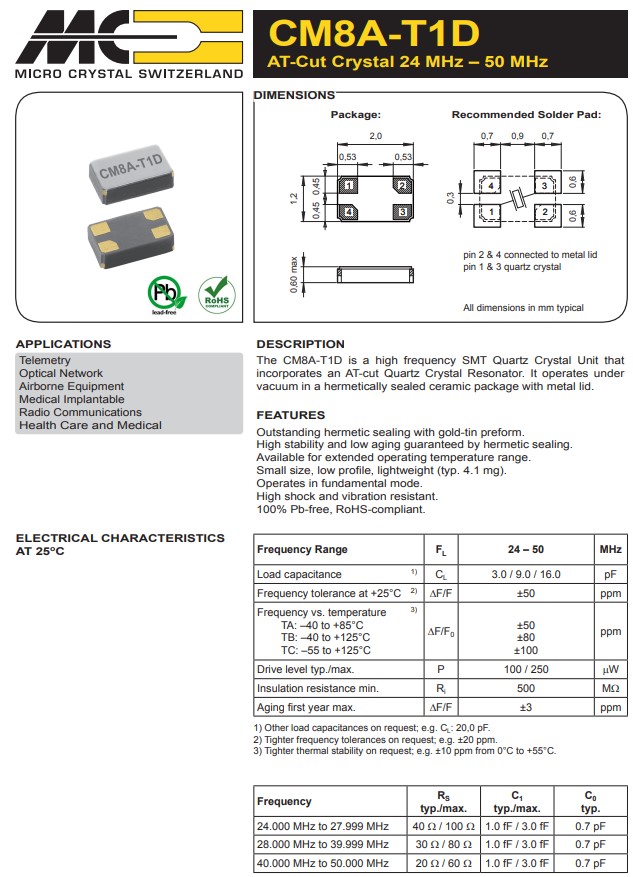

瑞士Microcrystal微晶晶振CM8A-T1D，是一款小體積尺寸2.0x1.2mm毫米四腳貼片晶振，石英晶振，石英晶體諧振器，頻率范圍：24MHz-50MHz，是一個高頻SMT石英晶體單元，它集成AT切割石英晶體諧振器。它在以下條件下運作，帶金屬蓋的密封陶瓷包裝中的真空。2012晶振具有超小型，輕薄型，耐熱及耐環境特點，金錫預制件的出色密封。 密封保證了高穩定性和低老化，小尺寸、重量輕(典型。4.1毫克)。 在基本模式下運行。 高抗沖擊和振動。100%無鉛，符合RoHS標準，適用于擴展的工作溫度范圍，應用程序：遙感勘測，光學網絡，機載設備，醫用植入式，無線電通信，保健和醫療。醫療保健專用晶振CM8A-T1D24.000MHz9.0pF±50ppmTAQI

微晶晶振 制造商零件編號 描述 頻率
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-9pF-20PPM-TB-QA  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-20PPM-TA-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-100PPM-TB-QA  32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC  32.768 kHz 12.5 pF 100 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TB-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-20PPM-TC-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TC-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC  32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC  100.000 kHz 9.0 pF +/-100 PPM -40/+85C 100 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC  32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
無源晶振 CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TA-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA  32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC  32.768 kHz 12.5 pF +/-10 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC  32.768 kHz 12.5 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC  32.768 kHz 12.5 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC  32.768 kHz 12.5 pF 100 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-100PPM-TC-QA  32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC  32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC  100.000 kHz 9.0 pF +/-100 PPM -40/+85C 100 kHz
Micro Crystal CM7V-T1A-32.768k-6pF-20PPM-TB-QA  32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
醫療保健專用晶振CM8A-T1D24.000MHz9.0pF±50ppmTAQI，小型貼片石英晶振主要采用了，先進的晶片的拋光工藝技術，是晶體行業中石英晶片研磨技術中表面處理的最高技術，最終使晶片表面更光潔，平行度及平面度更好，大大的降低諧振電阻，使精度得到了很大的提升。改變了傳統的生產工藝，使產品在各項參數得到了很大的改良,外觀尺寸具有薄型表面貼片型石英晶體諧振器,特別適用于有小型化要求的市場領域,比如智能手機,無線藍牙,平板電腦等電子數碼產品。

CM8A-T1D
