Renesas低抖動晶振,XFN336212.500000I,通訊設備6G晶振，進口晶振，Renesas瑞薩電子晶振，XF系列晶振，編碼為：XFN336212.500000I，頻率為：212.5MHz，外形尺寸：3.2x2.5mm，HCSL輸出差分晶振，8腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器，3.3V電壓。XF器件是超低相位噪聲石英基PLL振蕩器，支持大范圍的頻率和輸出接口類型。這些設備被設計為操作在三種不同的電源與幾種針形配置，以及兩個操作溫度范圍。XF設備可以被編程以產生從15MHz到2100MHz的輸出頻率，其分辨率可低至1Hz的精度。XF系列3225石英晶振設備的配置能力允許樣品和大型生產訂單的快速交付時間。應用于：移動通訊設備，無線網絡，藍牙模塊，機頂盒，物聯網，光端機，F(xiàn)OM齒輪箱，數據中心，10G/40G/100G/400G以太網等應用。

Renesas低抖動晶振,XFN336212.500000I,通訊設備6G晶振參數表

Parameter	TestCondition		Minimum	Typical	Maximum	Units
OutputFrequencyRange	LVDS,LVPECL,CML.		15	—	2100	MHz
OutputFrequencyRange	HCSL.			212.500		MHz
FrequencyStability	Temperature=-40°Cto+85°C.		—	—	±25	ppm
FrequencyStability	Temperature=-40°Cto+105°C.		—	—	±50	ppm
FrequencyTolerance(25°C)	Temperature=25°C.		—	—	±15	ppm
Aging(1styear)	TA=25°C.		—	—	±3
Aging(10years)	TA=25°C.		—	—	±10
OutputLoad	LVDS.	Differential.	—	100	—	Ω
	LVPECL.	VDD-2.0V.	—	50	—
	HCSL.	ToGND.	—	50	—
Start-upTime	Output valid time after VDD meets minimum specified level.		—	5	—	ms
OutputRiseTime	LVDS.	20% – 80%, 156.25MHz	—	303	400	ps
	LVPECL.		—	292	400
	HCSL.		—	310	400
	CML		—	304	400
OutputFallTime	LVDS.	80% – 20%, 156.25MHz	—	282	400	ps
	LVPECL.		—	278	400
	HCSL.		—	288	400
	CML		—	281	400
OutputClockDutyCycle	LVDS.	156.25MHz	48	—	52	%
	LVPECL.	156.25MHz	48	—	52
	HCSL.	156.25MHz	48	—	52
	CML	156.25MHz	48	—	52
OutputEnable/DisableTime	—	—	—	1	—	ms

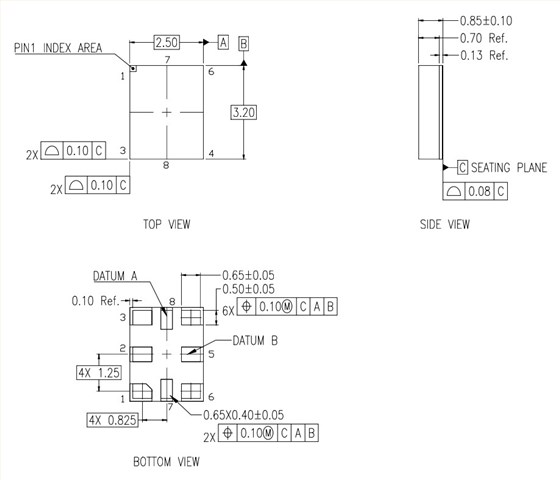

Renesas低抖動晶振,XFN336212.500000I,通訊設備6G晶振,尺寸圖

Renesas有源晶振,XFN236156.250000I差分晶振,HCSL輸出振蕩器

產品特點：
輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL差分晶振

頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：5.0×3.2毫米，3.2×2.5毫米，2.5×2.0毫米
工作溫度和頻率穩定性：-40°C至+85°C，±25ppm，-40°C至+105°C，±50ppm

編碼	進口晶振	描述	系列	頻率	輸出
XFN516100.000000I	Renesas晶振	100.000000 MHZ 1.8VDC HCSL 5032	XFN	100 MHz	HCSL
XFL526125.000000I	Renesas晶振	125.000000 MHZ 2.5VDC LVDS 5032	XFL	125 MHz	LVDS
XFL235837.500000K	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	837.5 MHz	LVDS
XFN336100.000000I	Renesas晶振	100.000000 MHZ 3.3VDC HCSL 3225	XFN	100 MHz	HCSL
XFL336156.250000I	Renesas晶振	156.250000 MHZ 3.3VDC LVDS 3225	XFL	156.25 MHz	LVDS
XFN236100.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFN	100 MHz	HCSL
XFL516100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XFL	100 MHz	LVDS
XFL536125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XFL	125 MHz	LVDS
XFL336032.768000I	Renesas晶振	XTAL OSC XO 32.7680MHZ LVDS SMD	XFL	32.768 MHz	LVDS
XFL316125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XFL	125 MHz	LVDS
XFL336333.330000I	Renesas晶振	XTAL OSC XO 333.3300MHZ LVDS SMD	XFL	333.33 MHz	LVDS
XFL336032.000000I	Renesas晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	XFL	32 MHz	LVDS
XFL526032.000000I	Renesas晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	XFL	32 MHz	LVDS
XFL336333.333333I	Renesas晶振	XTAL OSC XO 333.333333MHZ LVDS	XFL	333.333333 MHz	LVDS
XFL336125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XFL	125 MHz	LVDS
XFL516500.000000I	Renesas晶振	XTAL OSC XO 500.0000MHZ LVDS SMD	XFL	500 MHz	LVDS
XFL316300.000000I	Renesas晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	XFL	300 MHz	LVDS
XFL336148.425824I	Renesas晶振	XTAL OSC XO 148.425824MHZ LVDS	XFL	148.425824 MHz	LVDS
XFL336161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XFL	161.132812 MHz	LVDS
XFL536026.000000I	Renesas晶振	XTAL OSC XO 26.0000MHZ LVDS SMD	XFL	26 MHz	LVDS
XFL536100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XFL	100 MHz	LVDS
XFL336096.000000I	Renesas晶振	XTAL OSC XO 96.0000MHZ LVDS SMD	XFL	96 MHz	LVDS
XFL336048.000000I	Renesas晶振	XTAL OSC XO 48.0000MHZ LVDS SMD	XFL	48 MHz	LVDS
XFL336333.333000I	Renesas晶振	XTAL OSC XO 333.3330MHZ LVDS SMD	XFL	333.333 MHz	LVDS
XFL336450.000000I	Renesas晶振	XTAL OSC XO 450.0000MHZ LVDS SMD	XFL	450 MHz	LVDS
XFL316270.000000I	Renesas晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	XFL	270 MHz	LVDS
XFL336025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	XFL	25 MHz	LVDS
XFL236644.531250I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	644.53125 MHz	LVDS
XFL236830.078125I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	830.078125 MHz	LVDS
XFL226156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	156.25 MHz	LVDS
XFL236156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	156.25 MHz	LVDS
XFN236156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFN	156.25 MHz	HCSL
XFN216100.000000I	貼片晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFN	100 MHz	HCSL
XFL236108.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	108 MHz	LVDS
XFL216156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	156.25 MHz	LVDS
XFL236148.500000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFL	148.5 MHz	LVDS
XFN216161.132812I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XFN	161.132812 MHz	HCSL
XFN236025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ HCSL SMD	XFN	25 MHz	HCSL
XFL226026.000000I	Renesas晶振	XTAL OSC XO 26.0000MHZ LVDS SMD	XFL	26 MHz	LVDS
XFL216625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVDS SMD	XFL	625 MHz	LVDS
XFL216397.770000I	Renesas晶振	XTAL OSC XO 397.7700MHZ LVDS SMD	XFL	397.77 MHz	LVDS
XFL216078.125000I	Renesas晶振	XTAL OSC XO 78.1250MHZ LVDS SMD	XFL	78.125 MHz	LVDS
XFL536040.000000I	Renesas晶振	XTAL OSC XO 40.0000MHZ LVDS SMD	XFL	40 MHz	LVDS
XFL516156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XFL	156.25 MHz	LVDS
XFL536200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XFL	200 MHz	LVDS
XFL525100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XFL	100 MHz	LVDS
XFL516245.000000I	Renesas晶振	XTAL OSC XO 245.0000MHZ LVDS SMD	XFL	245 MHz	LVDS
XFL336165.000000I	Renesas晶振	XTAL OSC XO 165.0000MHZ LVDS SMD	XFL	165 MHz	LVDS
XFL536156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XFL	156.25 MHz	LVDS
XFL526100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XFL	100 MHz	LVDS
XFL336161.132813I	Renesas晶振	XTAL OSC XO 161.132813MHZ LVDS	XFL	161.132813 MHz	LVDS
XFL326300.000000I	Renesas晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	XFL	300 MHz	LVDS
XFL326161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XFL	161.132812 MHz	LVDS
XFL536153.600000I	Renesas晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	XFL	153.6 MHz	LVDS
XFN336212.500000I	Renesas晶振	XTAL OSC XO 212.5000MHZ HCSL SMD	XFN	212.5 MHz	HCSL
XFL516161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XFL	161.132812 MHz	LVDS
XFL336425.000000I	Renesas晶振	XTAL OSC XO 425.0000MHZ LVDS SMD	XFL	425 MHz	LVDS
XFL336780.000000I	Renesas晶振	XTAL OSC XO 780.0000MHZ LVDS SMD	XFL	780 MHz	LVDS
XFL326148.351648I	Renesas晶振	XTAL OSC XO 148.351648MHZ LVDS	XFL	148.351648 MHz	LVDS
XFL516135.000000I	Renesas晶振	XTAL OSC XO 135.0000MHZ LVDS SMD	XFL	135 MHz	LVDS
XFL336400.000000I	Renesas晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	XFL	400 MHz	LVDS
XFL316050.000000I	Renesas晶振	XTAL OSC XO 50.0000MHZ LVDS SMD	XFL	50 MHz	LVDS
XFL326148.500000I	Renesas晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	XFL	148.5 MHz	LVDS
XFL336603.229000I	Renesas晶振	XTAL OSC XO 603.2290MHZ LVDS SMD	XFL	603.229 MHz	LVDS
XFL336033.300000I	Renesas晶振	XTAL OSC XO 33.3000MHZ LVDS SMD	XFL	33.3 MHz	LVDS
XFL336380.000000I	Renesas晶振	XTAL OSC XO 380.0000MHZ LVDS SMD	XFL	380 MHz	LVDS
XFL536148.500000I	Renesas晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	XFL	148.5 MHz	LVDS
XFL316080.000000I	Renesas晶振	XTAL OSC XO 80.0000MHZ LVDS SMD	XFL	80 MHz	LVDS
XFL316100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XFL	100 MHz	LVDS
XFL326080.000000I	Renesas晶振	XTAL OSC XO 80.0000MHZ LVDS SMD	XFL	80 MHz	LVDS
XFL316400.000000I	Renesas晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	XFL	400 MHz	LVDS
XFL536025.012500I	Renesas晶振	XTAL OSC XO 25.0125MHZ LVDS SMD	XFL	25.0125 MHz	LVDS
XFL526066.666667I	Renesas晶振	XTAL OSC XO 66.666667MHZ LVDS	XFL	66.666667 MHz	LVDS
XFL516333.333000I	Renesas晶振	XTAL OSC XO 333.3330MHZ LVDS SMD	XFL	333.333 MHz	LVDS
XFL326156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XFL	156.25 MHz	LVDS
XFL336150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	XFL	150 MHz	LVDS
