麥迪康智能家電晶振,T10GC1-19.200MHZ-T,T系列石英諧振器，尺寸3.2x2.5mm，頻率19.2MHZ，歐美石英晶體，美國Mmdcomp晶振，麥迪康小封裝晶振，無源石英晶體，貼片石英晶振，無源晶振，無源貼片晶振，石英貼片晶振，SMD晶振，石英晶體，輕薄型晶振，3225mm石英晶振，綠色環保晶振，平板電腦晶振，智能家電晶振，便攜式設備晶振，可視化電話機晶振，以太網晶振，移動通信晶振，娛樂設備晶振，數字視頻晶振，高性能晶振，高質量晶振，低損耗晶振，低功耗晶振，具有良好的可靠性能以及穩定性能，無源晶體產品非常適合用于平板電腦，智能家電，便攜式設備，可視化電話機，以太網，移動通信，娛樂設備，數字視頻等應用領域。麥迪康智能家電晶振,T10GC1-19.200MHZ-T,T系列石英諧振器.

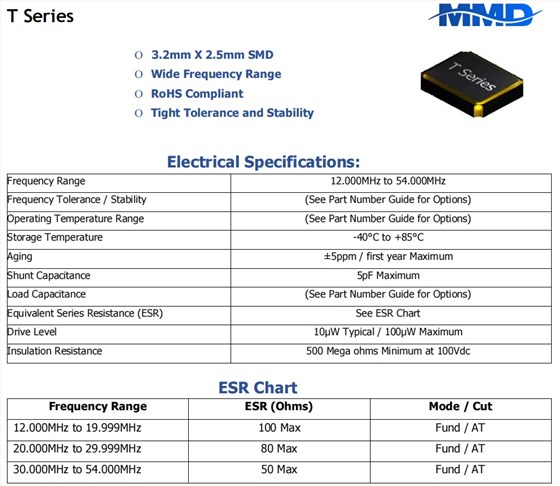

麥迪康智能家電晶振,T10GC1-19.200MHZ-T,T系列石英諧振器 參數表

Frequency Range			19.200MHz

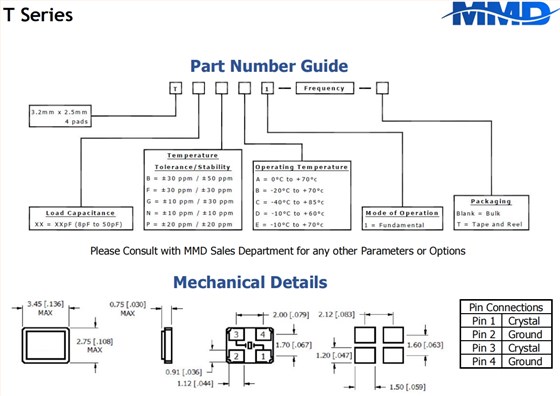

Frequency Tolerance / Stability			(See Part Number Guide for Options)
Operating Temperature Range			(See Part Number Guide for Options)
Storage Temperature			-40°C to +85°C
Aging			±5ppm / first year Maximum
Shunt Capacitance			5pF Maximum
Load Capacitance			(See Part Number Guide for Options)
Equivalent Series Resistance (ESR)			See ESR Chart
Drive Level			10µW Typical / 100µW Maximum
Insulation Resistance			500 Mega ohms Minimum at 100Vdc

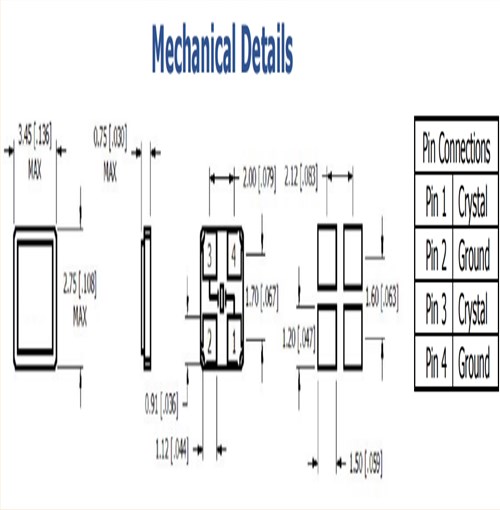

麥迪康智能家電晶振,T10GC1-19.200MHZ-T,T系列石英諧振器 尺寸圖

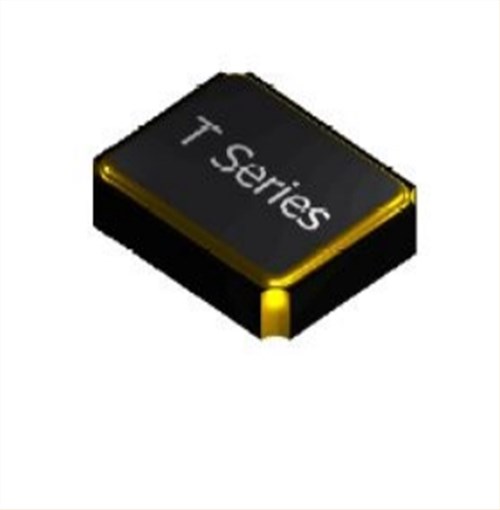

麥迪康智能家電晶振,T10GC1-19.200MHZ-T,T系列石英諧振器

產品特性：

3.2mm X 2.5mm SMD晶振

寬頻率范圍

符合RoHS

精密公差和穩定性

Mfr Part #	Mfr	Description	Series	Frequency	Frequency Stability
DF18CC1-4.9152MHZ-T	麥迪康晶振	CRYSTAL 4.9152MHZ 18PF SMD	D	4.9152 MHz	±30ppm
DF18CC1-28.63636MHZ-T	麥迪康晶振	CRYSTAL 28.63636MHZ 18PF SMD	D	28.63636 MHz	±30ppm
DF18CC1-6.000MHZ-T	麥迪康晶振	CRYSTAL 6.0000MHZ 18PF SMD	D	6 MHz	±30ppm
DF18CC1-5.000MHZ-T	麥迪康晶振	CRYSTAL 5.0000MHZ 18PF SMD	D	5 MHz	±30ppm
DF18CC1-13.500MHZ-T	麥迪康晶振	CRYSTAL 13.5000MHZ 18PF SMD	D	13.5 MHz	±30ppm
DF18CC1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 18PF SMD	D	24 MHz	±30ppm
DF18CC1-11.0592MHZ-T	麥迪康晶振	CRYSTAL 11.0592MHZ 18PF SMD	D	11.0592 MHz	±30ppm
DF18CC1-9.216MHZ-T	麥迪康晶振	CRYSTAL 9.2160MHZ 18PF SMD	D	9.216 MHz	±30ppm
DF18CC1-12.288MHZ-T	麥迪康晶振	CRYSTAL 12.2880MHZ 18PF SMD	D	12.288 MHz	±30ppm
T10GC1-22.1184MHZ-T	麥迪康晶振	CRYSTAL 22.1184MHZ 10PF SMD	T	22.1184 MHz	±30ppm
T10GC1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 10PF SMD	T	24 MHz	±30ppm
T10GC1-19.200MHZ-T	MMDCOMP Crystal	CRYSTAL 19.2000MHZ 10PF SMD	T	19.2 MHz	±30ppm
T10GC1-24.576MHZ-T	麥迪康晶振	CRYSTAL 24.5760MHZ 10PF SMD	T	24.576 MHz	±30ppm
T10GC1-16.000MHZ-T	麥迪康晶振	CRYSTAL 16.0000MHZ 10PF SMD	T	16 MHz	±30ppm
T10GC1-16.384MHZ-T	麥迪康晶振	CRYSTAL 16.3840MHZ 10PF SMD	T	16.384 MHz	±30ppm
T10GC1-48.000MHZ-T	麥迪康晶振	CRYSTAL 48.0000MHZ 10PF SMD	T	48 MHz	±30ppm
X10CB1-16.000MHZ-T	麥迪康晶振	CRYSTAL 16.0000MHZ 10PF SMD	X	16 MHz	±30ppm
X10CB1-16.3676MHZ-T	麥迪康晶振	CRYSTAL 16.3676MHZ 10PF SMD	X	16.3676 MHz	±30ppm
X10CB1-26.000MHZ-T	麥迪康晶振	CRYSTAL 26.0000MHZ 10PF SMD	X	26 MHz	±30ppm
X10CB1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 10PF SMD	X	24 MHz	±30ppm
X10CB1-16.384MHZ-T	麥迪康晶振	CRYSTAL 16.3840MHZ 10PF SMD	X	16.384 MHz	±30ppm
WC26SMFD-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	WC26SM	32.768 kHz	-
DF18CC1-8.000MHZ-T	麥迪康晶振	CRYSTAL 8.0000MHZ 18PF SMD	D	8 MHz	±30ppm
WC38F-32.768KHZ	麥迪康晶振	2 PIN THROUGH HOLE METAL PACKAGE	WC	32.768 kHz	-
WC26F-32.768KHZ	麥迪康晶振	2 PIN THROUGH HOLE METAL PACKAGE	WC	32.768 kHz	-
X10CB1-48.000MHZ-T	麥迪康晶振	CRYSTAL 48.0000MHZ 10PF SMD	X	48 MHz	±30ppm
X10CB1-20.000MHZ-T	麥迪康晶振	CRYSTAL 20.0000MHZ 10PF SMD	X	20 MHz	±30ppm
DF18CC1-25.000MHZ-T	麥迪康晶振	CRYSTAL 25.0000MHZ 18PF SMD	D	25 MHz	±30ppm
T10GC1-18.432MHZ-T	麥迪康晶振	CRYSTAL 18.4320MHZ 10PF SMD	T	18.432 MHz	±30ppm
X10CB1-19.200MHZ-T	麥迪康晶振	CRYSTAL 19.2000MHZ 10PF SMD	X	19.2 MHz	±30ppm
T10GC1-16.3676MHZ-T	麥迪康晶振	CRYSTAL 16.3676MHZ 10PF SMD	T	16.3676 MHz	±30ppm
X10CB1-18.432MHZ-T	麥迪康晶振	CRYSTAL 18.4320MHZ 10PF SMD	X	18.432 MHz	±30ppm
T10GC1-25.000MHZ-T	麥迪康晶振	CRYSTAL 25.0000MHZ 10PF SMD	T	25 MHz	±30ppm
T10GC1-27.000MHZ-T	麥迪康晶振	CRYSTAL 27.0000MHZ 10PF SMD	T	27 MHz	±30ppm
T10GC1-40.000MHZ-T	麥迪康晶振	CRYSTAL 40.0000MHZ 10PF SMD	T	40 MHz	±30ppm
T10GC1-30.000MHZ-T	麥迪康晶振	CRYSTAL 30.0000MHZ 10PF SMD	T	30 MHz	±30ppm
DF18CC1-27.000MHZ-T	麥迪康晶振	CRYSTAL 27.0000MHZ 18PF SMD	D	27 MHz	±30ppm
