產品簡介

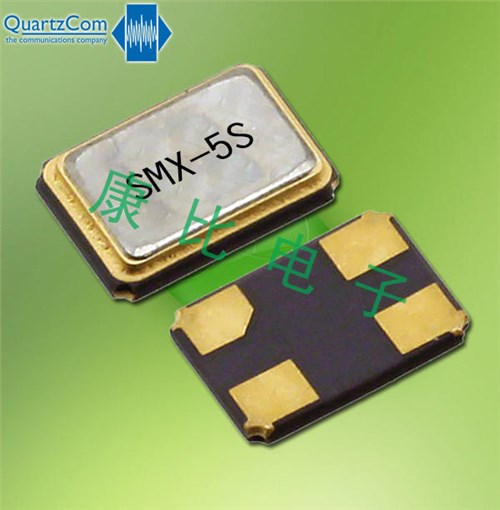

SMX-5S無源晶體 33MHZ醫療晶振 6G無線網絡晶振瑞士石英通晶振，QuartzCom Crystal，QuartzCom無源貼片晶振，石英晶體諧振器，石英貼片晶振，貼片無源晶振，無源SMD晶振，SMD晶振，石英晶體，SMD晶振，水晶振動子，石英貼片晶體，3225石英晶振，高性能貼片晶振，高精度石英晶振，高品質貼片晶振，電信應用晶振，物聯網專用晶振，儀器儀表晶振，航空電子晶振，醫療產品專用晶振，汽車晶振，產品具備高性能的特點.

在極端嚴酷的環境條件下,石英晶振也能正常工作,具有穩定的起振特性,高耐熱性,耐熱循環性和耐振性等.產品很適合用于電信、汽車、醫療、航空電子等領域。SMX-5S無源晶體 33MHZ醫療晶振 6G無線網絡晶振瑞士石英通晶振.

產品詳情

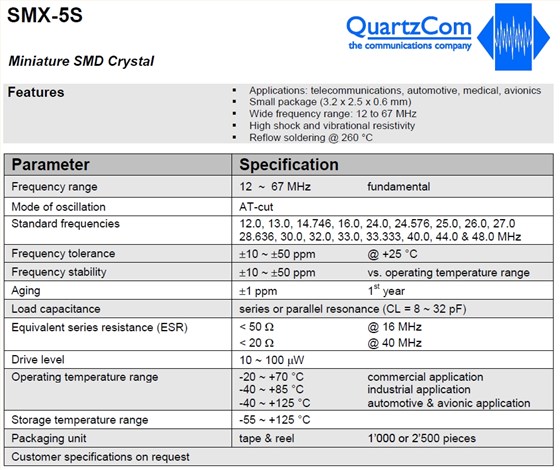

SMX-5S無源晶體 33MHZ醫療晶振 6G無線網絡晶振瑞士石英通晶振 參數表

Parameter	Specification
Frequency range	33 MHzfundamental
Mode of oscillation	AT-cut
Standard frequencies	12.0, 13.0, 14.746, 16.0, 24.0, 24.576, 25.0, 26.0, 27.0 28.636, 30.0, 32.0, 33.0, 33.333, 40.0, 44.0 & 48.0 MHz
Frequency tolerance	土10 ~土50 ppm@ +25 °C
Frequency stability	土10 ~土50 ppmvs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 50Ω < 20Ω	@ 16 MHz @ 40 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 2’500 pieces
Customer specifications on request
