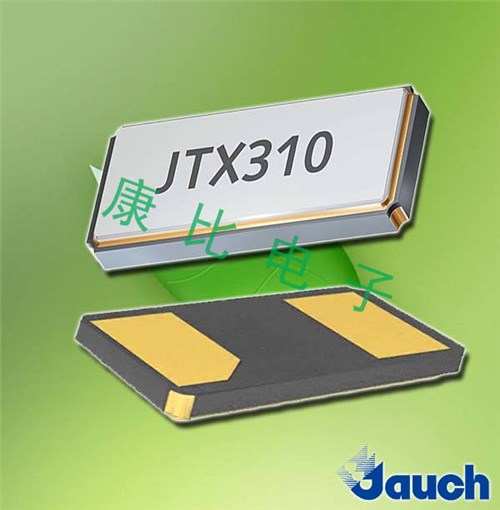

3215mm,Q 0.032768-JTX310-12.5-20-T2-HMR-LF,32.768KHz,Jauch品牌，法國進口晶振，Jauch晶振，型號：JTX310，編碼為：Q 0.032768-JTX310-12.5-20-T2-HMR-LF，頻率：32.768KHz，負載：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+105℃，高機械可靠性，小體積晶振尺寸：3.2x1.5x0.9mm，手表晶體，兩腳貼片晶振，石英晶振，無源晶振，3215晶振，石英晶體諧振器，SMD晶振。具有超小型晶振，輕薄型晶振，高品質晶振，高質量晶振，耐熱及耐環境特點。適用于：可穿戴設備晶振，通信晶振，無線藍牙晶振，鐘表電子晶振，儀器儀表晶振，數字電子晶振，計時器等應用。

3215mm,Q 0.032768-JTX310-12.5-20-T2-HMR-LF,32.768KHz,Jauch品牌，產品特點：

-SMD音叉水晶，

-32.768KHz，音叉晶振
-可選的額外防震版本
-包裝高度最大0.9毫米

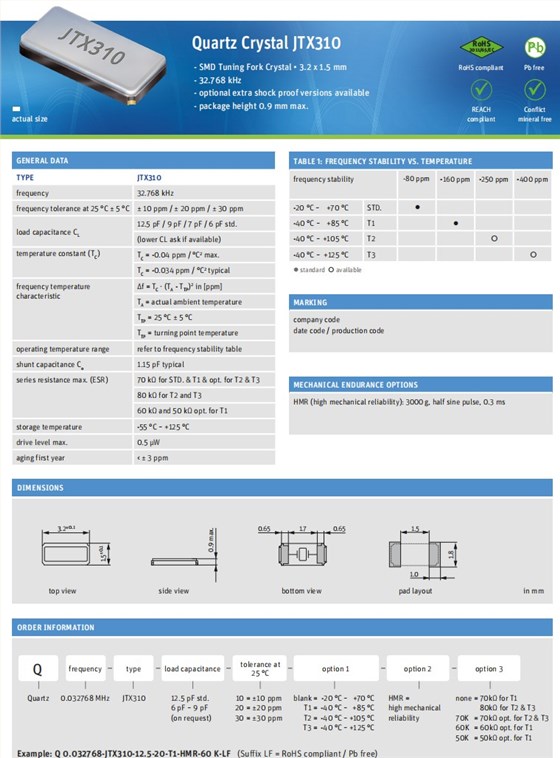

3215mm,Q 0.032768-JTX310-12.5-20-T2-HMR-LF,32.768KHz,Jauch品牌,參數表

TYPE	JTX310
frequency	32.768 kHz
frequency tolerance at 25 °C ± 5 °C	± 10 ppm / ± 20 ppm / ± 30 ppm
load capacitance CL	12.5 pF / 9 pF / 7 pF / 6 pFstd.
load capacitance CL	(lower CL ask if available)
temperature constant (TC)	TC= -0.04 ppm / °C2max.
temperature constant (TC)	TC= -0.034 ppm / °C2typical
frequency temperature characteristic	Δf = TC· (TA- TTP)2in [ppm]
	TA= actual ambient temperature
	TTP= 25 °C ± 5 °C
	TTP= turning point temperature
operating temperature range	refer to frequency stability table
shunt capacitance Co	1.15 pF typical
series resistance max. (ESR)	70 kΩ for STD. & T1 & opt. for T2 & T3
	80 kΩ for T2 and T3
	80 kΩ for T2 and T3
	60 kΩ and 50 kΩ opt. for T1
storage temperature	-55 °C ~ +125 °C
drive level max.	0.5 µW
aging first year	< ± 3 ppm

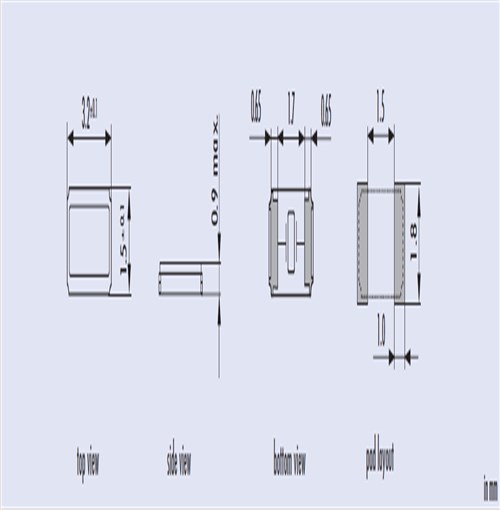

3215mm,Q 0.032768-JTX310-12.5-20-T2-HMR-LF,32.768KHz,Jauch品牌,尺寸圖

晶振編碼	進口晶振	系列	頻率	負載電容	頻率容限
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	9pF	±20ppm
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	7pF	±20ppm
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	9pF	±20ppm
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	7pF	±20ppm
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	9pF	±20ppm
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	7pF	±20ppm
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	6pF	±20ppm
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	6pF	±20ppm
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	9pF	±20ppm
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	6pF	±20ppm
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±10ppm
Q 0.032768-JTX210-12.5-20-T2-LF	石英晶振	JTX210	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±10ppm
Q 0.032768-JTX210-9-20-T2-LF	Jauch晶振	JTX210	32.768kHz	9pF	±20ppm
Q 0.032768-JTX310-12.5-10-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±10ppm
Q 0.032768-JTX310-9-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	9pF	±10ppm
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±10ppm
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±10ppm
Q 0.032768-JTX310-7-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	7pF	±10ppm
Q 0.032768-JTX310-9-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	9pF	±10ppm
Q 0.032768-JTX210-12.5-20-T3-LF	Jauch晶振	JTX210	32.768kHz	12.5pF	±20ppm
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±10ppm
Q 0.032768-JTX210-9-20-T3-LF	Jauch晶振	JTX210	32.768kHz	9pF	±20ppm
Q 0.032768-JTX310-7-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	7pF	±10ppm
Q 0.032768-JTX310-9-10-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	9pF	±10ppm
Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	12.5pF	±10ppm
Q 0.032768-JTX310-7-10-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	7pF	±10ppm
Q 0.032768-JTX310-6-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	6pF	±10ppm
Q 0.032768-JTX310-6-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	6pF	±10ppm
Q 0.032768-JTX310-6-10-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	6pF	±10ppm
