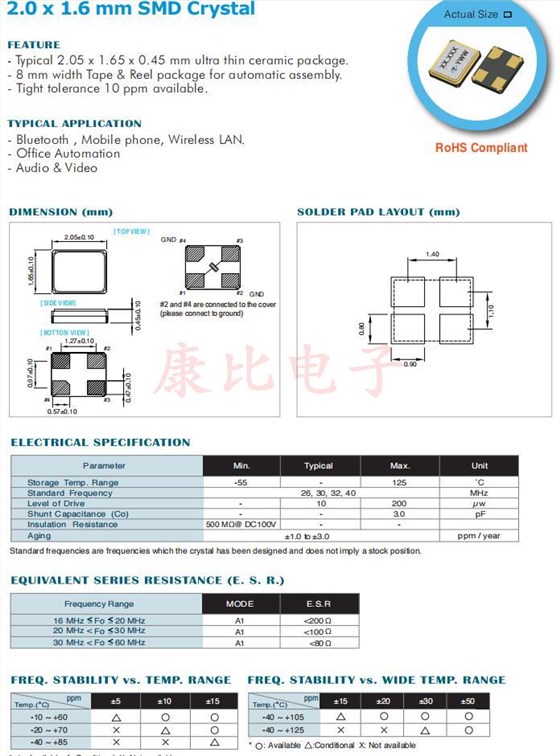

探究無源晶體XZGEECNANF-24.000000是如何貢獻自身價值的呢?泰藝是一家非常優秀的知名元器件制造商，主要通過向廣泛應用程序提供優質的元器件，以滿足不同用戶的需求，旗下匠心制作晶振編碼XZGEECNANF-24.000000是一款小尺寸高質量的無源晶體，隨著泰藝公司深入探究晶振發展歷程發展：每個石英坯都有其基本頻率。除了這個“基音”，每個石英盤還有幾個泛音。當電壓施加在石英上時，石英以其基本音調振蕩。它的泛音也在這個過程中被觸發，但它們的信號明顯弱于基音。事實上，在大多數情況下，泛音信號只會產生正常的相位噪聲。

探究無源晶體XZGEECNANF-24.000000是如何貢獻自身價值的呢?通過振蕩器電路的巧妙構造，可以激勵石英的泛音而不是基音。因此，為了放大石英的泛音信號，在振蕩器電路中增加了一個附加的諧振電路。

這項技術允許工程師從壓電石英晶體中“擠出”遠高于其基頻的頻率。例如，如果石英以20MHz的基音振蕩，第三泛音以60MHz振蕩，第五泛音以100MHz振蕩。由于振蕩器電路的電子特性，泛音只能在奇數整數范圍內被激發。

泛音石英如何振蕩？

剩下的問題是關于泛音石英振蕩的形狀。你可以把泛音振蕩想象成晶體基波振蕩的倍數。

厚度剪切振子在其基音中的振蕩

讓我們拿著厚度剪切振蕩器舉個例子:在電壓下，石英晶振的頂部和底部在基音中向相反的方向移動。但是在泛音中，不僅是石英的上下兩面在振蕩，它內部的分子層也在振蕩。這些層也向相反的方向移動，就像水晶在基礎音調中的頂部和底部一樣。石英不僅在它的外部振動，也可以說“在它自身”振動。

原廠編碼	廠家	型號	系列	頻率	工作溫度
XXEBBCNANF-40.000000	Taitien晶振	XX	MHz Crystal	40MHz	-20°C ~ 70°C
XXCBPLNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXDPBISANF-16.000000	Taitien晶振	XX	MHz Crystal	16MHz	-10°C ~ 60°C
XXHEELNANF-18.432000	Taitien晶振	XX	MHz Crystal	18.432MHz	-40°C ~ 85°C
XXFPPLNANF-32.000000	Taitien晶振	XX	MHz Crystal	32MHz	-40°C ~ 85°C
XXHEELNANF-24.000000	Taitien晶振	XX	MHz Crystal	24MHz	-40°C ~ 85°C
XXCCCLNANF-49.152000	Taitien晶振	XX	MHz Crystal	49.152MHz	-40°C ~ 85°C
XXDBPLNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
X2AEECNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-20°C ~ 70°C
X2AGHINANF-48.000000	Taitien晶振	X2	MHz Crystal	48MHz	-10°C ~ 60°C
X2CGGCSANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-20°C ~ 70°C
X2CGGCSANF-30.000000	Taitien晶振	X2	MHz Crystal	30MHz	-20°C ~ 70°C
X2DCCCNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-20°C ~ 70°C
X2DEECNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-20°C ~ 70°C
X2DEECNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-20°C ~ 70°C
X2FCCLNANF-16.000000	Taitien晶振	X2	MHz Crystal	16MHz	-40°C ~ 85°C
X2FCCLNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-40°C ~ 85°C
X2GCELNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-40°C ~ 85°C
X2GCELNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-40°C ~ 85°C
X2GEECNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-20°C ~ 70°C
X2GEGLNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-40°C ~ 85°C
X2GGGLNANF-12.000000	Taitien晶振	X2	MHz Crystal	12MHz	-40°C ~ 85°C
XXCCCCNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-20°C ~ 70°C
XXCGGLNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXGDDCNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-20°C ~ 70°C
XXGEHHNANF-24.000000	Taitien晶振	XX	MHz Crystal	24MHz	-40°C ~ 125°C
XXHEELNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXPEELNANF-16.000000	Taitien晶振	XX	MHz Crystal	16MHz	-40°C ~ 85°C
XZGEECNANF-24.000000	Taitien晶振	XZ	MHz Crystal	24MHz	-20°C ~ 70°C
XZHBBCNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZLCCCNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-20°C ~ 70°C
XSCEECNANF-8.000000	Taitien晶振	XS	MHz Crystal	8MHz	-20°C ~ 70°C
XSCEGCNANF-10.000000	Taitien晶振	XS	MHz Crystal	10MHz	-20°C ~ 70°C
XSCGGCNANF-24.576000	Taitien晶振	XS	MHz Crystal	24.576MHz	-20°C ~ 70°C
XSDEECNANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-20°C ~ 70°C
XSDEELNANF-12.000000	Taitien晶振	XS	MHz Crystal	12MHz	-40°C ~ 85°C
XSDEELNANF-13.560000	Taitien晶振	XS	MHz Crystal	13.56MHz	-40°C ~ 85°C
XSDEELNANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-40°C ~ 85°C
XSDEGCNANF-16.000000	Taitien晶振	XS	MHz Crystal	16MHz	-20°C ~ 70°C
XSFGGLNANF-20.000000	Taitien晶振	XS	MHz Crystal	20MHz	-40°C ~ 85°C
XSGEECNANF-16.000000	Taitien晶振	XS	MHz Crystal	16MHz	-20°C ~ 70°C
XSGEELNANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-40°C ~ 85°C
XSGEGLNANF-13.000000	Taitien晶振	XS	MHz Crystal	13MHz	-40°C ~ 85°C
XSHEECNANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-20°C ~ 70°C
XSHEELNANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-40°C ~ 85°C
XSHGGLNANF-11.059200	TAITIEN晶振	XS	MHz Crystal	11.0592MHz	-40°C ~ 85°C
XSHGGLNANF-12.000000	Taitien晶振	XS	MHz Crystal	12MHz	-40°C ~ 85°C
XSHGGLNANF-16.000000	Taitien晶振	XS	MHz Crystal	16MHz	-40°C ~ 85°C
XSHGGLNANF-24.000000	Taitien晶振	XS	MHz Crystal	24MHz	-40°C ~ 85°C
XZABBCNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZABPCNANF-40.000000	Taitien晶振	XZ	MHz Crystal	40MHz	-20°C ~ 70°C
XZAPPCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZBBBCNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZBBCCNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZBCCCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZCBBCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZCBBCNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZCEECNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-20°C ~ 70°C
XZDBPCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZIEELNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-40°C ~ 85°C
XZLEFLNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XZDCELNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-40°C ~ 85°C
XZDCELNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XXHCECAANF-26.690000	Taitien晶振	XX	MHz Crystal	26.69MHz	-20°C ~ 70°C
XZCEECAANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-20°C ~ 70°C
XSDEELAANF-12.000000	Taitien晶振	XS	MHz Crystal	12MHz	-40°C ~ 85°C
XSDEELAANF-13.560000	Taitien晶振	XS	MHz Crystal	13.56MHz	-40°C ~ 85°C
XSGEECAANF-16.000000	Taitien晶振	XS	MHz Crystal	16MHz	-20°C ~ 70°C
XSGEELAANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-40°C ~ 85°C
XSHEECAANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-20°C ~ 70°C
XSHEELAANF-25.000000	Taitien晶振	XS	MHz Crystal	25MHz	-40°C ~ 85°C
XXBBBCNANF-32.000000	Taitien	XX	MHz Crystal	32MHz	-20°C ~ 70°C
XXDPPCNANF-27.000000	Taitien	XX	MHz Crystal	27MHz	-20°C ~ 70°C
XZDCELAANF-27.120000	Taitien	XZ	MHz Crystal	27.12MHz	-40°C ~ 85°C
