Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振,Greenray格林雷晶振YH1300系列,歐美進口晶振,編碼為YH1310-N38-5.0-30MHz-E,尺寸36.1 x 26.9mm四腳插件晶振,功率優化石英晶體振蕩器,工作溫度范圍: -40C ~ 85ºC ,石英晶振,插件晶振,石英晶體振蕩器,OSC晶振,歐洲進口晶振,有源晶振,低損耗、低耗能、低電壓、低抖動,供電電壓:12.0: 12.0 VDC,高穩定性晶振,耐高溫晶振,Greenray格林雷工業是一家領先的精密晶體振蕩器,插件晶振,有源晶振,石英晶體振蕩器制造商.幾十年來我們所生產的晶振,石英晶體,石英晶振等產品的設計,測試,包裝都是經過一系列嚴格要求規范操作,我們所生產的有源晶振,貼片晶振,溫補振蕩器都是符合ITAR標準的,我們的質量管理體系認證為ISO:9001標準.有源晶振高頻振蕩器使用IC與晶片設計匹配技術：有源晶振是高頻振蕩器研發及生產過程必須要解決的技術難題,在設計過程中除了要考慮石英晶體諧振器具有的電性外，還有石英晶體振蕩器的電極設計等其它的特殊性，必須考慮石英晶體振蕩器的供應電壓、起動電壓和產品上升時間、下降時間等相關參數。
Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振,參數表

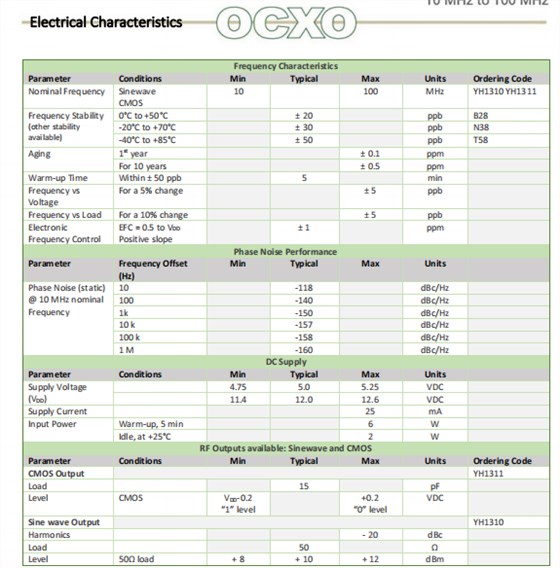

FrequencyCharacteristics
Parameter
Conditions
Min
Typical
Max
Units
OrderingCode
Nominal Frequency
Sinewave
CMOS
10
100
MHz
YH1310 YH1311
Frequency Stability
(other stability
available)
0°C to +50°C
± 20
ppb
B28
-20°C to +70°C
± 30
ppb
N38
-40°C to +85°C
± 50
ppb
T58
Aging
1st year
± 0.1
ppm
For 10 years
± 0.5
ppm
Warm-up Time
Within ± 50 ppb
5
min
Frequency vs
Voltage
For a 5% change
± 5
ppb
Frequency vs Load
For a 10% change
± 5
ppb
Electronic
Frequency Control
EFC = 0.5 to VDD
Positive slope
± 1
ppm
PhaseNoisePerformance
Parameter
FrequencyOffset
(Hz)
Min
Typical
Max
Units
Phase Noise (static)
@ 10 MHz nominal
Frequency
10
--118
dBc/Hz
100
--140
dBc/Hz
1k
--150
dBc/Hz
10 k
--157
dBc/Hz
100 k
--158
dBc/Hz
1 M
--160
dBc/Hz
DCSupply
Parameter
Conditions
Min
Typical
Max
Units
Supply Voltage
(VDD )
4.75
5.0
5.25
VDC
11.4
12.0
12.6
VDC
Supply Current
25
mA
Input Power
Warm-up, 5 min
6
W
Idle, at +25°C
2
W
RFOutputsavailable:SinewaveandCMOS
Parameter
Conditions
Min
Typical
Max
Units
OrderingCode
CMOSOutput
YH1311
Load
15
pF
Level
CMOS
VDD-0.2
“1” level
+0.2
“0” level
VDC
SinewaveOutput
YH1310
Harmonics
- 20
dBc
Load
50
?
Level
50? load
+ 8
+ 10
+ 12
dBm
EnvironmentalandMechanicalSpecifications
Screenings
Screening
Standard
Method,Condition
Description
Vibration
MIL-STD-202
204, Cond A
50 g, 20 to 2,000 Hz, swept sine
Shock
MIL-STD-202
213, Cond C
1,500 g, 0.5 ms half-sine
MIL-STD-810
541, Cond A
RecommendationsandGeneralInformation
Conditions
Parameter
Notes
Operating Temperature
-40°C to +85°C
Storage Temperature
-45°C to +90°C
Terminal Finish
SnPb 63/37 (non-RoHS)
Package Finish
Stainless Steel and Nickel-plated Kovar
Package Weight
14 grams
Soldering Instruction
Hand or reflow soldering
Shipping
Tray package
Marking
Line 1: Greenray logo
Line 2: Model
Line 3: Frequency
Line 4: Serial Number + Data Code (YYWW)

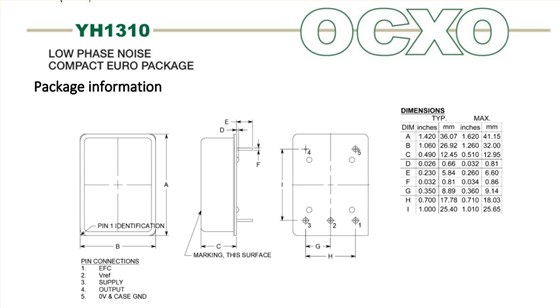

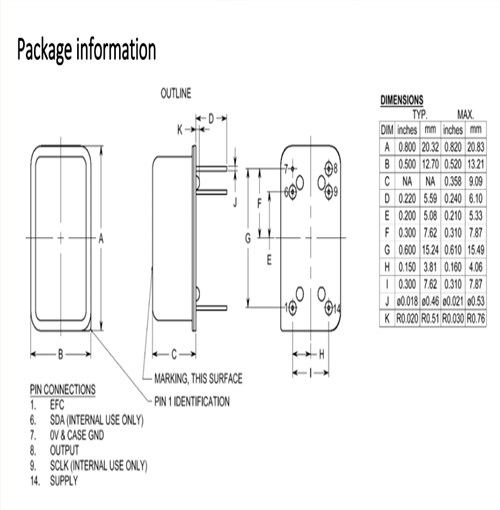

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振，尺寸圖

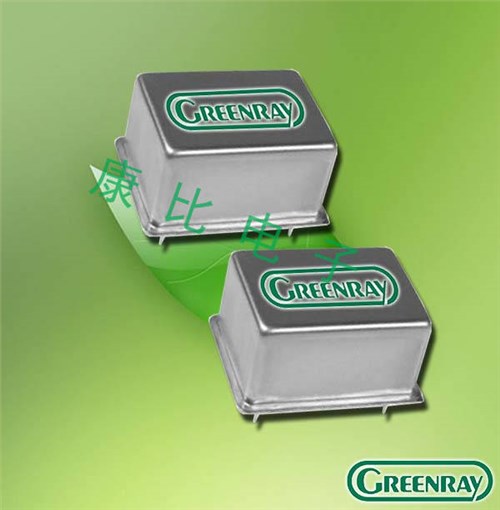

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振

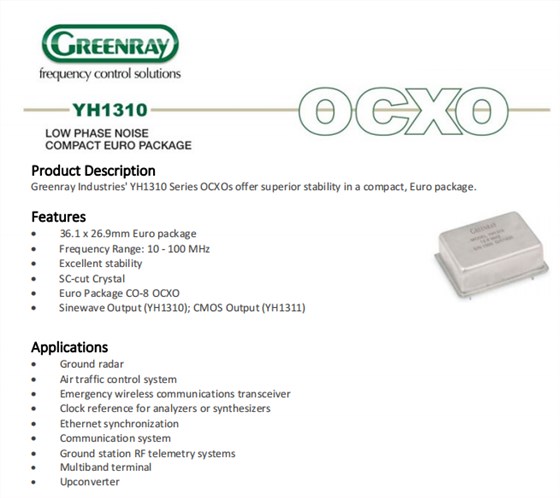

特點：
尺寸36.1 x 26.9mm四腳插件晶振石英晶振
工作溫度范圍-40-85℃歐美進口晶振
高精度、高頻率穩定性、可靠性
優良的耐環境特性，可達工業級溫度
滿足無鉛焊接的回流溫度曲線要求
◆符合RoHS標準，綠色環保
