Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振,Greenray格林雷晶振YH1300系列,歐美進口晶振,編碼為YH1300-T57-5.0-10.0MHz-PB,尺寸20.3 x 12.7四腳插件晶振,功率優化石英晶體振蕩器,工作溫度范圍: -40C ~ 85ºC ,頻率為125KZ~160MHZ,石英晶振,插件晶振,石英晶體振蕩器,OSC晶振,歐洲進口晶振,有源晶振,低損耗、低耗能、低電壓、低抖動,供電電壓:3.3, 5 or 12Vdc,高穩定性晶振,耐高溫晶振,Greenray格林雷工業是一家領先的精密晶體振蕩器,插件晶振,OCXO晶振,有源晶振,石英晶體振蕩器制造商.幾十年來我們所生產的晶振,石英晶體,石英晶振等產品的設計,測試,包裝都是經過一系列嚴格要求規范操作,我們所生產的有源晶振,貼片晶振,溫補振蕩器都是符合ITAR標準的,我們的質量管理體系認證為ISO:9001標準.有源晶振高頻振蕩器使用IC與晶片設計匹配技術：有源晶振是高頻振蕩器研發及生產過程必須要解決的技術難題。在設計過程中除了要考慮石英晶體諧振器具有的電性外，還有石英晶體振蕩器的電極設計等其它的特殊性，必須考慮石英晶體振蕩器的供應電壓、起動電壓和產品上升時間、下降時間等相關參數。

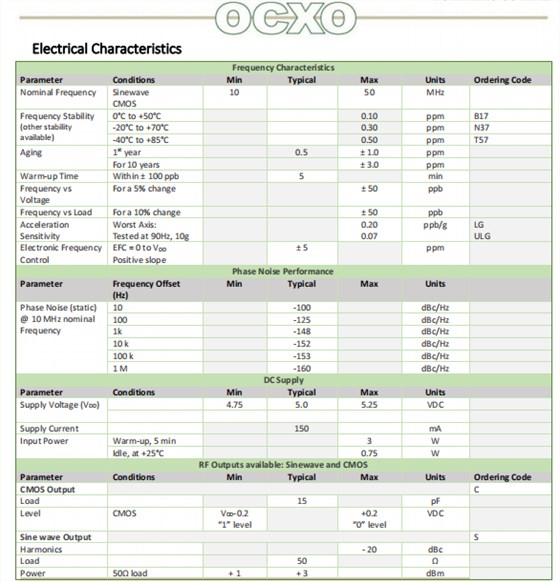

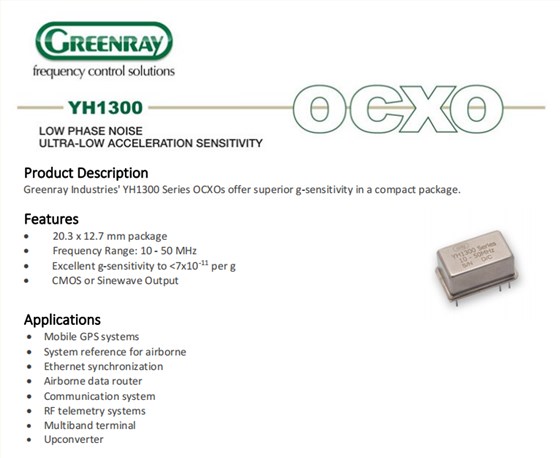

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振,參數表
| FrequencyCharacteristics | |||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||
| Nominal Frequency |
Sinewave CMOS |
10 | 50 | MHz | |||||||||||||
|
Frequency Stability (other stability available) |
0°C to +50°C | 0.10 | ppm | B17 | |||||||||||||
| -20°C to +70°C | 0.30 | ppm | N37 | ||||||||||||||
| -40°C to +85°C | 0.50 | ppm | T57 | ||||||||||||||
| Aging | 1styear | 0.5 | ± 1.0 | ppm | |||||||||||||
| For 10 years | ± 3.0 | ppm | |||||||||||||||
| Warm-up Time | Within ± 100 ppb | 5 | min | ||||||||||||||
|
Frequency vs Voltage |
For a 5% change | ± 50 | ppb | ||||||||||||||
| Frequency vs Load | For a 10% change | ± 50 | ppb | ||||||||||||||
|
Acceleration Sensitivity |
Worst Axis: Tested at 90Hz, 10g |
0.20 0.07 |
ppb/g |
LG ULG |
|||||||||||||
|
Electronic Frequency Control |
EFC = 0 to VDD Positive slope |
± 5 | ppm | ||||||||||||||
| PhaseNoisePerformance | |||||||||||||||||
| Parameter |
FrequencyOffset (Hz) |
Min | Typical | Max | Units | ||||||||||||
|
Phase Noise (static) @ 10 MHz nominal Frequency |
10 | --100 | dBc/Hz | ||||||||||||||
| 100 | --125 | dBc/Hz | |||||||||||||||
| 1k | --148 | dBc/Hz | |||||||||||||||
| 10 k | --152 | dBc/Hz | |||||||||||||||
| 100 k | --153 | dBc/Hz | |||||||||||||||
| 1 M | --160 | dBc/Hz | |||||||||||||||
| DCSupply | |||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | ||||||||||||
| Supply Voltage (VDD) | 4.75 | 5.0 | 5.25 | VDC | |||||||||||||
| Supply Current | 150 | mA | |||||||||||||||
| Input Power | Warm-up, 5 min | 3 | W | ||||||||||||||
| Idle, at +25°C | 0.75 | W | |||||||||||||||
| RFOutputsavailable:SinewaveandCMOS | |||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||
| CMOSOutput | C | ||||||||||||||||
| Load | 15 | pF | |||||||||||||||
| Level | CMOS |
VDD-0.2 “1” level |
+0.2 “0” level |
VDC | |||||||||||||
| SinewaveOutput | S | ||||||||||||||||
| Harmonics | - 20 | dBc | |||||||||||||||
| Load | 50 | ? | |||||||||||||||
| Power | 50? load | + 1 | + 3 | dBm | |||||||||||||
| EnvironmentalandMechanicalSpecifications | |||||||||||||||||
| Ratings | |||||||||||||||||
| Test | Standard | Method,Condition | Description | ||||||||||||||
| Vibration | MIL-STD-202 | 204, Cond A | 10 g, 20 to 2,000 Hz, swept sine | ||||||||||||||
| Shock | MIL-STD-202 | 213, Cond C | 1,500 g, 0.5 ms half-sine | ||||||||||||||
| MIL-STD-810 | 541, Cond A | ||||||||||||||||
| RecommendationsandGeneralInformation | |||||||||||||||||
| Conditions | |||||||||||||||||
| Parameter | Notes | ||||||||||||||||
| Operating Temperature | -40°C to +85°C | ||||||||||||||||
| Storage Temperature | -45°C to +90°C | ||||||||||||||||
| Terminal Finish | See Options below | ||||||||||||||||
| Package Finish | Stainless Steel and Nickel-plated Kovar | ||||||||||||||||
| Package Weight | 14 grams | ||||||||||||||||
| Soldering Instruction | Hand or reflow soldering | ||||||||||||||||
| Shipping | Tray package | ||||||||||||||||
| Marking |
Line 1: Greenray logo Line 2: Model Line 3: Frequency Line 4: Serial Number + Data Code (YYWW) |
||||||||||||||||

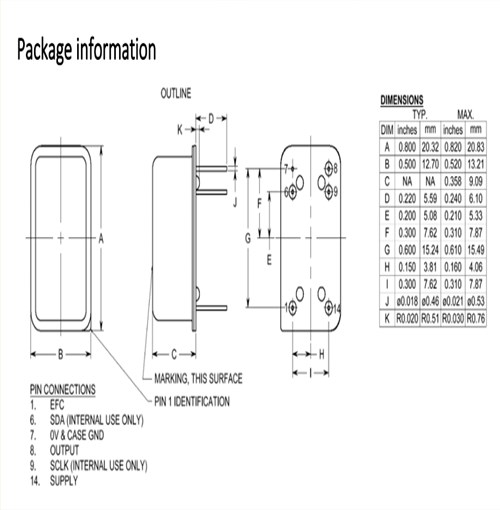

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振，尺寸圖

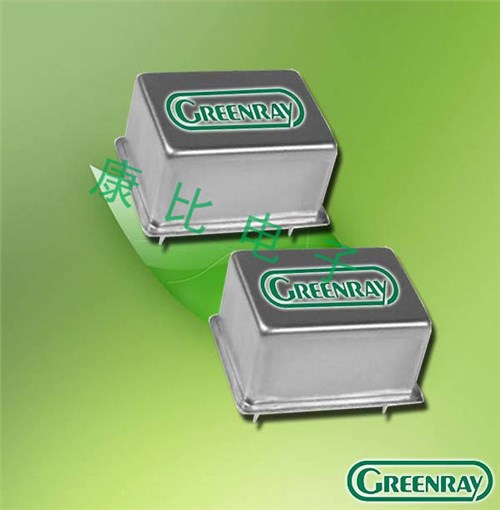

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振
特點：
尺寸20.3 x 12.7四腳插件晶振石英晶振
10 - 50 MHz輸出頻率范圍
工作溫度范圍-40-85℃歐美進口晶振
高精度、高頻率穩定性、可靠性
優良的耐環境特性，可達工業級溫度
滿足無鉛焊接的回流溫度曲線要求
◆符合RoHS標準，綠色環保
