UF324/UF34 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。該系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、小體積晶振尺寸3.2x2.5mm有源晶振，2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振
具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振
JT255CF0026.000000
Diodes Incorporated
SaRonix-eCera™ JT
26MHz
±500ppb
-30°C ~ 85°C
FRBST1061
Diodes Incorporated
SaRonix-eCera™ FR
61.44MHz
±50ppm
-40°C ~ 85°C
JT2551T0039.000000
Diodes Incorporated
SaRonix-eCera™ JT
39MHz
±2.5ppm
-40°C ~ 85°C
JT2551T0039.000000
Diodes Incorporated
SaRonix-eCera™ JT
39MHz
±2.5ppm
-40°C ~ 85°C
JT2551T0039.000000
Diodes Incorporated
SaRonix-eCera™ JT
39MHz
±2.5ppm
-40°C ~ 85°C
KM3270004
Diodes Incorporated
SaRonix-eCera™ KM
32.768kHz
±25ppm
-40°C ~ 85°C
FK2500021
Diodes Incorporated
SaRonix-eCera™ FK
25MHz
±50ppm
-40°C ~ 85°C
FN4000159
Diodes Incorporated
SaRonix-eCera™ FN
40MHz
±50ppm
-40°C ~ 85°C
FK0800003
Diodes Incorporated
SaRonix-eCera™ FK
8MHz
±50ppm
-20°C ~ 70°C
PRBST1122
Diodes Incorporated
SaRonix-eCera™ FR
122.88MHz
±50ppm
-40°C ~ 85°C
PRBST1122
Diodes Incorporated
SaRonix-eCera™ FR
122.88MHz
±50ppm
-40°C ~ 85°C
PRBST1122
Diodes Incorporated
SaRonix-eCera™ FR
122.88MHz
±50ppm
-40°C ~ 85°C
KJ3270001
Diodes Incorporated
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270001
Diodes Incorporated
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270001
Diodes Incorporated
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
FK2500022
Diodes Incorporated
SaRonix-eCera™ FK
25MHz
±50ppm
-40°C ~ 85°C
FK2500022
Diodes Incorporated
SaRonix-eCera™ FK
25MHz
±50ppm
-40°C ~ 85°C
FK5000013
Diodes Incorporated
SaRonix-eCera™ FK
50MHz
±50ppm
-40°C ~ 85°C
FK5000013
Diodes Incorporated
SaRonix-eCera™ FK
50MHz
±50ppm
-40°C ~ 85°C
FD2500050
Diodes Incorporated
SaRonix-eCera™ FD
25MHz
±50ppm
-20°C ~ 70°C
FD2500050
Diodes Incorporated
SaRonix-eCera™ FD
25MHz
±50ppm
-20°C ~ 70°C
FDSAS2062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FDSAS2062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FDSAS2062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FK1200011
Diodes Incorporated
SaRonix-eCera™ FK
12MHz
±50ppm
-40°C ~ 85°C
特征：
超低相位抖動
0.06ps典型值。0.08ps RMS最大值（12kHz至20MHz）
擴展溫度范圍高達125℃耐高溫晶振
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：
網絡系統
光模塊
服務器和存儲系統
專業視頻設備
測試與測量
FPGA/ASIC時鐘生成
112G串行應用
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm | -40°C ~ 85°C |
| FNSAS2075 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 75MHz | ±50ppm | -20°C ~ 70°C |
| FD6250012 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| KN3270028 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KD3270032 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KN3270031 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KD3270042 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KN3270022 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KD3270036 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KN3270032 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KN3270033 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270034 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KX3211B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KX3211C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KX3211E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KX3211G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 70°C |
| KX3213B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KX3213C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KX3213G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 70°C |
| KX3211H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 85°C |
| KD3270043 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KN3270026 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KN3270034 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KD3270012 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KK3270040 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -20°C ~ 70°C |

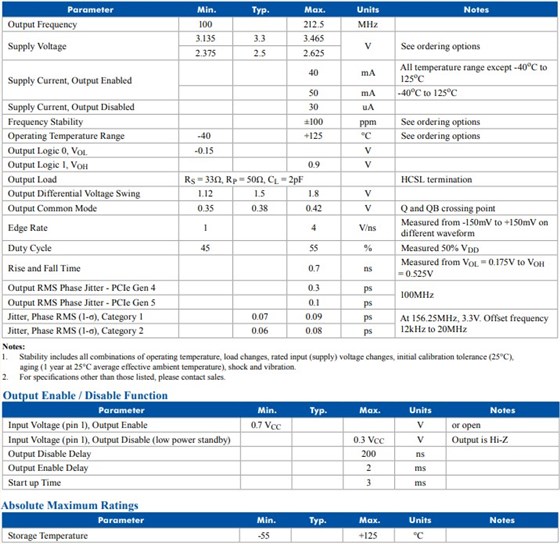

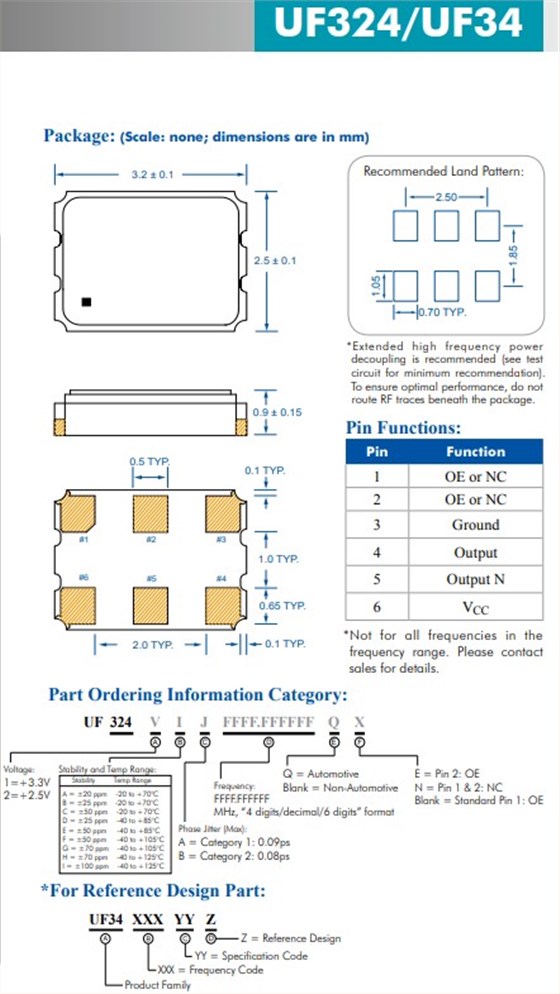

Product Specifications
